4W111 (8925-0) - Generac 4,000 Watt Portable Generator Stator Assembly Parts Diagram

4,000 Watt Portable Generator

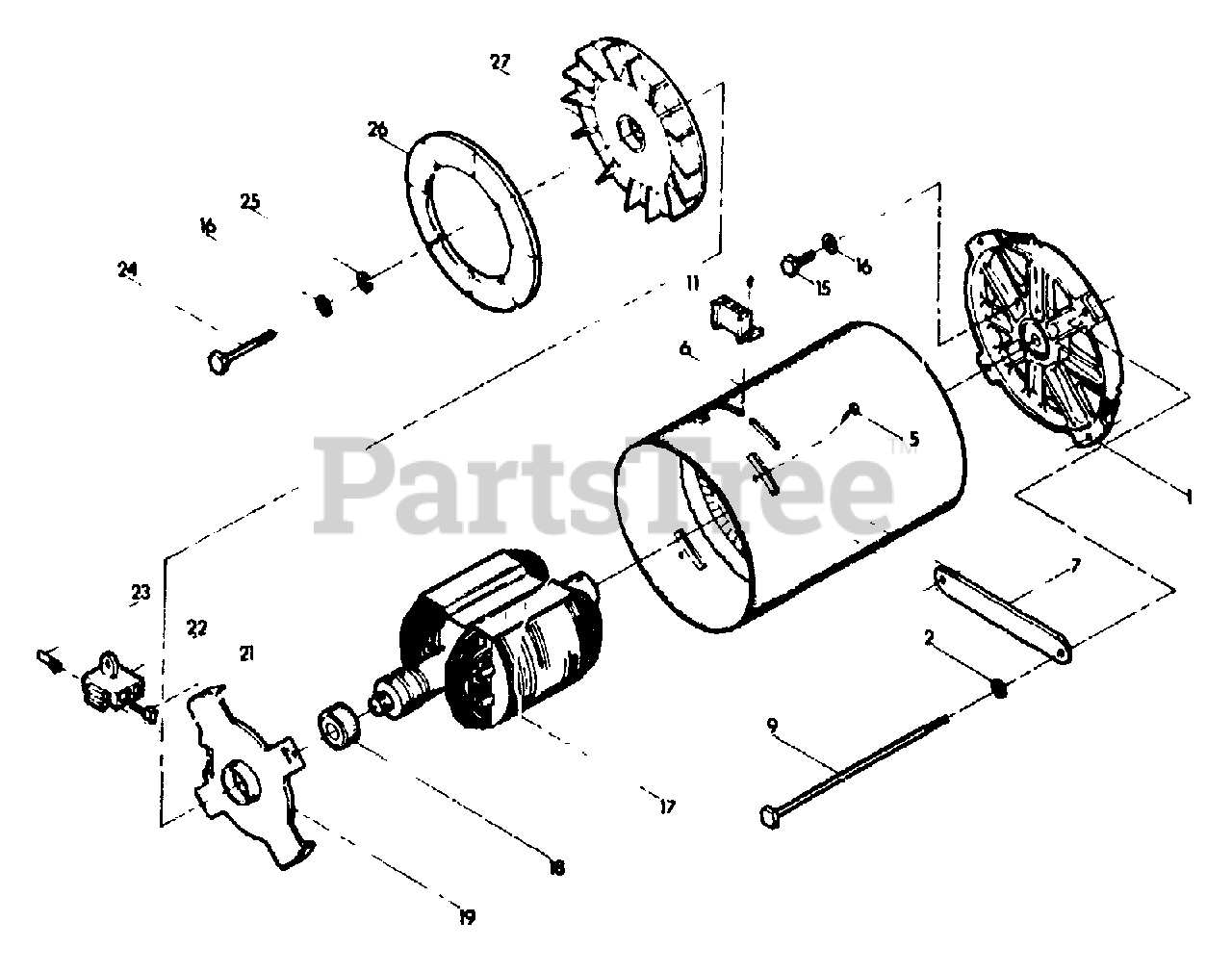

Stator Assembly Parts Diagram

  • Title

1

Briggs & Stratton 43873

Engine adapter housing

$

$

Currently unavailable

2

Briggs & Stratton 22097

1/4" Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 71757

Stator assembly

$

$

Currently unavailable

7

Briggs & Stratton 44338

Stator bolt bar

$

$

Currently unavailable

9

Briggs & Stratton 44395B

Stator bolt

$

$

Currently unavailable

11

Bridge rectifier

Note: Not Used On This Model

$

$

Not available

15

Briggs & Stratton 23152

Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22237

Lockwasher

$

$

Not available

17

Briggs & Stratton 68748

Rotor assembly

$

$

Currently unavailable

18

Briggs & Stratton 24049

Rotor bearing

$

$

Not available

19

Briggs & Stratton 44943

Bearing carrier

$

$

Currently unavailable

21

Briggs & Stratton A24044A

Brush
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 23877D

Brush holder
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 25105

No. 6-32 x 1/4" Screw
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 25254

Rotor bolt
(Superseded to 5025254)

$2.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 50190

Fan Retainer washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 44357

Cooling fan cover
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 44331

Cooling fan

$

$

Not available
