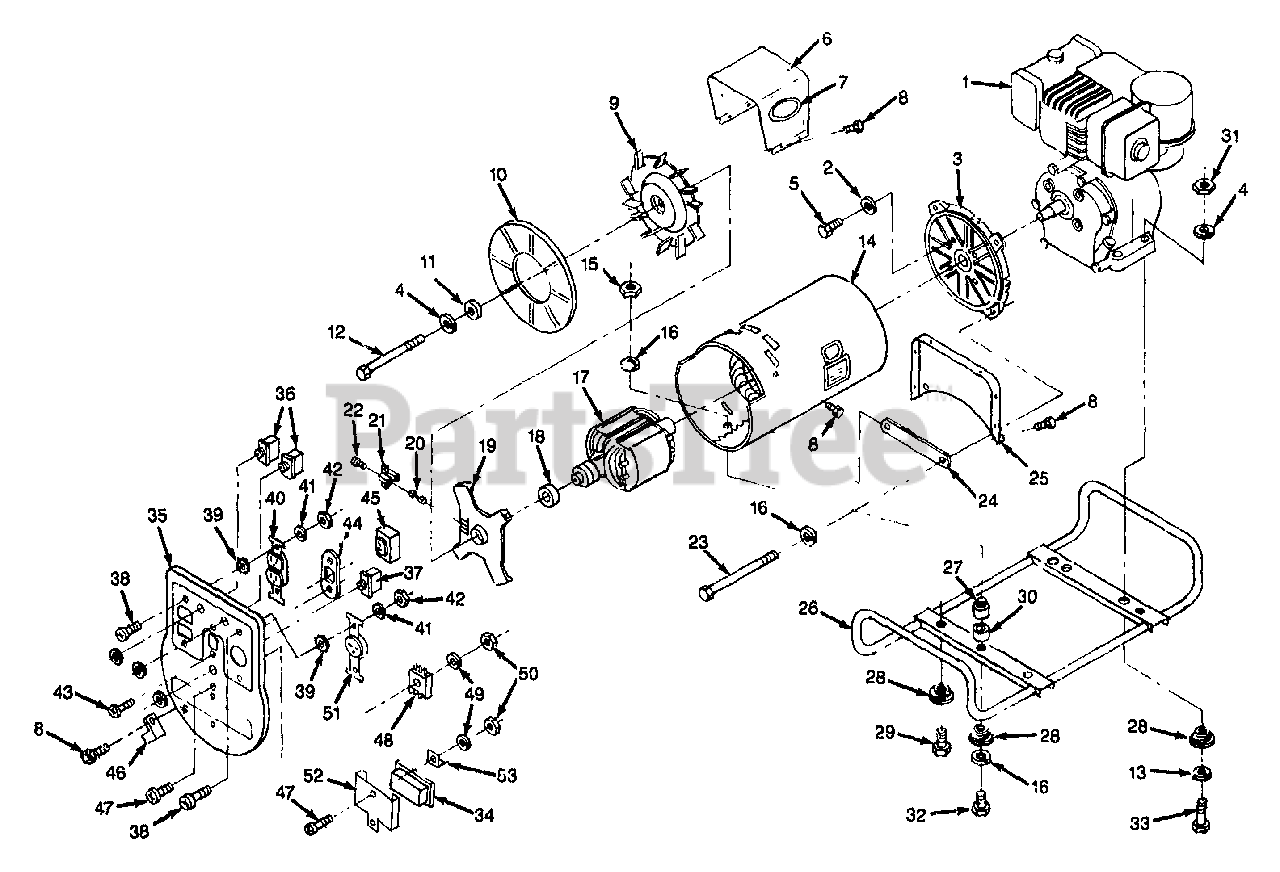

  • Title

1

Engine, Briggs & Stratton 11-HP, Model 252412-0712-01

$

$

Not available

2

Briggs & Stratton 22237

Lockwasher, 3/8"

$

$

Not available

3

Briggs & Stratton 43873

Adapter casting

$

$

Currently unavailable

4

Briggs & Stratton 22129

Lockwasher, 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 23152

Screw, 3/8" - 16 x 3/4" long
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 43875

Panel shroud
(Superseded to 7043875YP)

$110.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 70715

Dayton decal

$

$

Currently unavailable

8

Briggs & Stratton 24489

Screw (Taptite), No. 10-32 x 3/8" long

$

$

Currently unavailable

9

Briggs & Stratton 44331

Cooling fan

$

$

Not available

10

Briggs & Stratton 44357

Cooling fan cover
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 50190

Fan retainer washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 25254

Rotor bolt, 5/16"-24 x 9.87" long
(Superseded to 5025254)

$2.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22145

Flatwasher, 5/16"

$

$

Not available

14

Briggs & Stratton 70726

Stator assembly

$

$

Currently unavailable

15

Briggs & Stratton 22127

Hex nut, 1/4"-20

$

$

Not available

16

Briggs & Stratton 22097

Lockwasher, 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 68794

Rotor assembly

$

$

Currently unavailable

18

Briggs & Stratton 24049

Rotor bearing

$

$

Not available

19

Briggs & Stratton 44943

Bearing carrier

$

$

Currently unavailable

20

Briggs & Stratton A24044A

Brush
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 23877D

Brush holder
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 25105

Screw (Sims), No. 6-32 x 1/4" long
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 44395B

Stator bolt, 1/4"-20 x 11.87" long

$

$

Currently unavailable

24

Briggs & Stratton 44338

Stator bolt bar

$

$

Currently unavailable

25

Briggs & Stratton 43874

Panel shroud back
(Superseded to 7043874YP)

$34.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 68395C

Cradle assembly

$

$

Currently unavailable

27

Briggs & Stratton 40479

Vibration dampener

$

$

Currently unavailable

28

Briggs & Stratton 23594

Spring (plain)

$

$

Currently unavailable

29

Briggs & Stratton 24910

Screw (Taptite), 5/16"-18 x 1/2" long

$

$

Not available

30

Briggs & Stratton 50396

Spacer, 1/2" long

$

$

Currently unavailable

31

Briggs & Stratton 22259

Hex nut, 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 36955

Screw, 1/4"-20 x 1 1/4" long
(Superseded to 36955GS)

$1.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 22531

Screw, 5/16"-18 x 1 3/4" long
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67107

Voltage regulator
(Superseded to 67107GS)

$302.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 70732A

Receptacle panel (silkscreened)

$

$

Currently unavailable

36

Briggs & Stratton 66819

Circuit breaker, 20 amp

$

$

Currently unavailable

37

Briggs & Stratton 66820

Circuit breaker, 10 amp

$

$

Not available

38

Briggs & Stratton 36935

Screw, No. 10-32 x 3/4"

$

$

Not available

39

Briggs & Stratton 22769

Washer (Shakeproof), No. 10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 68759

Receptacle (Duplex), 120VAC. 20 amp
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

41

Briggs & Stratton 22152

Lockwasher, No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 22158

Hex nut, No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 70728

Screw, M3-0.050 x 5mm long

$

$

Currently unavailable

44

Briggs & Stratton 66822

Receptacle retainer
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 66821

Receptacle, 10 amperes at 12VDC
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 25433

Grounding lug

$

$

Not available

47

Briggs & Stratton 36917

Screw, No. 8-32 x 3/8" long
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

49

Briggs & Stratton 22264

Lockwasher, No. 8

$

$

Not available

50

Briggs & Stratton 22471

Hex nut, No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 68867

Receptacle, 120/240 VAC, 20 amp
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 68795

Voltage regulator bracket

$

$

Not available

53

Briggs & Stratton 68796

Voltage regulator holddown

$

$

Currently unavailable

Briggs & Stratton 65787

Battery charge cable

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 71744

Connector plug, 240 volts, 20 ampere

Note: (for Ref. No. 51)

$

$

Not available
