4Q78HUA - MTD 679cc Engine 4Q78HUA General Assembly Parts Diagram

679cc Engine

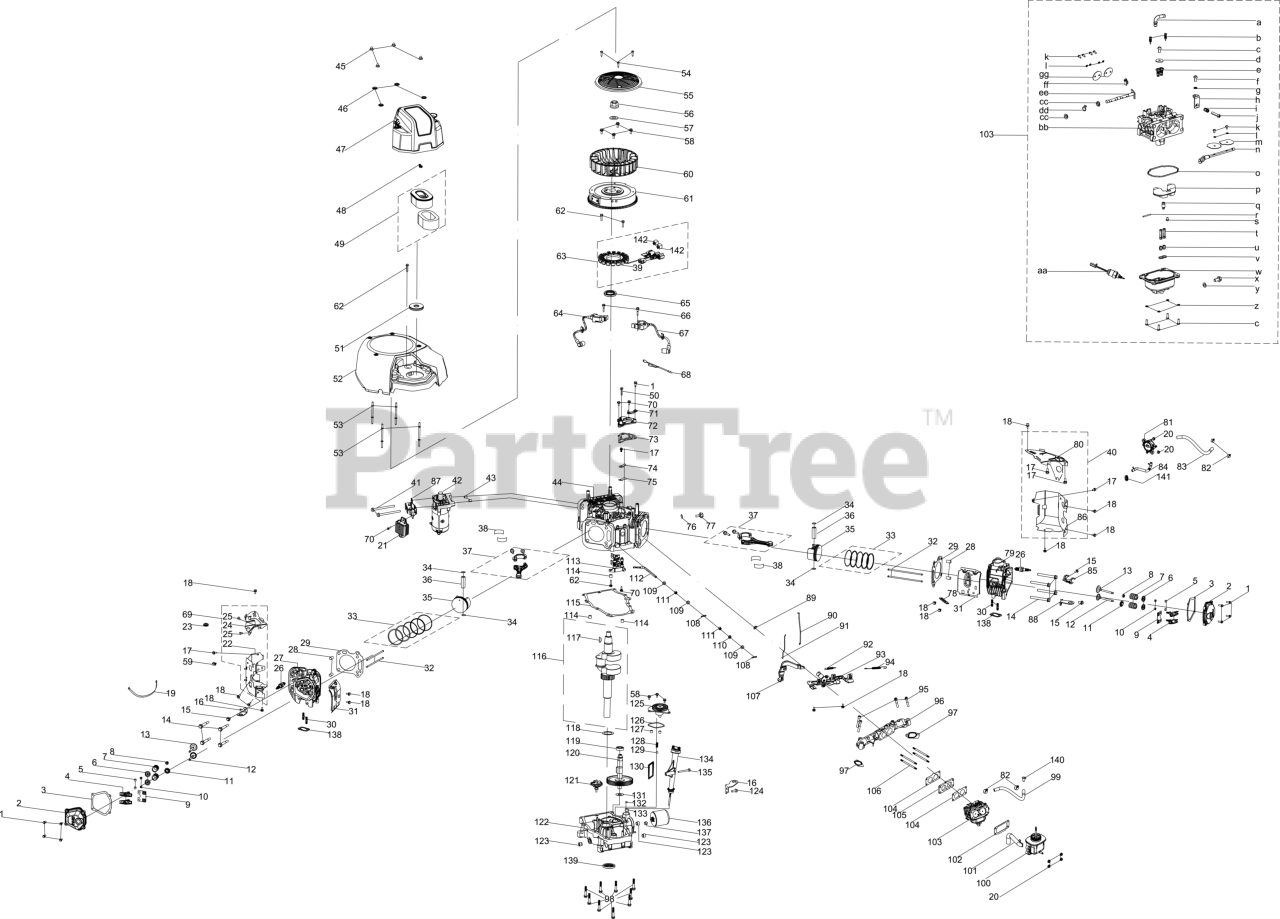

4Q78HUA General Assembly Parts Diagram

  • Title

1

MTD 710-06292

BOLT M6 x 22

$5.49

$

Usually ships in 3-6 days

0

2

MTD 951-15352

VALVE COVER

$19.99

$

Usually ships in 3-6 days

0

3

MTD 951-15576

VALVE COVER GASKET

$9.99

$

In Stock, only 2 left!

0

4

MTD 951-11981A

ROCKER ARM ASSEMBLY

$40.99

$

In Stock, only 1 left!

0

5

MTD 951-12269

EXHAUST VALVE ADJUSTER

$6.49

$

In Stock, Qty 6

0

6

MTD 951-14911A

VALVE SPRING SEAT

$5.49

$

Usually ships in 3-6 days

0

7

MTD 951-15356

VALVE SPRING

$5.99

$

Usually ships in 3-6 days

0

8

MTD 951-11964A

INTAKE VALVE SEAL

$11.99

$

In Stock, only 1 left!

0

9

MTD 951-11965B

PUSH ROD GUIDE

$6.99

$

Usually ships in 3-6 days

0

10

MTD 951-14912A

VALVE CAP

$3.49

$

In Stock, only 2 left!

0

11

MTD 951-12077A

VALVE SPRING RETAINER

$3.99

$

In Stock, only 1 left!

0

12

MTD 951-15374

EXHAUST VALVE

$24.99

$

Usually ships in 3-6 days

0

13

MTD 951-15373

INTAKE VALVE

$21.99

$

Usually ships in 3-6 days

0

14

MTD 710-06507

HEX HEAD BOLT - M10X1.25X87

$7.49

$

Usually ships in 3-6 days

0

15

MTD 710-06593

HEX HEAD BOLT M8X16

$3.99

$

Usually ships in 3-6 days

0

16

MTD 907-06699

LIFT HOOK BRACKET - LH

$13.99

$

Usually ships in 3-6 days

0

17

MTD 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

18

MTD 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 19

0

19

MTD 725-06031A

CABLE TIE 3x150

$2.49

$

Usually ships in 3-6 days

0

20

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

21

MTD 925-06299

REGULATOR

$39.99

$

In Stock, only 4 left!

0

22

MTD 907-07190

CYLINDER HEAD BAFFLE

$17.99

$

Usually ships in 3-6 days

0

23

MTD 931-13497

HEAT SHIELD GROMMET

$5.49

$

Usually ships in 3-6 days

0

24

MTD 907-06783

FLYWHEEL SHROUD - LH

$11.99

$

Usually ships in 3-6 days

0

25

MTD 710-06604

HEX HEAD SCREW M6X10

$3.99

$

Usually ships in 3-6 days

0

26

MTD 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

27

MTD 951-15804

CYLINDER HEAD - LH

$259.99

$

Usually ships in 3-6 days

0

28

MTD 715-04097A

DOWEL PIN 12x20

$5.49

$

Usually ships in 3-6 days

0

29

MTD 921-04967

CYLINDER HEAD GASKET

$14.99

$

In Stock, only 1 left!

0

30

MTD 710-04911

STUD M8 x 36

$4.49

$

Usually ships in 3-6 days

0

31

MTD 951-15922

SHROUD

$10.99

$

Usually ships in 3-6 days

0

32

MTD 951-15355

PUSH ROD

$6.99

$

In Stock, only 2 left!

0

33

MTD 951-05422

PISTON RIN SET

$27.99

$

In Stock, only 1 left!

0

34

MTD 951-11632A

PISTON PIN SNAP RING

$4.49

$

Usually ships in 3-6 days

0

35

MTD 951-15385

PISTON ASSEMBLY

$45.99

$

Usually ships in 3-6 days

0

36

MTD 911-06733

PISTON PIN

$6.99

$

Usually ships in 3-6 days

0

37

MTD 951-05376

CONNECTING ROD

$124.99

$

Usually ships in 3-6 days

0

38

MTD 951-15587

CONNETING ROS BEARING

$14.99

$

In Stock, only 1 left!

0

39

MTD 751P18648

CHARGING COIL

$62.99

$

Usually ships in 3-6 days

0

40

MTD 651P06696

SHROUD ASSEMBLY (RH)

$19.99

$

Usually ships in 3-6 days

0

41

MTD 710-06522

HEX HEAD BOLT M8X110

$4.99

$

Usually ships in 3-6 days

0

42

MTD 751P21448

STARTER MOTOR

$314.99

$

Usually ships in 3-6 days

0

43

MTD 915-05026

DOWEL PIN

$5.49

$

Usually ships in 3-6 days

0

44

MTD 951-15865A

CRANKCASE

$689.99

$

Usually ships in 3-6 days

0

45

MTD 712-04276A

ACORN NUT M6-1

$6.49

$

In Stock, Qty 12

0

46

MTD 736-05109

WASHER

$6.49

$

Usually ships in 3-6 days

0

47

MTD 931-05665

AIR FILTER COVER ASSEMBLY

$49.99

$

Usually ships in 3-6 days

0

48

MTD 712-05227

WING NUT

$4.99

$

Usually ships in 3-6 days

0

49

MTD 937-05145

AIR FILTER ELEMENT

$29.99

$

In Stock, only 1 left!

0

50

MTD 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

51

MTD 951-15444

SEAL

$6.49

$

Usually ships in 3-6 days

0

52

MTD 931-05664

BLOWER HOUSING

$76.99

$

Usually ships in 3-6 days

0

53

MTD 710-06496

STUD - M6-1.0X69.8X117

$6.99

$

Usually ships in 3-6 days

0

54

MTD 710-05303

BOLT 5.5 x 25

$3.99

$

In Stock, only 3 left!

0

55

MTD 951-12205

DEBRIS SHIELD

$9.99

$

In Stock, Qty 7

0

56

MTD 912-05102

NUT M20 x 1.5

$8.49

$

Usually ships in 3-6 days

0

57

MTD 936-05110

WASHER 20.5 x 5 x 40

$6.49

$

Usually ships in 3-6 days

0

58

MTD 710-05003

BOLT M6-1 x 18 GR8.8

$4.49

$

In Stock, only 4 left!

0

59

MTD 931-10630A

WIRE SUPPORT CLAMP

$5.49

$

Usually ships in 3-6 days

0

60

MTD 751P21449

COOLING FAN

$21.99

$

Usually ships in 3-6 days

0

61

MTD 951-16066

FLYWHEEL

$294.99

$

Usually ships in 3-6 days

0

62

MTD 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

63

MTD 651P06695

CHARGING COIL

$114.99

$

Usually ships in 3-6 days

0

64

MTD 951-15868

IGNITION MODULE (LH)

$88.99

$

Usually ships in 3-6 days

0

65

MTD 937-05067

OIL SEAL 38 x 58 x 8

$15.99

$

In Stock, only 3 left!

0

66

MTD 710-04969

BOLT-M6-1 x 30 GR8.8

$4.49

$

In Stock, Qty 13

0

67

MTD 951-15869

IGNITION MODULE (RH)

$88.99

$

In Stock, only 2 left!

0

68

MTD 925-07545

WIRE HARNESS

$11.99

$

Usually ships in 3-6 days

0

69

MTD 651P06615

SHROUD ASSEMBLY (LH)

$16.99

$

Usually ships in 3-6 days

0

70

MTD 710-04968

BOLT M6 x 16

$6.99

$

In Stock, only 3 left!

0

71

MTD 751P18654

FLYWHEEL GUARD BRACKET

$6.49

$

Usually ships in 3-6 days

0

72

MTD 951-15810

BEATHER COVER

$18.99

$

Usually ships in 3-6 days

0

73

MTD 951-15811

BREATHER COVER GASKET

$9.99

$

Usually ships in 3-6 days

0

74

MTD 951-15399

BREATHER REED BRACKET

$6.49

$

Usually ships in 3-6 days

0

75

MTD 951-15398

BREATHER REED ASSEMBLY

$5.99

$

Usually ships in 3-6 days

0

76

MTD 736-05221

WASHER 20.5X1.5X18

$4.49

$

Usually ships in 3-6 days

0

77

MTD 710-06607

HEX HEAD BOLT M10X1X10

$4.49

$

Usually ships in 3-6 days

0

78

MTD 951-15889

CLIP

$5.49

$

Usually ships in 3-6 days

0

79

MTD 951-15805

CYLINDER HEAD - RH

$259.99

$

Usually ships in 3-6 days

0

80

MTD 951-15871

SHROUD (RH)

$16.99

$

Usually ships in 3-6 days

0

81

MTD 951-15872

FUEL PUMP

$

$

Not available

82

MTD 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

In Stock, Qty 12

0

83

MTD 735-05053A

FUEL HOSE

$10.99

$

In Stock, only 1 left!

0

84

MTD 935-05273

FUEL LINE

$11.99

$

Usually ships in 3-6 days

0

85

MTD 951-15460

MOUNTING BRACKET

$7.49

$

Usually ships in 3-6 days

0

86

MTD 951-15873

CYLINDER HEAD BAFFLE

$16.99

$

Usually ships in 3-6 days

0

87

MTD 951-15890

STARTER RELAY SUPPORT

$19.99

$

In Stock, only 1 left!

0

88

MTD 907-06675

REAR LIFT BRACKET

$6.49

$

Usually ships in 3-6 days

0

89

MTD 931-13505

CHOKE LINKAGE LOCK CLAMP

$4.99

$

Usually ships in 3-6 days

0

90

MTD 951-15874

THROTTLE LINKAGE

$7.49

$

Usually ships in 3-6 days

0

91

MTD 951-15875

CHOKE LEVER

$5.99

$

Usually ships in 3-6 days

0

92

MTD 932-05617

GOVERNOR SPRING

$6.49

$

Usually ships in 3-6 days

0

93

MTD 951-05586

GOVERNOR GEAR BRACKET ASSEMBLY

Note: 1

$29.99

$

Usually ships in 3-6 days

0

94

MTD 932-05618

GOVERNOR SPRING

$6.49

$

Usually ships in 3-6 days

0

95

MTD 710-06505

SCREW - M8X50

$5.99

$

Usually ships in 3-6 days

0

96

MTD 919-05266

INTAKE MANIFOLD

$135.99

$

Usually ships in 3-6 days

0

97

MTD 921-04914

INTAKE MANIFOLD GASKET 9Q78

$9.99

$

Usually ships in 3-6 days

0

98

MTD 710-06501

HEX HEAD FLANGE BOLT M8X48

$5.99

$

Usually ships in 3-6 days

0

99

MTD 951-15877

FUEL LINE 6.3 x 12.5 x 470

$48.99

$

Usually ships in 3-6 days

0

100

MTD 931-05667

INTAKE MANIFOLD

$49.99

$

Usually ships in 3-6 days

0

101

MTD 951-15878

BREATHER HOSE

$9.99

$

Usually ships in 3-6 days

0

102

MTD 921-04990

AIR FILTER HOUSING GASKET

$7.99

$

Usually ships in 3-6 days

0

103

MTD 951-05588A

CARBURETOR

$277.99

$

Usually ships in 3-6 days

0

104

MTD 921-04991

CARBURETOR GASKET

$7.99

$

Usually ships in 3-6 days

0

105

MTD 751-15879

INSULATOR
(Superseded to 951-15879)

$10.99

$

Usually ships in 3-6 days

0

106

MTD 710-04910

STUD M6-1 x 105

$6.49

$

In Stock, Qty 7

0

107

MTD 951-15880

GOVERNOR LEVER

$13.99

$

Usually ships in 3-6 days

0

108

MTD 714-04077

GOVERNOR SHAFT CLIP

$6.49

$

In Stock, only 1 left!

0

109

MTD 736-05188

FLAT WASHER 8.5X15.8X2

$3.49

$

Usually ships in 3-6 days

0

110

MTD 951-12388

GOVERNOR SEAL

$4.49

$

Usually ships in 3-6 days

0

111

MTD 941-05216

NEEDLE BEARING 8X12X10

$9.49

$

Usually ships in 3-6 days

0

112

MTD 951-15403

GOVERNOR ARM ROD

$13.99

$

Usually ships in 3-6 days

0

113

MTD 951-15384

ROACKER ARM

$90.99

$

Usually ships in 3-6 days

0

114

MTD 715-05064

PIN 8X12

$3.99

$

Usually ships in 3-6 days

0

115

MTD 921-04887

CRANKCASE GASKET

$23.99

$

In Stock, only 1 left!

0

116

MTD 951-15366

CRANKSHAFT ASSEMBLY

$429.99

$

Usually ships in 3-6 days

0

117

MTD 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 9

0

118

MTD 736-05187

WASHER - 38.5X1.0X54

$4.49

$

Usually ships in 3-6 days

0

119

MTD 941-05213

CAMSHAFT BEARING

$11.99

$

Usually ships in 3-6 days

0

120

MTD 951-15375

CAMSHAFT ASSEMBLY

$179.99

$

Usually ships in 3-6 days

0

121

MTD 951-05589

GOVERNOR GEAR

$18.99

$

Usually ships in 3-6 days

0

122

MTD 951-15360

CRANKCASE COVER

$99.99

$

Usually ships in 3-6 days

0

123

MTD 951-11644

ENGINE PLUG 3/8 NPT

$10.99

$

In Stock, Qty 5

0

124

MTD 710-06506

HEX HEAD SCREW M8X16

$4.99

$

Usually ships in 3-6 days

0

125

MTD 951-05449

OIL PUMP ASSEMBLY

$78.99

$

Usually ships in 3-6 days

0

126

MTD 921-04916

OIL PUMP GASKET

$6.49

$

Usually ships in 3-6 days

0

127

MTD 715-04088A

DOWEL PIN

$3.49

$

Usually ships in 3-6 days

0

128

MTD 932-05534

OIL PUMP SPRING

$5.49

$

Usually ships in 3-6 days

0

129

MTD 951-15588

OIL PUMP STEEL BALL

$3.99

$

Usually ships in 3-6 days

0

130

MTD 951-15383

OIL PUMP SCREEN

$11.99

$

Usually ships in 3-6 days

0

131

MTD 736-05199

THRUST WASHER 17.4X25.9X1.0

$4.49

$

Usually ships in 3-6 days

0

132

MTD 951-15589

O-RING 13.2X2.65

$3.99

$

In Stock, only 1 left!

0

133

MTD 951-15590

CRANKCASE OIL PASSAGE PIN

$3.99

$

Usually ships in 3-6 days

0

134

MTD 951-05450B

DIPSTICK

$33.99

$

Usually ships in 3-6 days

0

135

MTD 710-05234

SCREW M6-1:50:CL5.

$5.99

$

Usually ships in 3-6 days

0

136

MTD 951-12690

ENGINE OIL FILTER

$17.99

$

In Stock, Qty 20+

0

137

MTD 951-12253

SCREW JOINT OIL FILTER ADAPTER

$7.99

$

Usually ships in 3-6 days

0

138

MTD 921-04936

EXHAUST GASKET

$7.99

$

Usually ships in 3-6 days

0

139

MTD 937-05190

OIL SEAL 38 x 58 x 8

$18.99

$

Usually ships in 3-6 days

0

140

MTD 951-14091A

PLUG

$3.49

$

Usually ships in 3-6 days

0

141

MTD 731P18651

GROMMET

$1.49

$

Usually ships in 3-6 days

0

142

MTD 725P08065

RELAY

$19.99

$

Usually ships in 3-6 days

0

a

Fuel Nipple

$

$

Not available

aa

Solenoid Valve

$

$

Not available

b

MTD 793P00129A

IDLE MIXTURE SCREW

$2.99

$

Usually ships in 3-6 days

0

bb

Carburetor Body

$

$

Not available

c

Screw, M4x12

$

$

Not available

cc

Throttle Shaft Sleeve

$

$

Not available

d

Idle Jet Board

$

$

Not available

dd

Throttle Shaft Spring

$

$

Not available

e

Idle Jet

$

$

Not available

ee

Throttle Shaft

$

$

Not available

f

Screw, M5x10

$

$

Not available

ff

Throttle Cable Joint

$

$

Not available

g

Screw

$

$

Not available

g

Washer,5

$

$

Not available

gg

Throttle Plate

$

$

Not available

h

Idle Adjusting Screw Base

$

$

Not available

i

Spring

$

$

Not available

k

Bolt, M3x6

$

$

Not available

l

MTD 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

m

Choke Plate

$

$

Not available

n

Choke Shaft

$

$

Not available

o

O-Ring, Float Bowl

$

$

Not available

p

Float

$

$

Not available

q

Needle Valve

$

$

Not available

r

Float Pin

$

$

Not available

s

Screw, M4x6

$

$

Not available

t

Nozzle Tube

$

$

Not available

u

Main Jet

$

$

Not available

v

Seal

$

$

Not available

w

MTD 951-15914

FLOAT BOWL

$18.99

$

Usually ships in 3-6 days

0

x

MTD 910-06752

DRAIN BOLT

$5.49

$

Usually ships in 3-6 days

0

y

MTD 951-11349A

FUEL DRAIN PLUG GASKET

$4.49

$

In Stock, Qty 20+

0

z

Washer,4

$

$

Not available

MTD 752Z4Q78HUA

COMPLETE ENGINE 679cc

$

$

Currently unavailable
