4P90MUA - Troy-Bilt Engine 4P90MUA Cylinder Head Parts Diagram

Engine

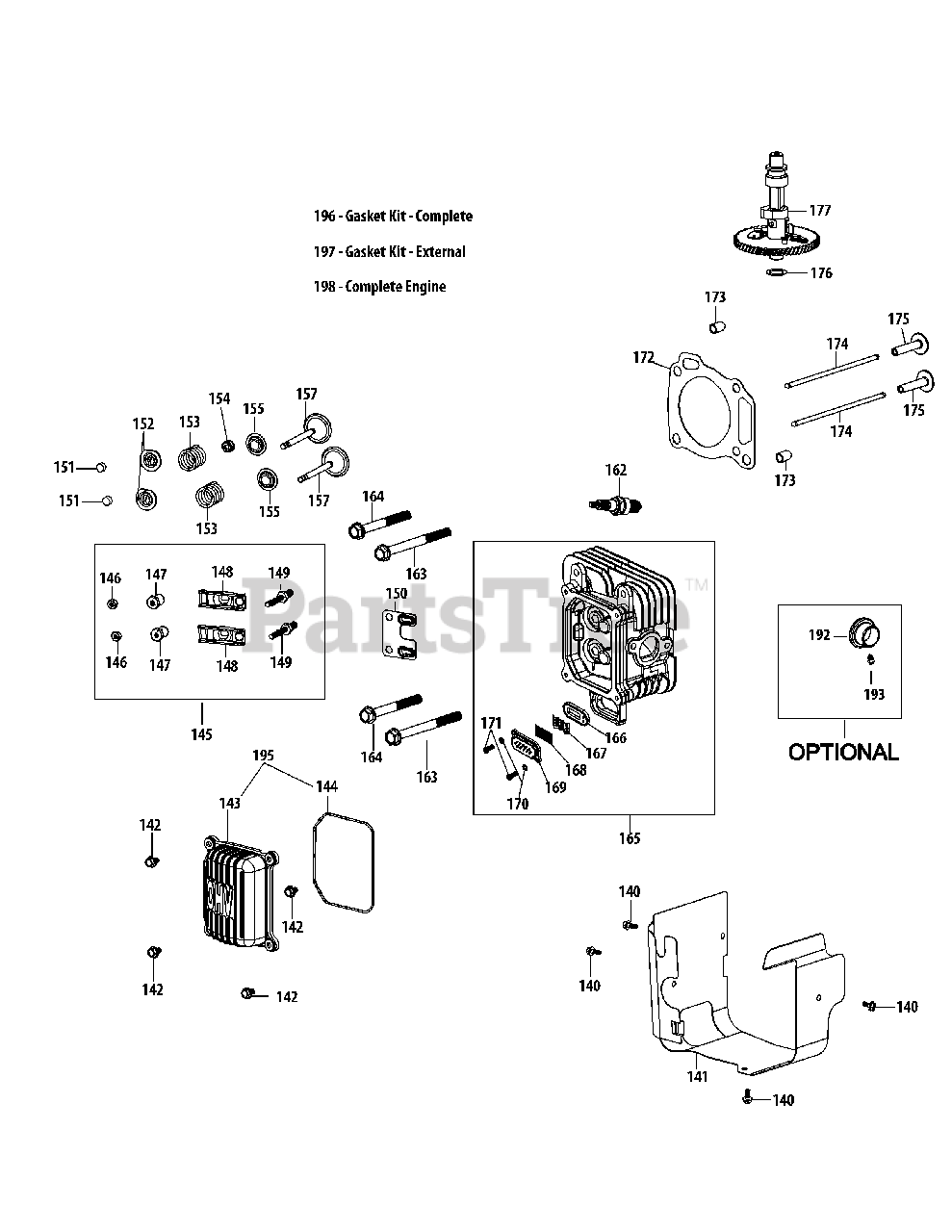

4P90MUA Cylinder Head Parts Diagram

  • Title

140

Troy-Bilt 710-05315

Bolt M5×10

$3.99

$

In Stock, only 1 left!

0

141

Troy-Bilt 951-12265

Cowl

$27.99

$

Usually ships in 3-6 days

0

142

Troy-Bilt 710-05316

Valve Cover Bolt

$4.49

$

In Stock, only 2 left!

0

143

Troy-Bilt 951-12266

Valve Cover

$26.99

$

In Stock, only 1 left!

0

144

Troy-Bilt 951-12267

Valve Cover Ring

$9.49

$

In Stock, Qty 15

0

145

Troy-Bilt 951-11981

Rocker Arm Assembly
(Superseded to 951-11981A)

$40.99

$

In Stock, only 1 left!

0

146

Troy-Bilt 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

147

Troy-Bilt 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

148

Troy-Bilt 951-11966

Rocker Arm

$8.49

$

In Stock, only 2 left!

0

149

Troy-Bilt 710-04962

Rocker Arm Stud

$6.49

$

In Stock, only 1 left!

0

150

Troy-Bilt 951-12268

Push Rod Guide

$7.49

$

In Stock, only 2 left!

0

151

Troy-Bilt 951-12081

Exhaust Valve Adjuster
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

152

Troy-Bilt 951-12080

Exhaust Valve Spring Retainer

$4.49

$

In Stock, Qty 20+

0

153

Troy-Bilt 951-12078

Valve Spring

$3.99

$

In Stock, only 1 left!

0

154

Troy-Bilt 951-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

In Stock, only 2 left!

0

155

Troy-Bilt 951-12077

Valve Spring Retainer
(Superseded to 951-12077A)

$3.99

$

In Stock, only 2 left!

0

157

Troy-Bilt 951-11337

Valve Kit

$50.99

$

Usually ships in 3-6 days

0

162

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

163

Troy-Bilt 710-05317

Bolt M10×1.25×85

$6.49

$

Usually ships in 3-6 days

0

164

Troy-Bilt 710-05318

Bolt /M10×1.25×65

$6.49

$

In Stock, Qty 7

0

165

Troy-Bilt 751-12778

Cylinder Head Asm
(Superseded to 951-12778)

Note: (Incl.137-139,144,146-157,160,161,163-172)

$362.99

$

Usually ships in 3-6 days

0

165

Troy-Bilt 951-12202

Cylinder Head Kit

Note: (Incl.144,154,163,164,166)

$74.99

$

Usually ships in 3-6 days

0

166

Troy-Bilt 751-12774

Air Valve Core
(Superseded to 951-12774)

$

$

Not available

167

Troy-Bilt 751-12775

Strainer Clip
(Superseded to 951-12775)

$4.49

$

Usually ships in 3-6 days

0

168

Troy-Bilt 751-12776

Strainer
(Superseded to 951-12776)

$3.99

$

Usually ships in 3-6 days

0

169

Troy-Bilt 751-12777

The Air Valve Bonnet
(Superseded to 951-12777)

$4.99

$

Usually ships in 3-6 days

0

170

Troy-Bilt 736-04629

Washer

$3.99

$

Usually ships in 3-6 days

0

171

Troy-Bilt 710-05450

Screw M5×12

$3.99

$

Usually ships in 3-6 days

0

172

Troy-Bilt 951-12273

Cylinder Head Gasket

$48.99

$

Usually ships in 3-6 days

0

173

Troy-Bilt 715-04122

Cylinder Head Dowel 12×16

$4.49

$

In Stock, only 1 left!

0

174

Troy-Bilt 951-11335

Push Rod Kit

$24.99

$

In Stock, Qty 9

0

175

Troy-Bilt 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

176

Troy-Bilt 736-04561

Camshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

177

Troy-Bilt 951-12274

Camshaft Assembly

$104.99

$

In Stock, only 2 left!

0

192

Troy-Bilt 951-12329

Spark Arrestor

$48.99

$

Usually ships in 3-6 days

0

193

Troy-Bilt 710-05344

Spark Arrestor Screw

$4.49

$

Usually ships in 3-6 days

0

195

Troy-Bilt 951-12197

Valve Cover Kit

$41.99

$

Usually ships in 3-6 days

0

196

Troy-Bilt 951-12204

Gasket Kit - Complete
(Superseded to 951-12204A)

Note: (Incl.47,50,58,74,113,118,130,136-138,144,160,166)

$99.99

$

Usually ships in 3-6 days

0

197

Troy-Bilt 951-12201

Gasket Kit - External
(Superseded to 951-12201A)

Note: (Incl.113,130,136-138,144,160)

$38.99

$

Usually ships in 3-6 days

0

198

Troy-Bilt 952Z4P90MU

Complete Engine
(Superseded to 952Z4P90MUD)

$1659.99

$

Usually ships in 3-6 days

0
