4P90JUD - Cub Cadet 420cc Engine 4P90JUD Carburetor Assembly Parts Diagram

420cc Engine

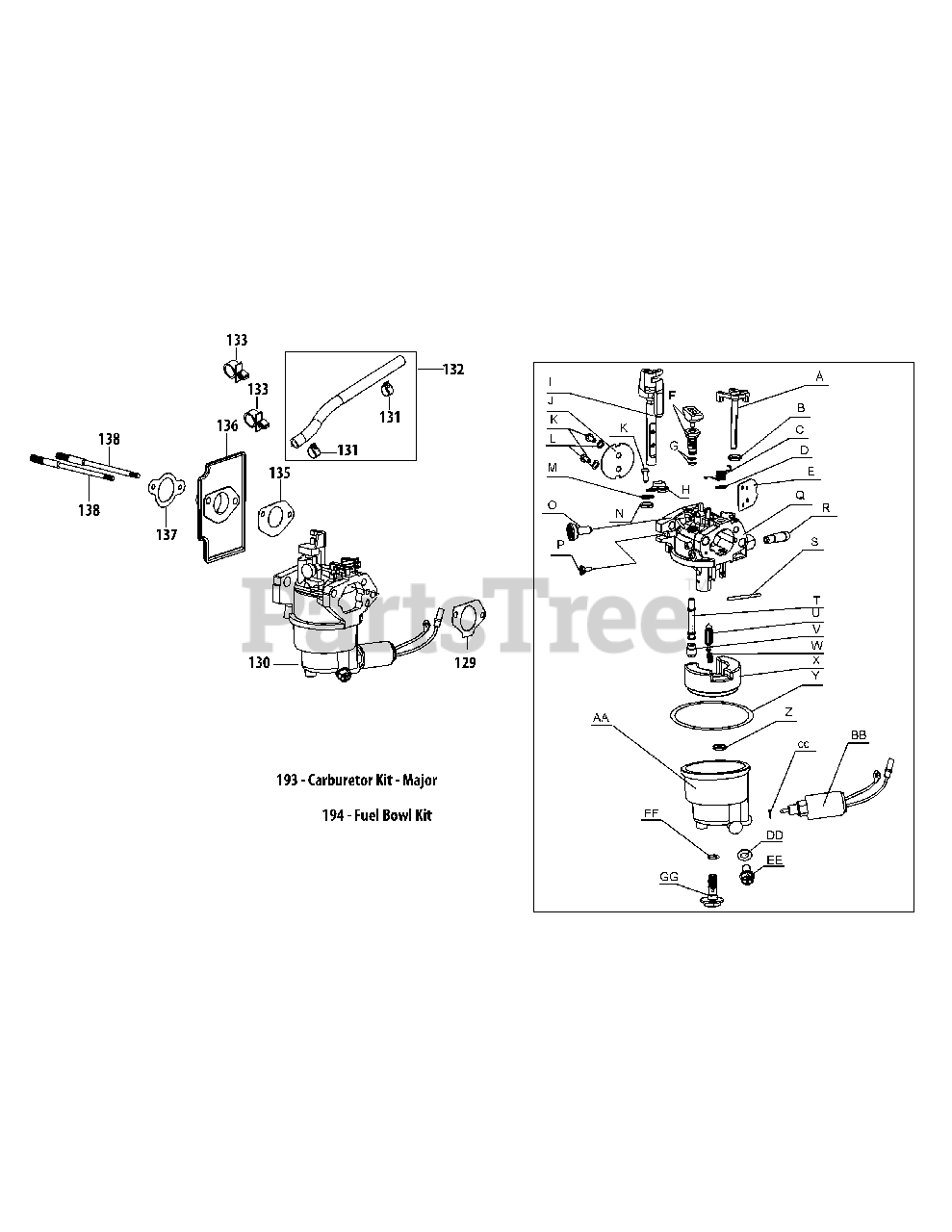

4P90JUD Carburetor Assembly Parts Diagram

  • Title

129

Cub Cadet 951-12258A

Manifold Gasket/Add Air Hole

$4.49

$

In Stock, Qty 20+

0

130

Cub Cadet 951-05149

Carburetor Assembly (Hy-4P90F)

$135.99

$

In Stock, Qty 20+

0

131

Cub Cadet 951-11731

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

132

Cub Cadet 951-11336

Fuel Line Kit

$33.99

$

In Stock, only 1 left!

0

133

Cub Cadet 723-04071

Plastic Support Clamp
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

135

Cub Cadet 951-12261

Carburetor Gasket

$4.49

$

In Stock, Qty 20+

0

136

Cub Cadet 951-12262

Carburetor Insulator

$10.99

$

In Stock, only 2 left!

0

137

Cub Cadet 951-12263

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 20+

0

138

Cub Cadet 951-12264

Carb Stud

$6.49

$

In Stock, Qty 5

0

193

Cub Cadet 951-14708

Carburetor Kit - Major

Note: (Incl.129,135,137,CC,F,G,S,T,U,V,W,X,Y,Z)

$52.99

$

In Stock, only 2 left!

0

194

Cub Cadet 951-14705

Fuel Bowl Kit

Note: (Incl.129,135,137,Y,Z,AA,CC,DD,GG)

$37.99

$

In Stock, only 1 left!

0

A

Choke Shaft

$

$

Not available

B

Choke Shaft Fiber O-Ring

$

$

Not available

C

Choke Return Spring

$

$

Not available

D

Flat Steel Washer

$

$

Not available

E

Choke Plate

$

$

Not available

F

Idle Jet Assembly

$

$

Not available

G

Idle Jet O-Ring

$

$

Not available

H

Sheetmetal Housing

$

$

Not available

I

Throttle Shaft

$

$

Not available

J

Throttle Plate

$

$

Not available

K

Screw M3x5

$

$

Not available

L

Lock Washer

$

$

Not available

M

Nylon/Plastic O-Ring

$

$

Not available

N

Fiber O-Ring

$

$

Not available

O

Cub Cadet 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

P

Idle Mixture Screw

$

$

Not available

Q

Carburetor Body

$

$

Not available

R

Fuel Inlet

$

$

Not available

S

Cub Cadet 711-06036

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

T

Emulsion Tube

$

$

Not available

U

Cub Cadet 751P14036A

NEEDLE VALVE

$5.99

$

Usually ships in 3-6 days

0

V

Main Jet

$

$

Not available

W

Cub Cadet 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

X

Cub Cadet 731P09131

CARBURETOR FLOAT

$3.49

$

Usually ships in 3-6 days

0

Y

Cub Cadet 951-12304

FUEL BOWL O-RING

$7.49

$

In Stock, only 1 left!

0

Z

Square-Ring

$

$

Not available

AA

Cub Cadet 619P05093

FLOAT BOWL

$10.99

$

Usually ships in 3-6 days

0

BB

Cub Cadet 951-14676

FUEL SOLENOID

$40.99

$

In Stock, only 1 left!

0

CC

Solenoid Valve Washer

$

$

Not available

DD

Cub Cadet 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

EE

Cub Cadet 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 10

0

FF

O-Ring

$

$

Not available

GG

Cub Cadet 710-06198

FUEL BOWL BOLT

$2.49

$

Usually ships in 3-6 days

0
