4P90JUC - MTD Engine 4P90JUC Cylinder Head Parts Diagram

Engine

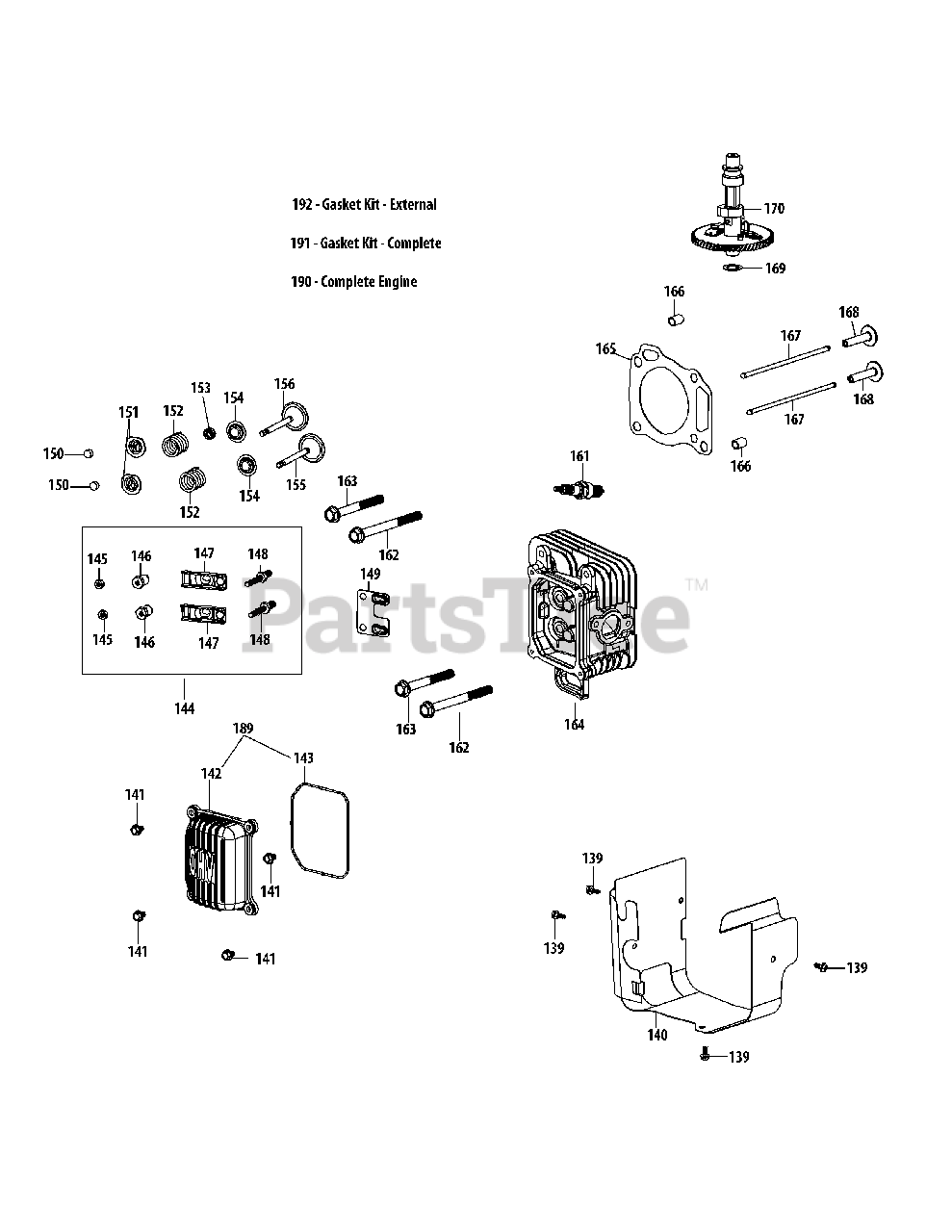

4P90JUC Cylinder Head Parts Diagram

  • Title

139

MTD 710-05315

Bolt M5×10

$3.99

$

In Stock, only 1 left!

0

140

MTD 951-12265

Cowl

$27.99

$

Usually ships in 3-6 days

0

141

MTD 710-05316

Valve Cover Bolt

$4.49

$

In Stock, only 2 left!

0

142

MTD 951-12266

Valve Cover

$26.99

$

In Stock, only 1 left!

0

143

MTD 951-12267

Valve Cover Gasket

$9.49

$

In Stock, Qty 14

0

144

MTD 951-11981

Rocker Arm Assembly
(Superseded to 951-11981A)

$40.99

$

In Stock, only 1 left!

0

145

MTD 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

146

MTD 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

147

MTD 951-11966

Rocker Arm

$8.49

$

In Stock, only 2 left!

0

148

MTD 710-04962

Rocker Arm Stud

$6.49

$

In Stock, only 1 left!

0

149

MTD 951-12268

Push Rod Guide

$7.49

$

In Stock, only 1 left!

0

150

MTD 951-12269

Exhaust Valve Adjuster

$6.49

$

In Stock, Qty 6

0

151

MTD 951-12080

Exhaust Valve Spring Retainer

$4.49

$

In Stock, Qty 19

0

152

MTD 951-12078

Valve Spring

$3.99

$

In Stock, only 1 left!

0

153

MTD 951-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

In Stock, only 1 left!

0

154

MTD 951-12077

Valve Spring Retainer
(Superseded to 951-12077A)

$3.99

$

In Stock, only 1 left!

0

155

MTD 951-11337

Valve Kit

$50.99

$

In Stock, only 1 left!

0

156

MTD 951-11337

Valve Kit

$50.99

$

In Stock, only 1 left!

0

161

MTD 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

162

MTD 710-05317

Bolt M10×1.25×85

$6.49

$

Usually ships in 3-6 days

0

163

MTD 710-05318

Bolt /M10×1.25×65

$6.49

$

In Stock, Qty 7

0

164

MTD 951-14706

Cylinder Head Assembly

Note: (Incl.136-138,143,145-156,158,159,161-164)

$311.99

$

Usually ships in 3-6 days

0

164

MTD 951-12202

Cylinder Head Kit

Note: (Incl.143,153,161,162,164)

$74.99

$

Usually ships in 3-6 days

0

165

MTD 951-12273

Cylinder Head Gasket

$48.99

$

Usually ships in 3-6 days

0

166

MTD 715-04122

Cylinder Head Dowel 12×16

$4.49

$

In Stock, only 1 left!

0

167

MTD 951-11335

Push Rod Kit

$24.99

$

In Stock, Qty 9

0

168

MTD 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

169

MTD 736-04561

Camshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

170

MTD 951-14678

Camshaft Assembly

$91.99

$

Usually ships in 3-6 days

0

189

MTD 951-12197

Valve Cover Kit

$41.99

$

Usually ships in 3-6 days

0

190

MTD 752Z4P90JUC

Complete Engine
(Superseded to 952Z4P90JUF)

$1865.99

$

Usually ships in 3-6 days

0

191

MTD 951-12204A

Gasket Kit - Complete

Note: (Incl.47,50,58,74,113,118,129,135-137,143,158,164)

$99.99

$

Usually ships in 3-6 days

0

192

MTD 951-12201A

Gasket Kit - External

Note: (Incl.113,129,135-137,143,158)

$38.99

$

Usually ships in 3-6 days

0
