4P90HUD - Cub Cadet 420cc Engine att 4P90HUD General Assembly Parts Diagram

420cc Engine

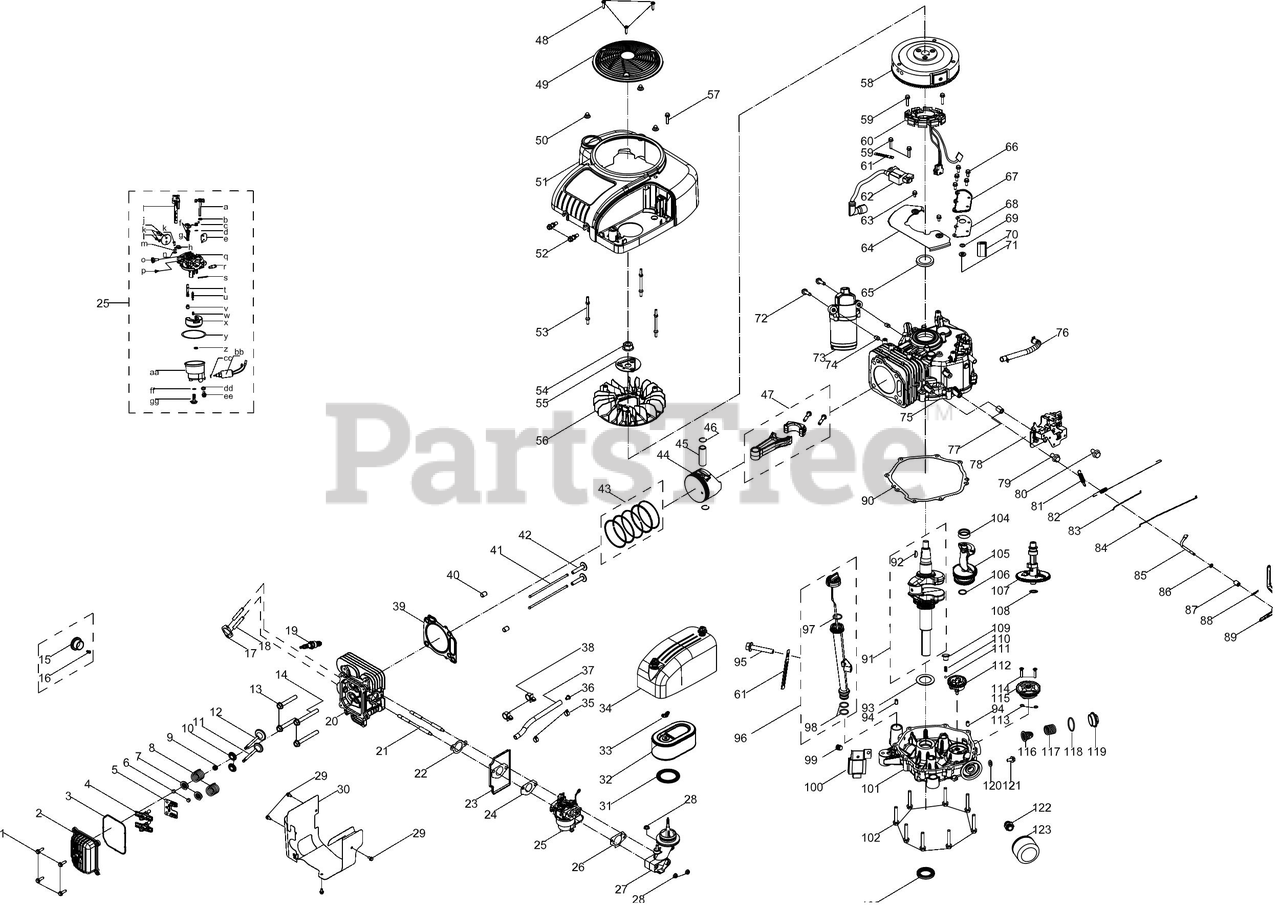

4P90HUD General Assembly Parts Diagram

  • Title

1

MTD 710-05316

Bolt, M6x22

$4.49

$

In Stock, only 2 left!

0

2

MTD 951-12266

Valve Cover

$26.99

$

In Stock, only 1 left!

0

3

MTD 951-12267

Gasket, Valve Cover

$9.49

$

In Stock, Qty 16

0

4

MTD 951-15353

Rocker Arm Assembly
(Superseded to 951-11981A)

$40.99

$

In Stock, only 1 left!

0

5

MTD 951-12268

Rocker Arm Base

$7.49

$

In Stock, only 2 left!

0

6

MTD 951-12081

Valve Adjust Cap, Exhaust
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

7

MTD 951-12080

Valve Spring Seat

$4.49

$

In Stock, Qty 20+

0

8

MTD 951-12078

Valve Spring

$3.99

$

Usually ships in 3-6 days

0

9

MTD 951-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

In Stock, only 2 left!

0

10

MTD 951-12077

Valve Spring Seat
(Superseded to 951-12077A)

$3.99

$

In Stock, only 2 left!

0

11

MTD 951-14224

Exhaust Valve

$22.99

$

In Stock, only 1 left!

0

12

MTD 951-14225

Intake Vavle

$20.99

$

Usually ships in 3-6 days

0

13

MTD 710-05318

Bolt, M10x1.25x65

$6.49

$

In Stock, Qty 7

0

14

MTD 710-05317

Bolt, M10x1.25x85

$6.49

$

Usually ships in 3-6 days

0

15

MTD 951-12316

Spark Arrester

$9.49

$

Usually ships in 3-6 days

0

16

MTD 710-05341

Self-tappling Screw, ST5x8

$2.99

$

Usually ships in 3-6 days

0

17

MTD 951-12271

Gasket, Muffler

$6.49

$

In Stock, only 1 left!

0

18

MTD 951-14459

Stud, M8x47

$6.99

$

Usually ships in 3-6 days

0

19

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

20

MTD 951-14706

Cylinder Head

$311.99

$

Usually ships in 3-6 days

0

21

MTD 951-12264

Stud, M6-8x140

$6.49

$

In Stock, Qty 5

0

22

MTD 951-12263

Gasket, Carburetor Insulator

$4.49

$

In Stock, Qty 20+

0

23

MTD 951-12262

Insulator

$10.99

$

In Stock, only 2 left!

0

24

MTD 951-12261

Gasket, Carburetor

$4.49

$

In Stock, Qty 20+

0

25

MTD 951-05149

Carburetor

$135.99

$

In Stock, Qty 20+

0

26

MTD 951-12258A

Gasket, Intake Manifold

$4.49

$

In Stock, Qty 20+

0

27

MTD 951-15440

Intake Manifold

$30.99

$

Usually ships in 3-6 days

0

28

MTD 712-05015

Nut, M6

$6.99

$

In Stock, Qty 6

0

29

MTD 710-06290

Bolt, M5x10

$4.99

$

Usually ships in 3-6 days

0

30

MTD 951-12265

Shroud

$27.99

$

Usually ships in 3-6 days

0

31

MTD 951-15444

Ring,Air Filter

$6.49

$

Usually ships in 3-6 days

0

32

MTD 937-05122

Air Filter Assembly

$26.99

$

In Stock, Qty 20+

0

32

MTD 490-200-M068

Genuine Factory Parts AIR FILTER

Note: Retail Packaged Part

$26.99

$

In Stock, Qty 5

0

33

MTD 951-15443

Butterfly Nut

$5.49

$

Usually ships in 3-6 days

0

34

MTD 931-05081A

Air Filter Cover

$26.99

$

Usually ships in 3-6 days

0

35

MTD 951-11700

Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

36

MTD 951-14091

Plug

$4.99

$

Usually ships in 3-6 days

0

37

MTD 935-05087

Fuel Hose, 6.3x12.5x290

$11.99

$

Usually ships in 3-6 days

0

38

MTD 723-04071

Clip
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

39

MTD 951-12273

Gasket, Cylinder Head

$48.99

$

Usually ships in 3-6 days

0

40

MTD 715-04122

Pin, 12x16

$4.49

$

In Stock, only 1 left!

0

41

MTD 951-14226

Push Rod
(Superseded to 951-14226A)

$11.99

$

Usually ships in 3-6 days

0

42

MTD 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

43

MTD 951-05156

Piston Ring Set

$26.99

$

In Stock, Qty 7

0

44

MTD 951-14677

Piston

$53.99

$

Usually ships in 3-6 days

0

45

MTD 951-11954

Piston Pin
(Superseded to 951-11954A)

$8.49

$

Usually ships in 3-6 days

0

46

MTD 951-11953

Circlip
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 5

0

47

MTD 951-12277

Connecting Rod Assembly

$76.99

$

In Stock, only 1 left!

0

48

MTD 710-05303

Self-tappling Screw, ST5.5x25

$3.99

$

In Stock, only 2 left!

0

49

MTD 951-12205

Shroud

$9.99

$

In Stock, Qty 7

0

50

MTD 712-04276

Nut,M6
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

51

MTD 951-14128B

Shroud

$59.99

$

Usually ships in 3-6 days

0

52

MTD 710-05305

Hook

$4.49

$

In Stock, only 2 left!

0

53

MTD 710-05304

Stud, M6

$3.99

$

Usually ships in 3-6 days

0

54

MTD 712-05169

Nut, M16x1.5

$8.49

$

Usually ships in 3-6 days

0

55

MTD 951-12221

Cooling Fan Plate

$10.99

$

Usually ships in 3-6 days

0

56

MTD 951-12222B

Cooling Fan

$56.99

$

Usually ships in 3-6 days

0

57

MTD 710-04968

Bolt, M6x16

$6.99

$

In Stock, only 3 left!

0

58

MTD 919-05089

Flywheel

$247.99

$

Usually ships in 3-6 days

0

59

MTD 710-04943

Bolt, M6x28

$4.49

$

In Stock, only 2 left!

0

60

MTD 951-12224

Charging Coil

$95.99

$

In Stock, only 3 left!

0

61

MTD 951-11622

FLEXIBLE CLAMP
(Superseded to 951-11622A)

$3.99

$

Usually ships in 3-6 days

0

62

MTD 951-12220

Ignition Module

$88.99

$

In Stock, only 1 left!

0

63

MTD 710-04914

Bolt, M6x10

$4.49

$

In Stock, only 3 left!

0

64

MTD 951-12279

Shield

$14.99

$

Usually ships in 3-6 days

0

65

MTD 951-11499

Oil Seal, 35x52x7
(Superseded to 951-11499A)

$13.99

$

In Stock, only 2 left!

0

66

MTD 710-04916

Bolt, M6x14

$4.49

$

In Stock, Qty 12

0

67

MTD 951-12770A

Breather Cover

$7.99

$

Usually ships in 3-6 days

0

68

MTD 951-12226

Gasket, Breather Cover

$5.49

$

In Stock, Qty 8

0

69

MTD 951-12685

Breather Valve

$5.99

$

In Stock, Qty 11

0

70

MTD 951-12227

Breather Filter Screen

$5.99

$

In Stock, only 1 left!

0

71

MTD 951-12686

Second Air Valve Seat

$5.99

$

In Stock, only 1 left!

0

72

MTD 710-05306

Bolt, M8x40

$3.99

$

In Stock, Qty 5

0

73

MTD 951-12207

Electric Starter
(Superseded to 751P12207A)

$224.99

$

In Stock, only 1 left!

0

74

MTD 715-04120

Pin, 10x14

$4.49

$

In Stock, only 4 left!

0

75

MTD 919-05022A

Crankcase

$307.99

$

Usually ships in 3-6 days

0

76

MTD 951-12235

Breather Hose

$13.99

$

In Stock, only 1 left!

0

77

MTD 750-05530

Bush, 6.5x15x20

$3.99

$

Usually ships in 3-6 days

0

78

MTD 951-15513

Governor Gear Bracket Assembly

$28.99

$

In Stock, only 1 left!

0

79

MTD 710-05310

Bolt, M6x38

$3.99

$

Usually ships in 3-6 days

0

80

MTD 710-05003

Bolt, M6x18

$4.49

$

In Stock, only 4 left!

0

81

MTD 932-05187

Governor Spring

$6.49

$

Usually ships in 3-6 days

0

82

MTD 951-12231

Idle Spring

$4.49

$

In Stock, only 1 left!

0

83

MTD 951-12228

Choke Lever

$4.49

$

In Stock, Qty 5

0

84

MTD 951-12230

Throttle Linkage

$4.49

$

In Stock, Qty 12

0

85

MTD 947-06356

Governor Gear Shaft

$23.99

$

Usually ships in 3-6 days

0

86

MTD 736-04558

Washer, 6x1x12

$3.99

$

In Stock, only 1 left!

0

87

MTD 951-11574

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

88

MTD 714-04078

Cotter Pin

$4.49

$

In Stock, only 1 left!

0

89

MTD 951-12232

Governor Lever

$23.99

$

Usually ships in 3-6 days

0

90

MTD 951-12237

Gasket, Crankcase

$22.99

$

In Stock, Qty 8

0

91

MTD 951-12238

Crankshaft

$294.99

$

In Stock, only 1 left!

0

92

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

93

MTD 736-04557

Washer, 35.4x2x54

$4.49

$

Usually ships in 3-6 days

0

94

MTD 715-04121

Pin, 8x14

$4.49

$

In Stock, only 2 left!

0

95

MTD 710-05198

Bolt, M6x35

$5.49

$

Usually ships in 3-6 days

0

96

MTD 951-12239

Dipstick Assembly

$30.99

$

Usually ships in 3-6 days

0

97

MTD 951-12317

O-Ring, 21.9x2.62

$4.49

$

Usually ships in 3-6 days

0

98

MTD 951-12363

O-Ring, 21.2x2.8

$3.99

$

In Stock, Qty 12

0

99

MTD 951-11644

ENGINE PLUG 3/8 NPT

$10.99

$

In Stock, Qty 5

0

100

MTD 951-12242

Regulator

$52.99

$

In Stock, Qty 5

0

101

MTD 919-05090

Crankcase Cover

$141.99

$

Usually ships in 3-6 days

0

102

MTD 710-04982

Bolt, M8x54

$3.99

$

Usually ships in 3-6 days

0

103

MTD 951-11375

Oil Seal, 35x52x7
(Superseded to 951-11375A)

$15.99

$

In Stock, Qty 20+

0

104

MTD 951-15463

Bearing, 6202

$12.99

$

Usually ships in 3-6 days

0

105

MTD 751-12246

Balance Shaft

$160.99

$

Usually ships in 3-6 days

0

106

MTD 736-04559

Washer, 15.4x1x25

$4.49

$

Usually ships in 3-6 days

0

107

MTD 951-14678

Camshaft

$91.99

$

Usually ships in 3-6 days

0

108

MTD 736-04561

Washer, 16.4x1x24

$4.49

$

Usually ships in 3-6 days

0

109

MTD 710-05312

Bolt

$4.99

$

Usually ships in 3-6 days

0

110

MTD 951-12244

Spring

$3.99

$

Usually ships in 3-6 days

0

111

MTD 951-12243

Ball S6.35

$3.99

$

Usually ships in 3-6 days

0

112

MTD 951-11956

Governor Gear

$41.99

$

Usually ships in 3-6 days

0

113

MTD 951-12247

O-Ring, 10x2.65

$4.49

$

Usually ships in 3-6 days

0

114

Screw, M6x30

Note: Incl. with Ref 115

$

$

Not available

115

MTD 951-12248

Oil Pump

$68.99

$

Usually ships in 3-6 days

0

116

MTD 951-12249

Breather Filter Screen

$3.99

$

Usually ships in 3-6 days

0

117

MTD 951-12250

Breather Spring

$3.99

$

Usually ships in 3-6 days

0

118

MTD 951-12251

O-Ring, 35.5x2.65

$4.49

$

In Stock, only 1 left!

0

119

MTD 951-12252

Breather Cover

$6.99

$

Usually ships in 3-6 days

0

120

MTD 736-04560

Washer, 8.3x1.5x17

$4.49

$

Usually ships in 3-6 days

0

121

MTD 710-05313

Bolt, M8x15

$3.99

$

Usually ships in 3-6 days

0

122

MTD 951-12253

Connection Pipe

$7.99

$

Usually ships in 3-6 days

0

123

MTD 951-12690

Oil Filter

$17.99

$

In Stock, Qty 20+

0

123

MTD 490-201-C010

Cub Cadet OIL FILTER

Note: Retail Packaged Part

$17.99

$

In Stock, only 1 left!

0

123

MTD 490-201-0010

Genuine Factory Parts OIL FILTER
(Superseded to 490-201-Y010)

Note: Retail Packaged Part

$17.99

$

In Stock, only 1 left!

0

a

Choke Shaft

$

$

Not available

b

Gasket

$

$

Not available

c

Choke Spring

$

$

Not available

d

Washer

$

$

Not available

e

Choke Plate

$

$

Not available

f

Idle Jet

$

$

Not available

g

O-Ring, 4x1.8G

$

$

Not available

h

Throttle Shaft Sleeve

$

$

Not available

i

Throttle Shaft

$

$

Not available

j

Throttle Plate

$

$

Not available

k

Screw, M3x5

$

$

Not available

l

MTD 736-04638

Washer, 3
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

m

Gasket, Throttle Shaft

$

$

Not available

n

Gasket

$

$

Not available

o

MTD 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

p

Idle Jet Rivet

$

$

Not available

q

Carburetor Body

$

$

Not available

r

MTD 737P05014

FUEL NIPPLE

$2.99

$

Usually ships in 3-6 days

0

s

MTD 711-06036

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

t

Nozzle Tube

$

$

Not available

u

MTD 751P14036A

NEEDLE VALVE

$5.99

$

Usually ships in 3-6 days

0

v

Main Jet

$

$

Not available

w

MTD 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

x

MTD 731P09131

CARBURETOR FLOAT

$3.49

$

Usually ships in 3-6 days

0

y

MTD 951-12304

FUEL BOWL O-RING

$7.49

$

In Stock, only 1 left!

0

z

MTD 721P04699

SEAL

$2.49

$

Usually ships in 3-6 days

0

aa

MTD 619P05093

FLOAT BOWL

$10.99

$

Usually ships in 3-6 days

0

bb

MTD 951-14676

Solenoid Valve

$40.99

$

In Stock, only 1 left!

0

cc

O-Ring, Solenoid Valve Seat

$

$

Not available

dd

MTD 951-11349

Gasket, Drain Bolt
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

ee

MTD 710-04938

Drain Bolt

$4.49

$

In Stock, Qty 10

0

ff

MTD 951-12772

O-Ring, Solenoid Valve Seat

$3.99

$

Usually ships in 3-6 days

0

gg

MTD 951-12772

SEAT/FUEL BOWL BOLT O-RING

$3.99

$

Usually ships in 3-6 days

0

MTD 952Z4P90HUD

Complete Engine

$1834.99

$

Usually ships in 3-6 days

0
