4M372 B - Electrolux/AYP Walk-Behind Mower (1995) REAR BAGGER ROTARY LAWN MOWER Parts Diagram

Walk-Behind Mower

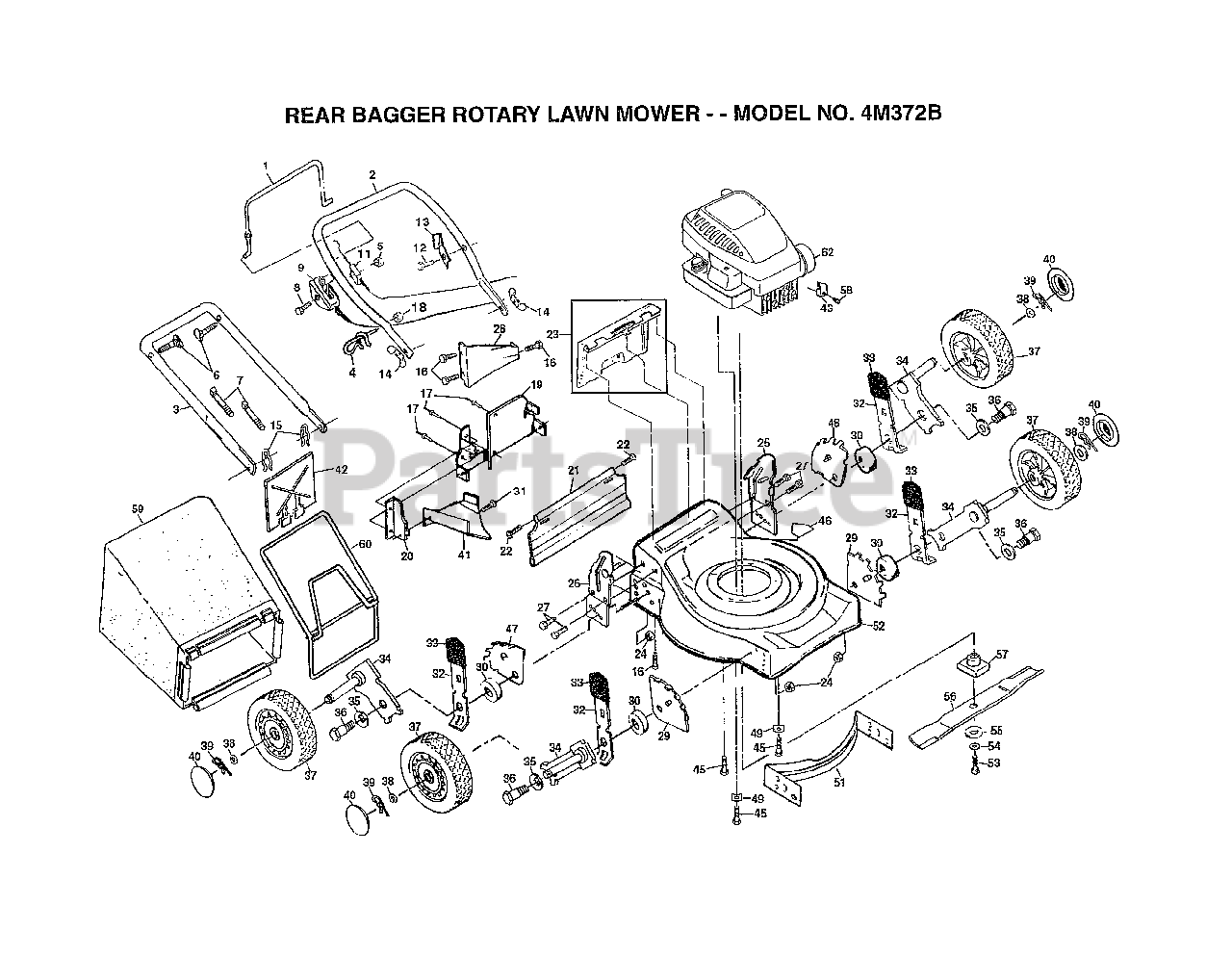

REAR BAGGER ROTARY LAWN MOWER Parts Diagram

  • Title

1

Electrolux/AYP 131696

CONTROL BAR
(Superseded to 532131696)

$34.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 131697X479

SUB= 154480X479

$

$

Not available

3

Electrolux/AYP 132813X479

SUB= 151721X479

$

$

Not available

4

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

5

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

6

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

7

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 144929

SCREW.HXHD.WASH.
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 700417

"CONTROL, THROTTLE"
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 130861

"CABLE,ENG ZONE CO"
(Superseded to 532130861)

$

$

Not available

12

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

13

Electrolux/AYP 850733X004

"BRKT,UPSTOP"
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 8

0

15

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 54583

SCREW
(Superseded to 532054583)

$

$

Not available

17

Electrolux/AYP 128415

BLIND RIVET
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

18

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

19

Electrolux/AYP 700360X479

PLATE.BACK
(Superseded to 156380X479)

$

$

Not available

20

Electrolux/AYP 700365X479

BAFFLE.SIDE

$

$

Not available

21

Electrolux/AYP 140540

SKIRT.REAR.FGD.22
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 88652

HINGE SCREW
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

23

Electrolux/AYP 147612

KIT.DOOR.REAR.22
(Superseded to 532151023)

$21.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 700913X479

SUB= 150956

$

$

Not available

26

Electrolux/AYP 700915X479

SUB= 150956

$

$

Not available

27

Electrolux/AYP 55187

SCREW
(Superseded to 532055187)

$6.49

$

In Stock, Qty 6

0

28

Electrolux/AYP 133040X479

REAR BAFFLE
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 700325X007

BRACKET.ADJ.9POS.
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 84920

SUB= 146630

$2.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 86344

SCREW PM
(Superseded to 532086344)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 700331X004

SPRING SELECTOR
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 145935X004

ARM.AXLE.ASM.BZP.
(Superseded to 532145935)

$

$

Not available

35

Electrolux/AYP 62335

"WASHER, BELLEVIL."
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 142748

BOLT SHLD 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

37

Electrolux/AYP 148438

WHEEL.8X1.75.WHT
(Superseded to 532146248)

$

$

Not available

39

Electrolux/AYP 83923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 77400

HUB CAP
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

41

Electrolux/AYP 133190X479

DISCHARGE BAFFLE

$

$

Not available

42

Electrolux/AYP 133170X479

MULCHER PLATE
(Superseded to 532166649)

$

$

Not available

43

CHECK WITH SUPPLIER

$

$

Not available

43

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

45

Electrolux/AYP 850998

SCREW
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 700327X007

BRACKET.ADJ.9.RH

$

$

Not available

48

Electrolux/AYP 700326X007

BRACKET.ADJ.9.LH

$

$

Not available

49

Electrolux/AYP 851201X004

WASHER

$

$

Not available

51

Electrolux/AYP 132255X479

SUB= 144964

$

$

Not available

52

Electrolux/AYP 149120

KIT.HSG.22RD.PUSH

$92.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 141114

"BLADE.MULCH.22"""
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

57

Electrolux/AYP 851514

ADAPTOR.BLADE.LM
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 149596

GRASSBAG.250B1.BL

$

$

Not available

60

Electrolux/AYP 149555

FRAME.CATCHER.2.5
(Superseded to 532149555)

$

$

Not available

62

CHECK WITH SUPPLIER

$

$

Not available

Electrolux/AYP 145655

MANUAL.OP.GEN.PUS

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 145656

MANUAL.OPR.FRENCH

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 149794

MANUAL.PTS.4M372B

$2.49

$

Usually ships in 3-10 days

0

Electrolux/AYP MA36

CLIPPING DEFL

$47.99

$

Usually ships in 3-10 days

0
