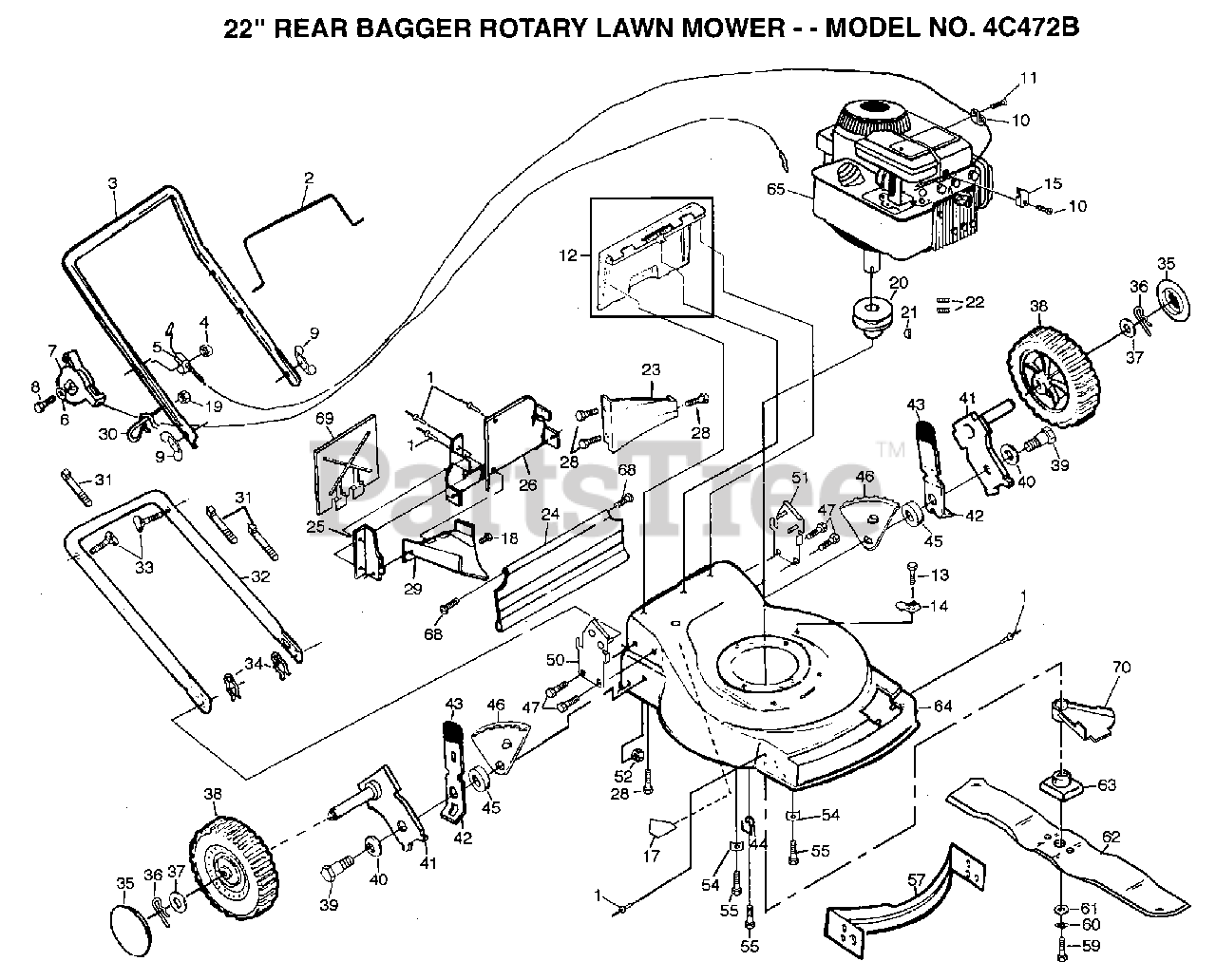

4C472 B - Electrolux/AYP Walk-Behind Mower 22" REAR BAGGER MOWER Parts Diagram

Walk-Behind Mower

22" REAR BAGGER MOWER Parts Diagram

  • Title

1

Electrolux/AYP 128415

BLIND RIVET
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 132570

CONTROL BAR
(Superseded to 582948101)

$6.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 132670X479

SUB= 154480X479

$

$

Not available

4

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

5

Electrolux/AYP 130861

"CABLE,ENG ZONE CO"
(Superseded to 532130861)

$

$

Not available

6

Electrolux/AYP 85723

WASHER PM
(Superseded to 532085723)

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 851462

CONTROL THROTTLE
(Superseded to 583120101)

$15.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 85692

SUB= 74250434

$

$

Not available

9

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 8

0

10

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

12

Electrolux/AYP 48137

SUB= 91848137

$35.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

14

Electrolux/AYP 87930

GUIDE CLIP PM
(Superseded to 532087930)

$5.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 850472

"CLIP,CABLE"
(Superseded to 532850472)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 86344

SCREW PM
(Superseded to 532086344)

$3.99

$

Usually ships in 3-10 days

0

19

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

20

Electrolux/AYP 84596

ENGINE.PULLEY.FWG
(Superseded to 532084596)

$34.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 87677

HI PRO KEY PM
(Superseded to 532087677)

$

$

Not available

22

Electrolux/AYP 59708

SCREW
(Superseded to 532059708)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 133040X479

REAR BAFFLE
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 128796

SUB= 140540

$

$

Not available

25

Electrolux/AYP 700365X479

BAFFLE.SIDE

$

$

Not available

26

Electrolux/AYP 700361X479

PLATE.BACK.22RD
(Superseded to 584385901)

$8.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 54583

SCREW
(Superseded to 532054583)

$

$

Not available

29

Electrolux/AYP 133190X479

DISCHARGE BAFFLE

$

$

Not available

30

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

31

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 132813X479

SUB= 151721X479

$

$

Not available

33

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

34

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 77400

HUB CAP
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

36

Electrolux/AYP 85179

RETAINER CLIP PM
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 52160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 800390

SUB= 146247
(Superseded to 532151155)

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 84921

SUB= 142748

$

$

Not available

40

Electrolux/AYP 62335

"WASHER, BELLEVIL."
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 85021X004

AXLE ARM
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 700331X004

SPRING SELECTOR
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 135030

DEBRIS SHLD RET

$

$

Not available

45

Electrolux/AYP 84920

SUB= 146630

$2.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 700376

SUB= 700326X007

$

$

Not available

47

Electrolux/AYP 55187

SCREW
(Superseded to 532055187)

$6.49

$

In Stock, Qty 11

0

48

Electrolux/AYP 700377

SUB= 700327X007

$

$

Not available

50

Electrolux/AYP 700915X505

SUB= 150956

$

$

Not available

51

Electrolux/AYP 700913X505

SUB= 150956

$

$

Not available

52

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 851201X004

WASHER

$

$

Not available

55

Electrolux/AYP 850998

SCREW
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 132255X479

SUB= 144964

$

$

Not available

59

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

60

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

62

Electrolux/AYP 134768

SUB= 141114

$

$

Not available

63

Electrolux/AYP 851514

ADAPTOR.BLADE.LM
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 701437

KIT.HSG.22RD.FWGD

$126.99

$

Usually ships in 3-10 days

0

65

REFER TO IMAGE

$

$

Not available

68

Electrolux/AYP 88652

HINGE SCREW
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

69

Electrolux/AYP 133170X479

MULCHER PLATE
(Superseded to 532166649)

$

$

Not available

70

Electrolux/AYP 134612

SUB= 48283

$

$

Not available

Electrolux/AYP 700480

"MANUAL,OP"

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 702587

MANUAL.P.4C472B

$2.49

$

Usually ships in 3-10 days

0
