49X977-0005-J1 - Briggs & Stratton Vertical Engine Throttle Body and Fuel Supply Group Parts Diagram

Vertical Engine

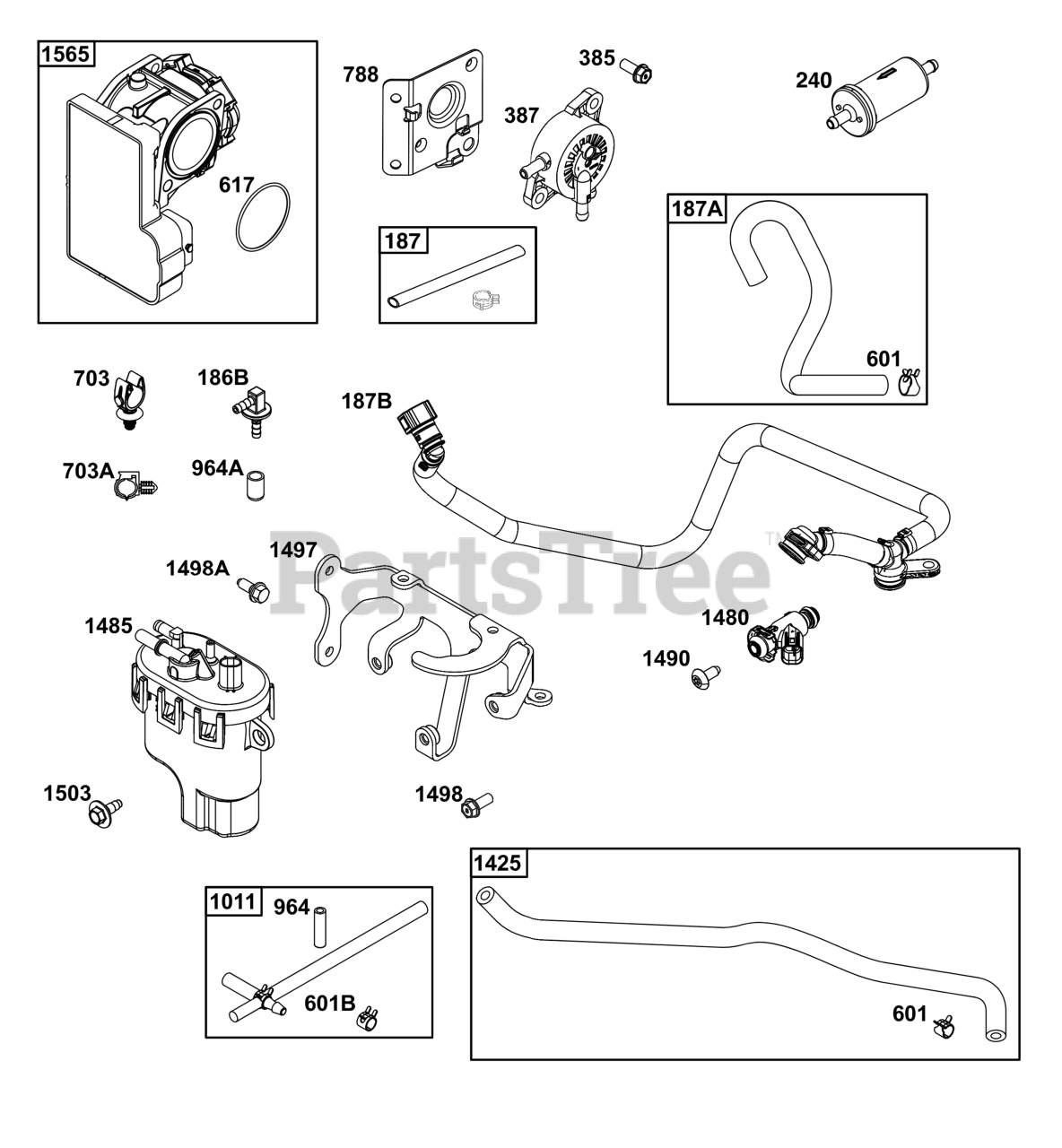

Throttle Body and Fuel Supply Group Parts Diagram

  • Title

186B

Briggs & Stratton 594428

CONNECTOR, Hose

$4.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 84004549

LINE, FUEL

$51.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 84003861

LINE, FUEL

$152.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 690297

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 12

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 16

0

601B

Briggs & Stratton 593879

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

703

Briggs & Stratton 84004552

CLIP

$6.49

$

Usually ships in 2-12 days

0

703A

Briggs & Stratton 592584

CLIP

$6.99

$

In Stock, only 1 left!

0

788

Briggs & Stratton 84004526

BRACKET, FUEL PUMP

$21.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 799159

CAP, Connector

$8.49

$

In Stock, only 1 left!

0

964A

Briggs & Stratton 590799

CAP, Connector

$9.49

$

Usually ships in 2-12 days

0

1011

Briggs & Stratton 84004550

TUBE/CONNECTOR ASSEMBLY

$31.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 84004551

HOSE/CLAMP ASSEMBLY

$22.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 84004544

INJECTOR, Fuel

$73.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$411.99

$

In Stock, only 1 left!

0

1490

Briggs & Stratton 697820

SCREW

Note: (Fuel Injector)

$4.49

$

In Stock, only 3 left!

0

1497

Briggs & Stratton 84004513

BRACKET, Fuel Module

$21.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 690297

SCREW

Note: (Fuel Module Bracket)

$3.49

$

In Stock, Qty 12

0

1498A

Briggs & Stratton 691108

SCREW

Note: (Fuel Module Bracket)

$3.49

$

In Stock, Qty 20+

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module)

$3.99

$

In Stock, Qty 20+

0

1565

Briggs & Stratton 84006022

CONTROL, Electronic Throttle

$411.99

$

Usually ships in 2-12 days

0
