49X977-0005-J1 - Briggs & Stratton Vertical Engine Blower Housing and Air Cleaner Group Parts Diagram

Vertical Engine

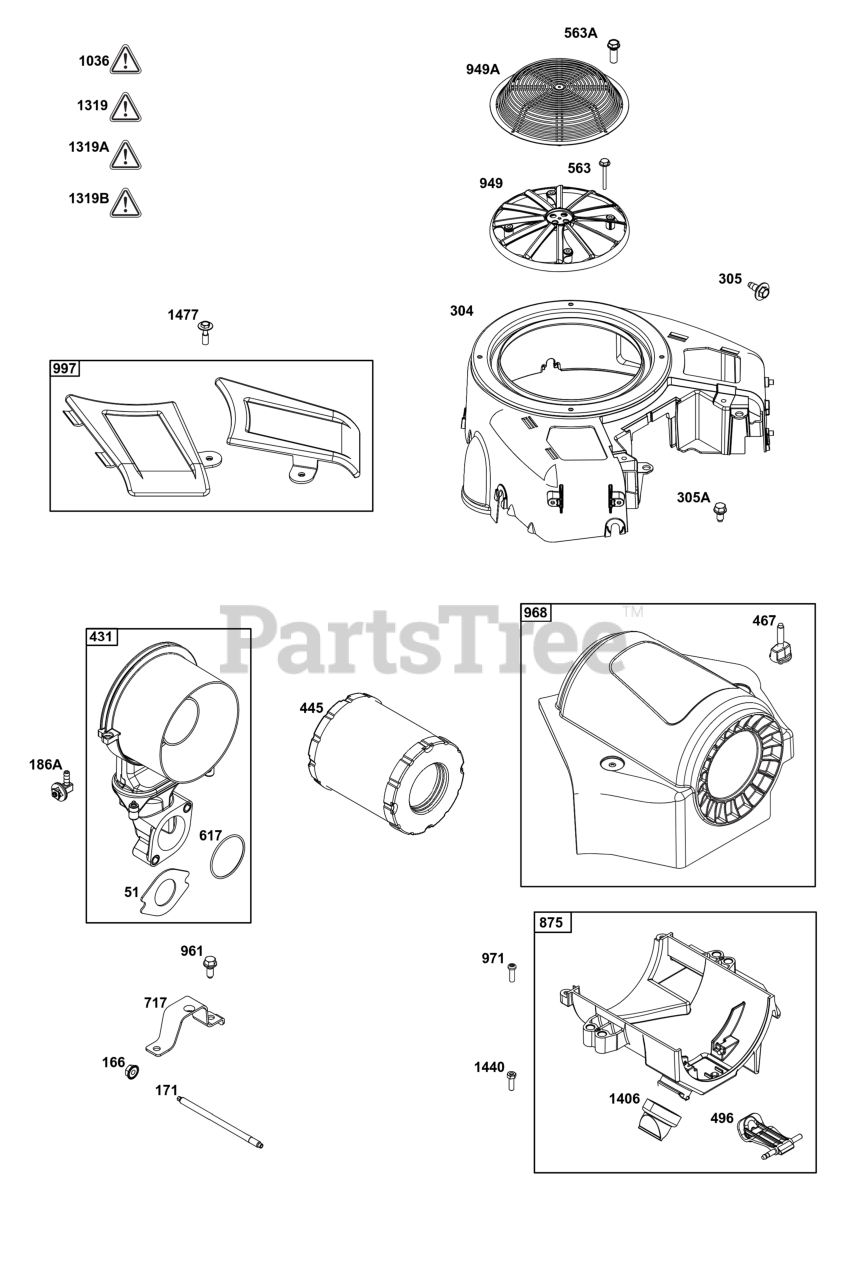

Blower Housing and Air Cleaner Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

166

Briggs & Stratton 84004545

STUD

Note: (Air Cleaner)

$5.99

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 690958

NUT

Note: (Air Cleaner)

$3.49

$

In Stock, only 3 left!

0

186A

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

304

Briggs & Stratton 595600

HOUSING, Blower

$149.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 594618

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 557049

SCREW

Note: (Blower Housing)

$3.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 84003938

ELBOW, Intake

$53.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 798897

FILTER, A/C Cartridge

$31.99

$

In Stock, only 4 left!

0

467

Briggs & Stratton 790697

KNOB, Air Cleaner Cover

$7.99

$

Usually ships in 2-12 days

0

496

Briggs & Stratton 799095

LEVER, Air Cleaner Filter

$28.99

$

Usually ships in 2-12 days

0

563

Briggs & Stratton 698425

SCREW

Note: (Debris Screen Guard)

$3.49

$

In Stock, Qty 20+

0

563A

Briggs & Stratton 597574

SCREW

$3.99

$

Usually ships in 2-12 days

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

717

Briggs & Stratton 84004546

BRACKET, AIR CLEANER

$49.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 799094

BASE, Air Cleaner

$64.99

$

In Stock, only 1 left!

0

949

Briggs & Stratton 593206

GUARD, Debris Screen

$39.99

$

Usually ships in 2-12 days

0

949A

Briggs & Stratton 597573

GUARD, Debris Screen

$42.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 691108

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 799102

COVER, Air Cleaner

$39.99

$

In Stock, only 2 left!

0

971

Briggs & Stratton 698304

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.49

$

Usually ships in 2-12 days

0

997

Briggs & Stratton 592782

COVER, Blower Housing

$38.99

$

Usually ships in 2-12 days

0

1036

LABEL, Emissions

Note: (Available from a Briggs & Stratton Authorized Dealer)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$18.99

$

Usually ships in 2-12 days

0

1319B

Briggs & Stratton 278911GS

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$12.99

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 799096

VALVE, Debris

$17.99

$

Usually ships in 2-12 days

0

1440

Briggs & Stratton 794904

SCREW

Note: (Air Cleaner Base to Intake Elbow)

$3.49

$

Usually ships in 2-12 days

0

1477

Briggs & Stratton 799093

SCREW

Note: (Debris Shield)

$4.49

$

Usually ships in 2-12 days

0
