49X977-0003-G1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

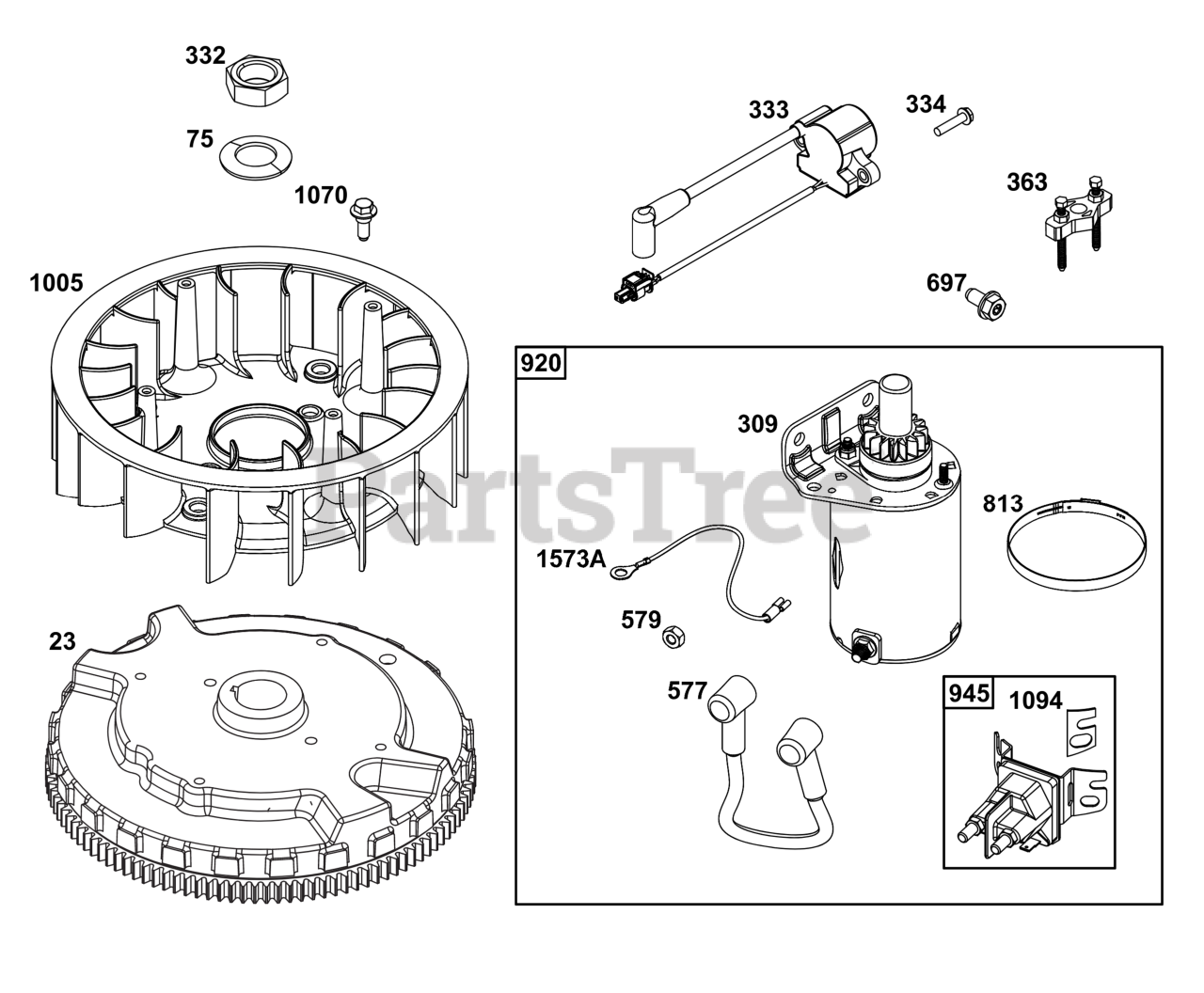

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 84004525

FLYWHEEL

$205.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 691056

WASHER

Note: (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 590476

MOTOR, Starter

$177.99

$

In Stock, only 1 left!

0

332

Briggs & Stratton 691059

NUT

Note: (Flywheel)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 84004106

ARMATURE, MAGNETO

$62.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 593848

SCREW

Note: (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

577

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 2 left!

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 591909

SCREW

Note: (Starter Motor) (Drive Cap)

$2.99

$

In Stock, Qty 12

0

813

Briggs & Stratton 595087

CLAMP

$7.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 84004567

MOTOR, STARTER

$166.99

$

Usually ships in 2-12 days

0

945

Briggs & Stratton 595150

SOLENOID, Starter

$35.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 593640

FAN, Flywheel

$26.99

$

In Stock, only 1 left!

0

1070

Briggs & Stratton 593638

SCREW

Note: (Flywheel Fan)

$5.99

$

Usually ships in 2-12 days

0

1094

Briggs & Stratton 595170

PAD, Solenoid

$20.99

$

Usually ships in 2-12 days

0

1573A

Briggs & Stratton JUMPTO1573

WIRE, Ground

Note: (Part information located in Controls Group.)

$

$

Currently unavailable
