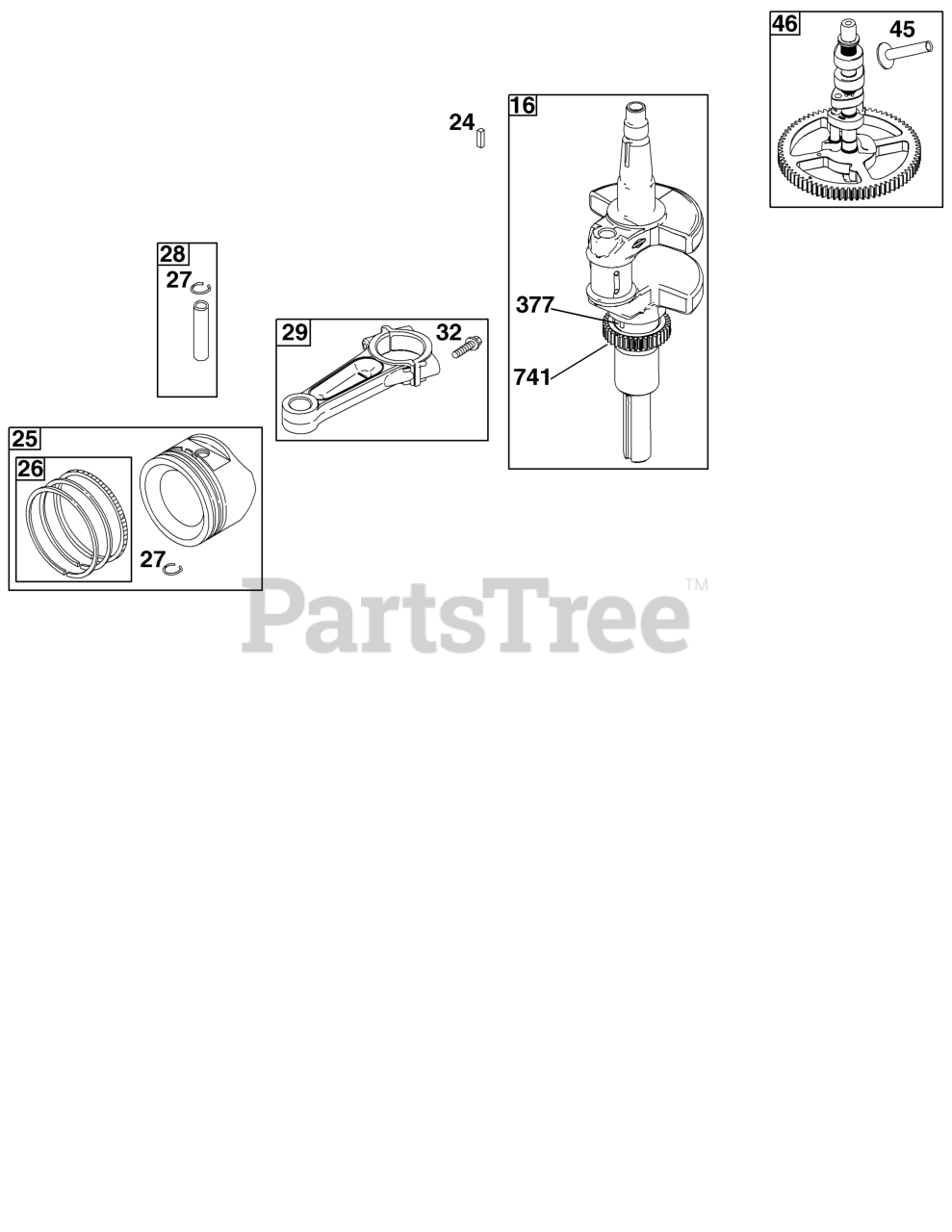

49V677-0004-G1 - Briggs & Stratton Vertical Engine Crankshaft Group Parts Diagram

Vertical Engine

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 593609

CRANKSHAFT
(Superseded to 597196)

$358.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 796335

KEY, Flywheel

$5.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 595790

PISTON ASSEMBLY

Note: (Standard)

$159.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 595791

PISTON ASSEMBLY

Note: (.020" Oversize)

$

$

Not available

26

Briggs & Stratton 595792

SET, Ring

Note: (Standard)

$18.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 595793

SET, Ring

Note: (.020" Oversize)

$

$

Not available

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 11

0

28

Briggs & Stratton 593650

PIN, Piston

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 593651

ROD, Connecting

$70.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 593608

CAMSHAFT

$122.99

$

Usually ships in 2-12 days

0

377

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 690980

GEAR, Timing

$14.99

$

In Stock, only 2 left!

0
