49S877-0022-G1 - Briggs & Stratton Vertical Engine Lubrication Group Parts Diagram

Vertical Engine

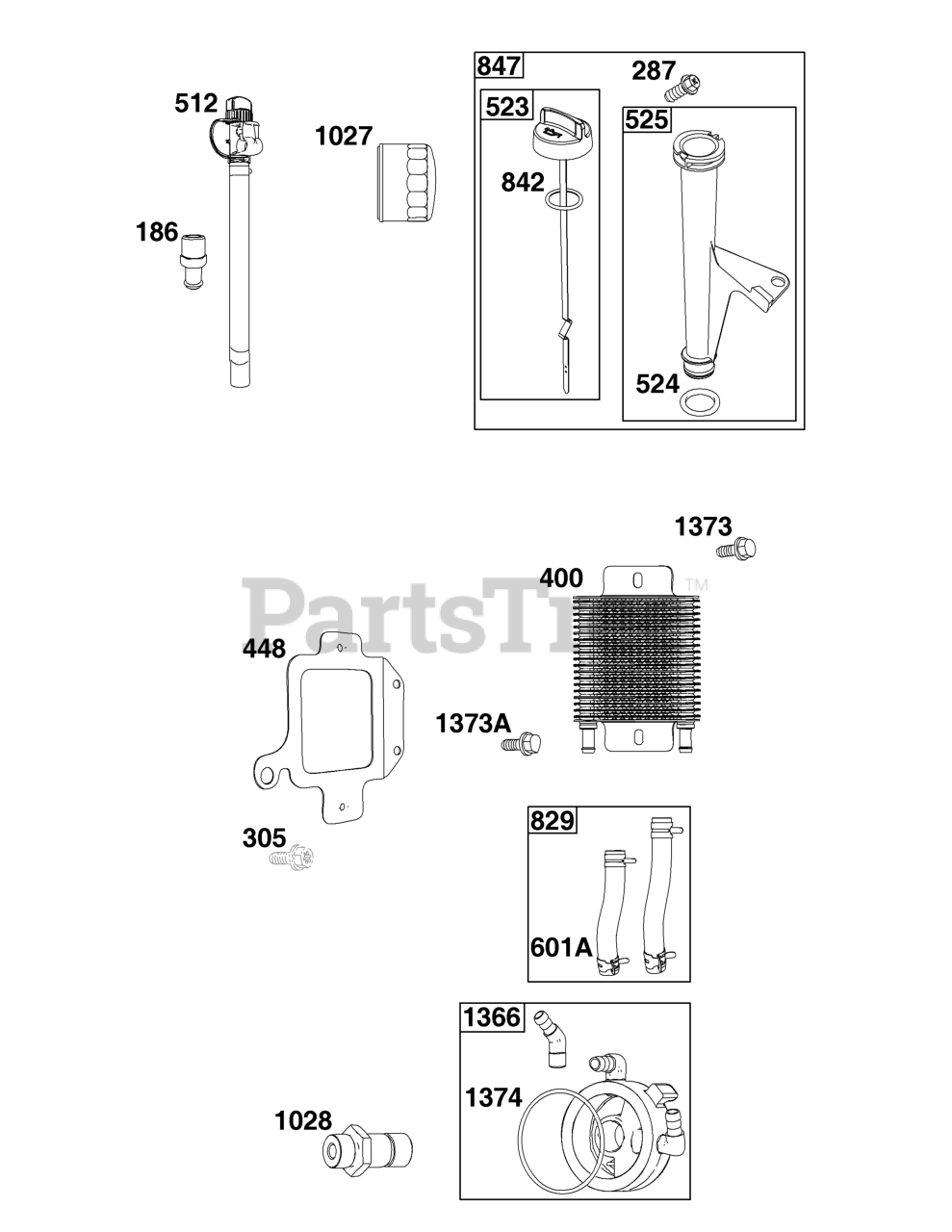

Lubrication Group Parts Diagram

  • Title

186

Briggs & Stratton 796532

CONNECTOR, Hose

$10.99

$

In Stock, only 2 left!

0

287

Briggs & Stratton 697820

SCREW

Note: (Dipstick Tube)

$4.49

$

In Stock, only 3 left!

0

305

SCREW

Note: (Part information located in Blower Housing and Air Cleaner Group.)

$

$

Not available

400

Briggs & Stratton 796862

COOLER, Oil

$130.99

$

Usually ships in 2-12 days

0

448

Briggs & Stratton 796865

BRACKET, Oil Cooler

$36.99

$

Usually ships in 2-12 days

0

512

Briggs & Stratton 594200

HOSE, Oil Drain

$25.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 594528

DIPSTICK

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

601A

CLAMP, Hose

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

829

Briggs & Stratton 796867

HOSE, Oil Cooler

$53.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 594609

DIPSTICK/TUBE ASSEMBLY
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0

1027

Briggs & Stratton 696854

FILTER, Oil

$13.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 796864

ADAPTER, Oil Filter

$50.99

$

Usually ships in 2-12 days

0

1366

Briggs & Stratton 799131

DIVERTER, Oil Cooler

$85.99

$

Usually ships in 2-12 days

0

1373

Briggs & Stratton 695629

SCREW

Note: (Oil Cooler Bracket)

$3.49

$

Usually ships in 2-12 days

0

1373A

Briggs & Stratton 799105

SCREW

Note: (Oil Cooler Bracket)

$3.99

$

Usually ships in 2-12 days

0

1374

Briggs & Stratton 796863

SEAL, O-Ring

Note: (Oil Cooler Diverter)

$5.99

$

In Stock, Qty 20+

0
