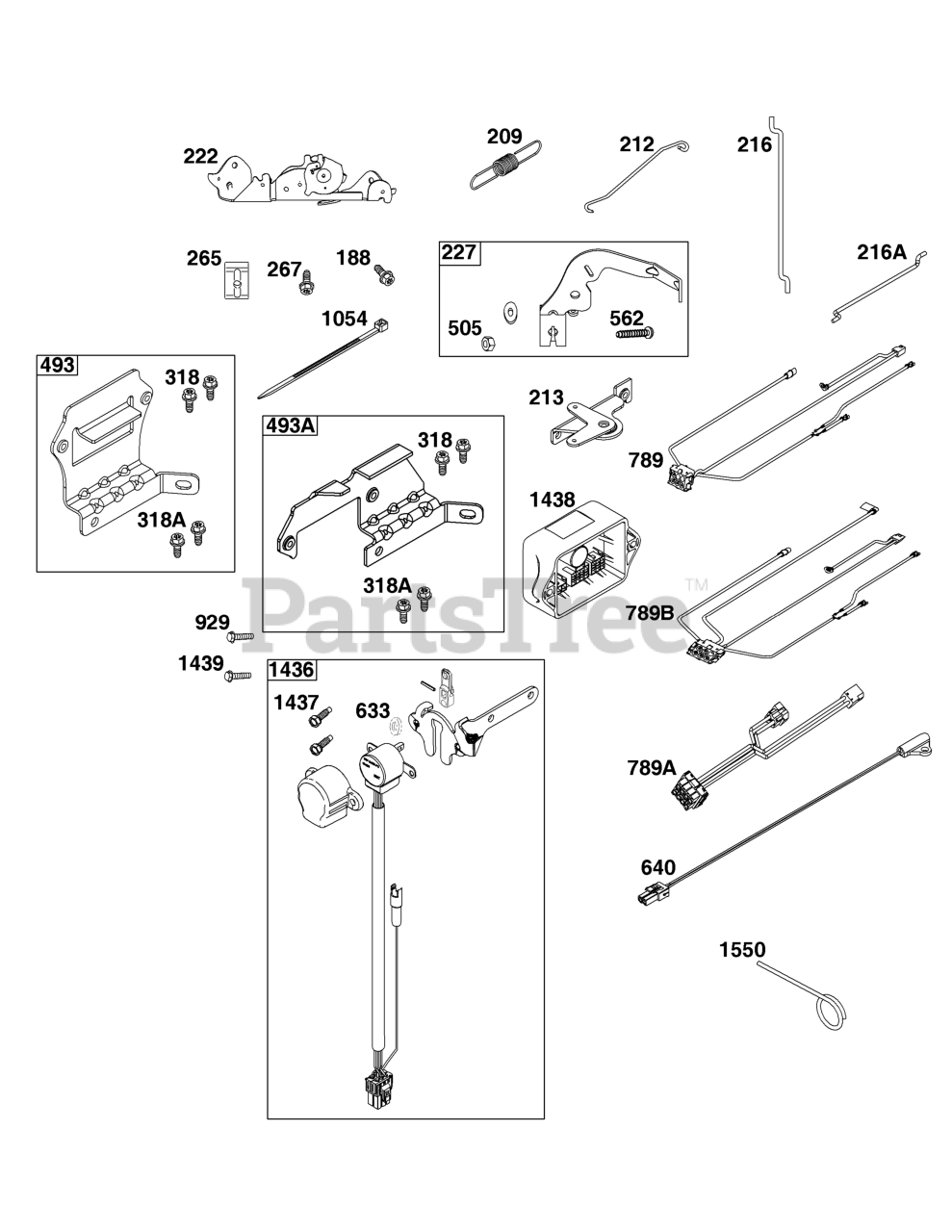

49S877-0020-H7 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

212

Briggs & Stratton 695238

LINK, Throttle

$7.99

$

In Stock, only 1 left!

0

216

Briggs & Stratton 796879

LINK, Choke

$7.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 798916

BRACKET, Control

$39.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 798856

LEVER, Governor Control

$23.99

$

In Stock, Qty 9

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 3 left!

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

318

Briggs & Stratton 691127

SCREW

Note: (Mounting Bracket)

$4.49

$

In Stock, Qty 13

0

318A

Briggs & Stratton 792629

SCREW

Note: (Mounting Bracket) (Electronic Choke Module To Mounting Bracket)

$3.49

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 797176

BRACKET, Mounting

$28.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 594923

KIT, Governor/Idle Spring

$11.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

633

SEAL, Choke/Throttle Shaft

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

640

Briggs & Stratton 796913

Wire Assembly-Thermistor

$33.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 797492

HARNESS, Wiring

$45.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 796914

HARNESS, Wiring

$39.99

$

Usually ships in 2-12 days

0

929

Briggs & Stratton 691003

SCREW

Note: (Choke Control Bracket)

$3.49

$

In Stock, Qty 9

0

929A

Briggs & Stratton 794904

SCREW

Note: (Choke Control Bracket)

$3.49

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1436

Briggs & Stratton 796918

MOTOR, Stepper/Bracket

$69.99

$

In Stock, only 2 left!

0

1437

Briggs & Stratton 699891

SCREW

Note: (Stepper/Bracket Motor)

$3.49

$

Usually ships in 2-12 days

0

1438

Briggs & Stratton 796352S

MODULE, Electronic Choke

$139.99

$

In Stock, only 3 left!

0

1550

Briggs & Stratton 595801

PIN, Speed Setting

$4.49

$

Usually ships in 2-12 days

0
