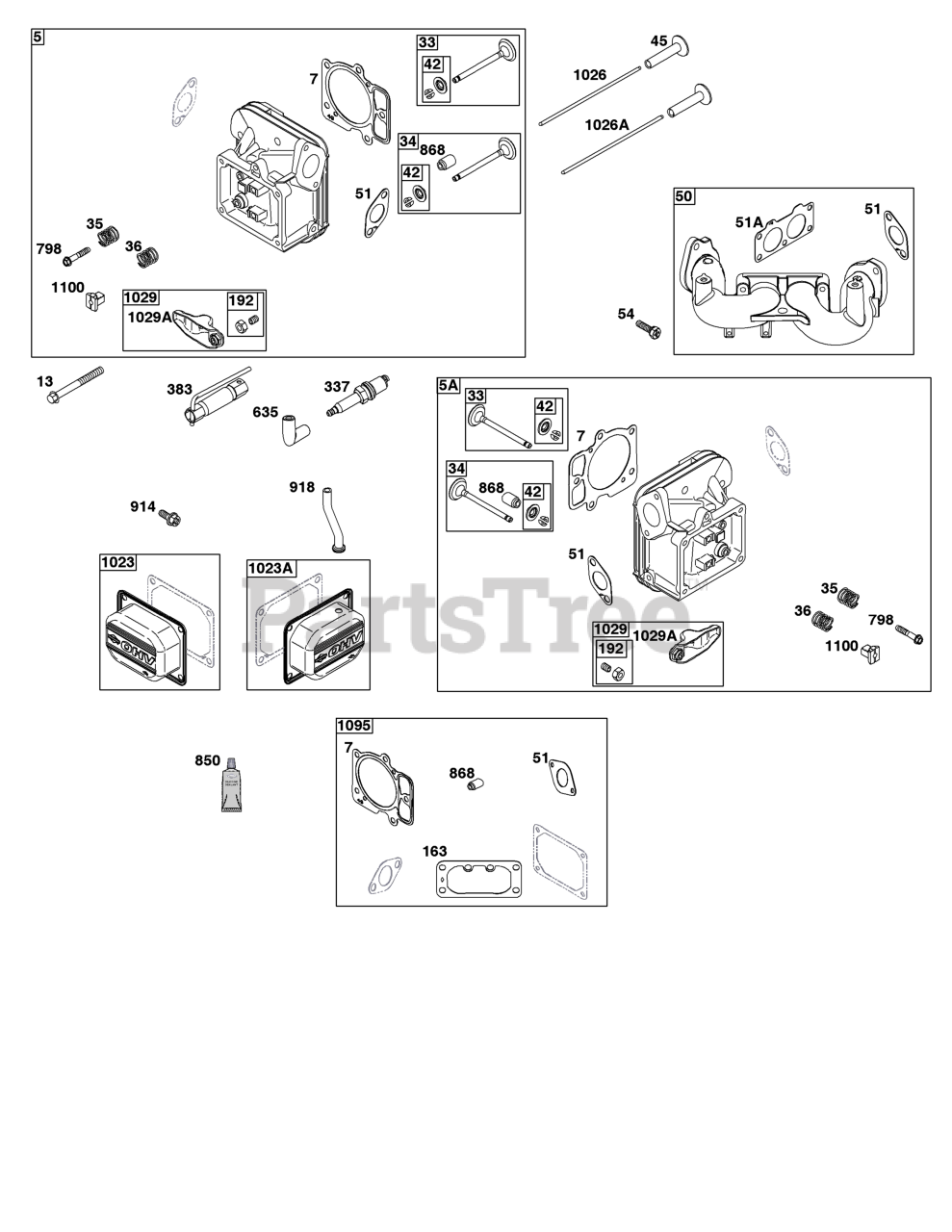

49S777-0002-G1 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

Cylinder Head Group Parts Diagram

  • Title

5

Briggs & Stratton 597136

HEAD, Cylinder
(Superseded to 84001918)

$235.99

$

In Stock, Qty 20+

0

5A

Briggs & Stratton 597137

HEAD, Cylinder
(Superseded to 84001919)

$202.99

$

In Stock, Qty 11

0

7

Briggs & Stratton 796851

GASKET, Cylinder Head

$32.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 592244

SCREW

Note: (Cylinder Head)

$3.49

$

In Stock, Qty 20+

0

33

Briggs & Stratton 793557

VALVE, Exhaust

$38.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 793556

VALVE, Intake

$32.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 694865

SPRING, Valve

Note: (Intake)

$5.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 694865

SPRING, Valve

Note: (Exhaust)

$5.49

$

In Stock, only 2 left!

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, Qty 18

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 798752

MANIFOLD, Intake

$132.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 594427

GASKET, Intake

$4.49

$

In Stock, Qty 6

0

51A

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 699816

SCREW

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 7

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

192

Briggs & Stratton 690083

ADJUSTER. Rocker Arm

$11.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 5

0

798

Briggs & Stratton 697890

SCREW

Note: (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

850

SEALANT, Liquid

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 691127

SCREW

Note: (Rocker Cover)

$4.49

$

In Stock, Qty 13

0

918

Briggs & Stratton 596163

HOSE, Vacuum

$7.99

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 793146

COVER, Rocker
(Superseded to 84003848)

$22.99

$

In Stock, Qty 8

0

1023A

Briggs & Stratton 499600

COVER, Rocker

$15.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 690981

ROD, Push
(Superseded to 597785)

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

ROD, Push

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

ARM, Rocker

$12.99

$

In Stock, Qty 11

0

1029A

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 796920

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$69.99

$

In Stock, only 2 left!

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 2 left!
