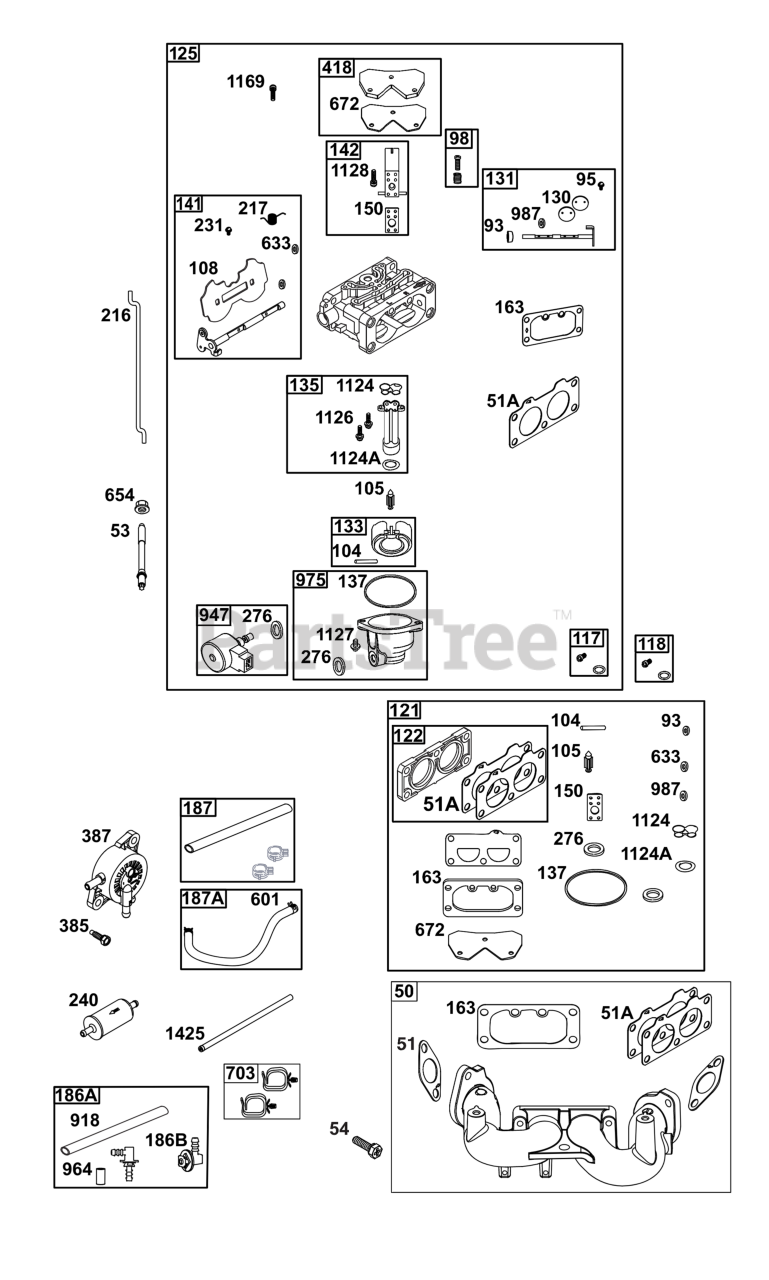

49R977-0015-B1 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

Carburetor and Fuel Supply Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 690951

STUD

Note: (Carburetor)

$7.49

$

In Stock, only 1 left!

0

54

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

93

Briggs & Stratton 845864

BUSHING, Throttle Shaft

$8.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 699721

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 698537

VALVE, Float Needle

$15.99

$

In Stock, Qty 19

0

108

Briggs & Stratton 699723

VALVE, Choke

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 842082

JET, Main

Note: (Standard)

$18.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 842081

JET, Main

Note: (High Altitude)

$18.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 799132

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$96.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 593425

SPACER, Carburetor

$11.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 593484

CARBURETOR

$315.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 796875

VALVE, Throttle

$16.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 796872

KIT, Throttle Shaft

$48.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 699724

FLOAT, Carburetor

$31.99

$

In Stock, only 2 left!

0

135

Briggs & Stratton 699729

TUBE, Fuel Transfer

$36.99

$

In Stock, Qty 16

0

137

Briggs & Stratton 690994

GASKET, Float Bowl

$6.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 799112

KIT, Choke Shaft

$42.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 796871

NOZZLE, Carburetor

$21.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 841649

GASKET, Nozzle

$5.99

$

In Stock, only 2 left!

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186A

CONNECTOR, Hose

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186B

CONNECTOR, Hose

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 593127

LINE, Fuel

Note: (Formed Hose)

$26.99

$

Usually ships in 2-12 days

0

216

LINK, Choke

Note: (Part information located in Controls Group.)

$

$

Not available

217

Briggs & Stratton 799771

SPRING, Choke Return

$7.99

$

In Stock, Qty 7

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 16

0

385

Briggs & Stratton 797409

SCREW

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

In Stock, Qty 20+

0

418

Briggs & Stratton 795912

PLATE, Carburetor Cover

$14.99

$

In Stock, only 2 left!

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 17

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 4 left!

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

672

Briggs & Stratton 690234

GASKET, Carburetor Plate

$12.99

$

In Stock, Qty 20+

0

703

Briggs & Stratton 691010

CLIP

$6.99

$

Usually ships in 2-12 days

0

918

HOSE, Vacuum

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

947

Briggs & Stratton 596039

SOLENOID, Fuel

$166.99

$

In Stock, only 1 left!

0

964

CAP, Connector

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

975

Briggs & Stratton 799114

BOWL, Float

$56.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 808183

SEAL, Choke/Throttle Shaft

$15.99

$

Usually ships in 2-12 days

0

1124

Briggs & Stratton 690988

SEAL, O-Ring

Note: (Fuel Transfer Tube)

$7.99

$

In Stock, Qty 20+

0

1124A

Briggs & Stratton 841653

SEAL, O-Ring

Note: (Fuel Transfer Tube)

$14.99

$

In Stock, Qty 17

0

1126

Briggs & Stratton 690991

SCREW

Note: (Fuel Transfer Tube)

$3.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0

1128

Briggs & Stratton 690990

SCREW

Note: (Carburetor Nozzle)

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

SCREW

Note: (Carburetor Cover Plate)

$3.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 845717

HOSE, Purge Line

$29.99

$

Usually ships in 2-12 days

0
