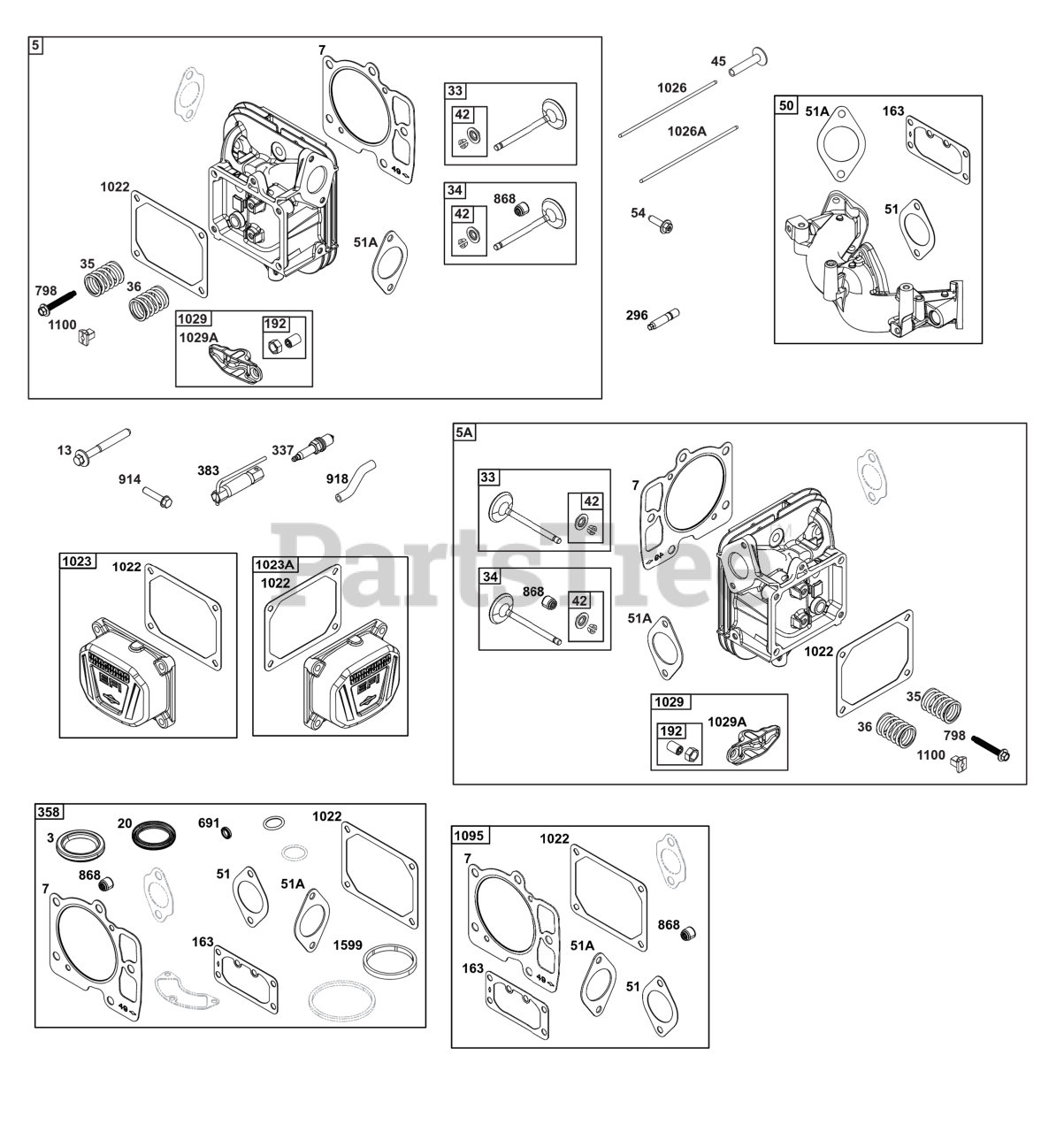

49E877-0021-G1 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 593838

HEAD, Cylinder
(Superseded to 84006255)

$365.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 593839

HEAD, Cylinder
(Superseded to 84006256)

$365.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 593485

GASKET, Cylinder Head

$32.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 592244

SCREW

Note: (Cylinder Head)

$3.49

$

In Stock, Qty 20+

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

33

Briggs & Stratton 593632

VALVE, Exhaust

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 793556

VALVE, Intake

$32.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 694865

SPRING, Valve

Note: (Intake)

$5.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 694865

SPRING, Valve

Note: (Exhaust)

$5.49

$

In Stock, only 2 left!

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 593850

MANIFOLD, Intake

$159.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 593849

GASKET, Intake

$3.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 593851

GASKET, Intake

$4.49

$

In Stock, only 2 left!

0

54

Briggs & Stratton 699816

SCREW

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 7

0

163

GASKET, Air Cleaner

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

192

Briggs & Stratton 84005276

ADJUSTER. Rocker Arm

$10.99

$

Usually ships in 2-12 days

0

296

Briggs & Stratton 591756

STUD

Note: (Muffler)

$4.49

$

In Stock, only 4 left!

0

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 20+

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

691

SEAL, Governor Shaft

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

798

Briggs & Stratton 697890

SCREW

Note: (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 593637

SCREW

Note: (Rocker Cover)

$5.49

$

Usually ships in 2-12 days

0

918

HOSE, Vacuum

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

1022

Briggs & Stratton 690971

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 593854

COVER, Rocker

$16.99

$

Usually ships in 2-12 days

0

1023A

Briggs & Stratton 593855

COVER, Rocker

$24.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 597785

ROD, Push

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

ROD, Push

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

ARM, Rocker

$12.99

$

In Stock, Qty 13

0

1029A

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 593928

GASKET SET, Valve

Note: (Service Kits can include parts not for this engine.)

$85.99

$

Usually ships in 2-12 days

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 2 left!

0

1599

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available
