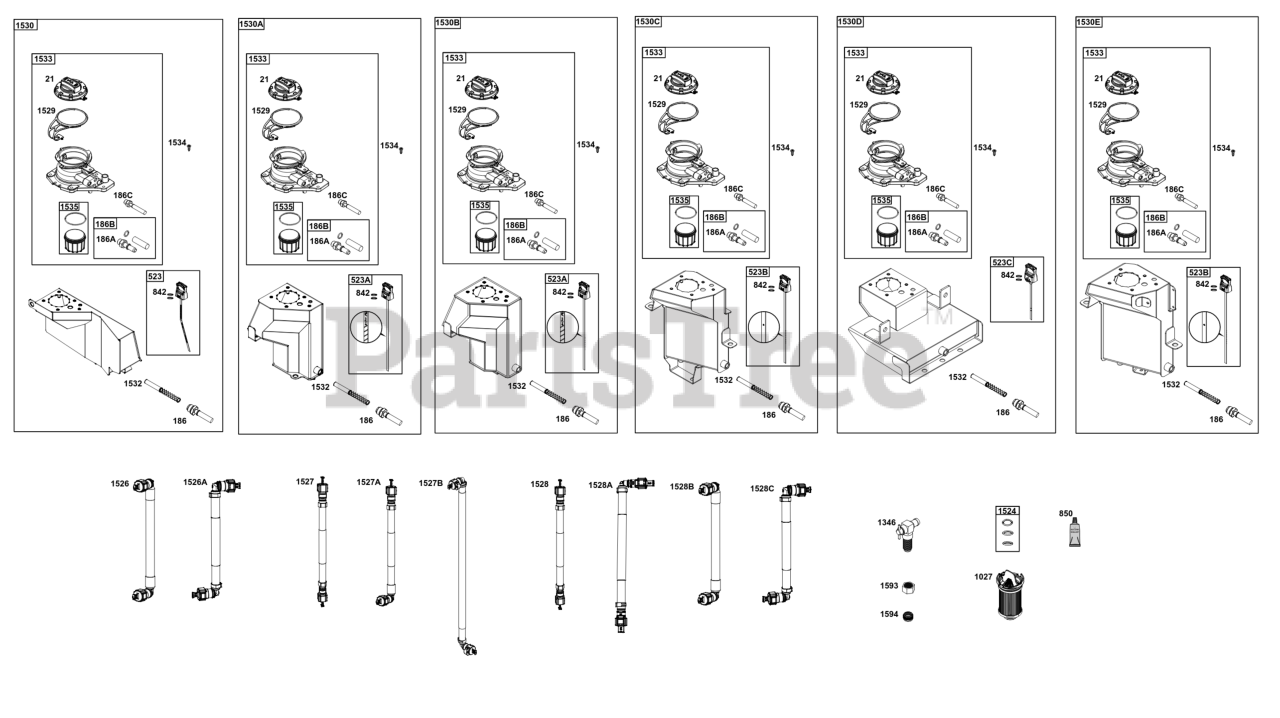

49E877-0020-G1 - Briggs & Stratton Vertical Engine Oil Guard Group Parts Diagram

Vertical Engine

Oil Guard Group Parts Diagram

  • Title

21

Briggs & Stratton 595931

CAP, Oil Fill

$29.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 84006592

CONNECTOR, Hose

Note: (Supply)

$21.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 847667

CONNECTOR, Hose

Note: (Scavenge)

$13.99

$

Usually ships in 2-12 days

0

186B

Briggs & Stratton 847344

CONNECTOR, Hose

Note: (Scavenge)

$14.99

$

Usually ships in 2-12 days

0

186C

Briggs & Stratton 847353

CONNECTOR, Hose

Note: (Vent)

$10.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 595602

DIPSTICK

$28.99

$

Usually ships in 2-12 days

0

523A

Briggs & Stratton 595603

DIPSTICK

Note: (Long)

$16.99

$

In Stock, only 1 left!

0

523B

Briggs & Stratton 84006989

DIPSTICK

Note: (Long)

$31.99

$

Usually ships in 2-12 days

0

523C

Briggs & Stratton 84006990

DIPSTICK

Note: (Short)

$

$

Currently unavailable

842

Briggs & Stratton 595935

SEAL-O RING

Note: (Dipstick Cap)

$3.99

$

Usually ships in 2-12 days

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

1027

Briggs & Stratton 84007094

FILTER, Oil

$33.99

$

In Stock, Qty 20+

0

1346

VALVE, Oil Drain Shut Off

Note: (See Product Parts Manual for servicing.)

$

$

Not available

1524

Briggs & Stratton 847342

KIT, O-Ring

$4.49

$

Usually ships in 2-12 days

0

1526

Briggs & Stratton 84006651

HOSE, OIL SUPPLY

Note: (11.89 Inch) (302mm)

$57.99

$

Usually ships in 2-12 days

0

1526A

Briggs & Stratton 84006649

HOSE, OIL SUPPLY

Note: (13.31 Inch) (338mm)

$56.99

$

Usually ships in 2-12 days

0

1526A

Briggs & Stratton 84006648

HOSE, OIL SUPPLY

Note: (15.04 Inch) (382mm)

$49.99

$

Usually ships in 2-12 days

0

1526A

Briggs & Stratton 84006653

HOSE, OIL SUPPLY

Note: (19.02 Inch ) (483mm)

$56.99

$

Usually ships in 2-12 days

0

1527

Briggs & Stratton 84006660

HOSE, OIL SCAVENGE

Note: (32.28 Inch) (820mm)

$57.99

$

Usually ships in 2-12 days

0

1527A

Briggs & Stratton 84006661

HOSE, OIL SCAVENGE

Note: (21.42 Inch) (544mm)

$55.99

$

Usually ships in 2-12 days

0

1527A

Briggs & Stratton 84006597

HOSE, OIL SCAVENGE

Note: (25.31 Inch) (643mm)

$55.99

$

Usually ships in 2-12 days

0

1527B

Briggs & Stratton 84006658

HOSE, OIL SCAVENGE

Note: (19.65 Inch) (499mm)

$56.99

$

Usually ships in 2-12 days

0

1527B

Briggs & Stratton 84006659

HOSE, OIL SCAVENGE

Note: (21.61 Inch) (549mm)

$57.99

$

Usually ships in 2-12 days

0

1528

Briggs & Stratton 595942

HOSE, Oil Vent

Note: (26.42 Inch) (671mm)

$50.99

$

Usually ships in 2-12 days

0

1528A

Briggs & Stratton 847351

HOSE, Oil Vent

Note: (18.27 Inch) (464mm)

$57.99

$

Usually ships in 2-12 days

0

1528A

Briggs & Stratton 595943

HOSE, Oil Vent

Note: (35.51 Inch) (902mm)

$60.99

$

Usually ships in 2-12 days

0

1528B

Briggs & Stratton 84006529

HOSE, Oil Vent

Note: (27.59 Inch) (700.8mm)

$74.99

$

Usually ships in 2-12 days

0

1528C

Briggs & Stratton 84007351

HOSE, Oil Vent

Note: (34.58 Inch) (878.4mm)

$69.99

$

Usually ships in 2-12 days

0

1529

Briggs & Stratton 595932

TETHER

$15.99

$

Usually ships in 2-12 days

0

1530

Briggs & Stratton 84006645

TANK, OIL

$790.99

$

Usually ships in 2-12 days

0

1530A

Briggs & Stratton 84006647

TANK, Oil

$889.99

$

In Stock, only 1 left!

0

1530B

Briggs & Stratton 84006646

TANK, OIL

Note: (Small Mounting Bracket On Bottom Of Tank)

$804.99

$

Usually ships in 2-12 days

0

1530C

Briggs & Stratton 84006644

TANK, OIL

$860.99

$

Usually ships in 2-12 days

0

1530D

Briggs & Stratton 84006643

TANK, Oil

$

$

Currently unavailable

1530E

Briggs & Stratton 84007269

TANK, Oil

$1304.99

$

Usually ships in 2-12 days

0

1532

Briggs & Stratton 847398

SCREEN, Oil

$56.99

$

Usually ships in 2-12 days

0

1533

Briggs & Stratton 595986

HOUSING, Oil Filter

$232.99

$

Usually ships in 2-12 days

0

1534

Briggs & Stratton 593637

SCREW

Note: (Oil Filter Housing)

$5.49

$

Usually ships in 2-12 days

0

1535

Briggs & Stratton 84003825

CUP, OIL FILTER

$29.99

$

Usually ships in 2-12 days

0

1593

NUT

Note: (Oil Drain Shut Off Valve) (See Product Parts Manual for servicing.)

$

$

Not available

1594

COVER, Oil Drain

Note: (See Product Parts Manual for servicing.)

$

$

Not available
