49E877-0020-G1 - Briggs & Stratton Vertical Engine Lubrication Group Parts Diagram

Vertical Engine

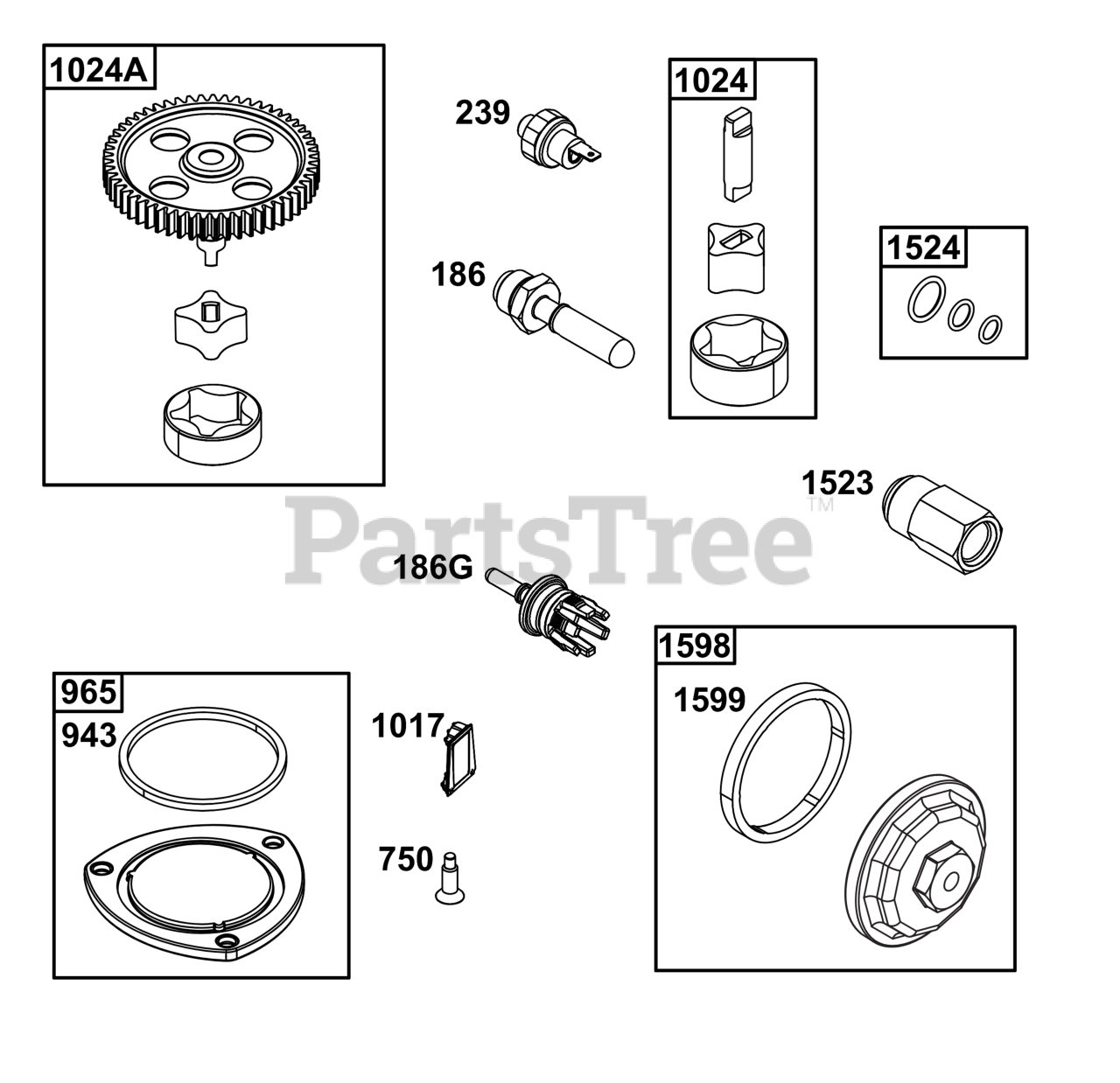

Lubrication Group Parts Diagram

  • Title

186

CONNECTOR, Hose

Note: (Supply) (Part information located in Oil Guard Group.)

$

$

Not available

186G

Briggs & Stratton 595947

CONNECTOR, Hose

Note: (Vent)

$8.49

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 792028

SWITCH, Oil Pressure

$28.99

$

In Stock, only 1 left!

0

750

Briggs & Stratton 796208

SCREW

Note: (Oil Pump Cover)

$3.99

$

In Stock, only 3 left!

0

943

Briggs & Stratton 596069

SEAL, O-Ring

Note: (Oil Pump Cover)

$11.99

$

Usually ships in 2-12 days

0

965

Briggs & Stratton 596070

COVER, Oil Pump

$11.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 796214

SCREEN, Oil Pump

$10.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 796220

PUMP, Oil

$31.99

$

In Stock, only 2 left!

0

1024A

Briggs & Stratton 596067

PUMP, Oil

$74.99

$

Usually ships in 2-12 days

0

1523

Briggs & Stratton 847341

VALVE, Check

$43.99

$

Usually ships in 2-12 days

0

1524

KIT, O-Ring

Note: (Part information located in Oil Guard Group.)

$

$

Not available

1598

Briggs & Stratton 84007281

COVER, Bypass

Note: (Oil Filter)

$22.99

$

Usually ships in 2-12 days

0

1599

Briggs & Stratton 84007010

SEAL, O-Ring

Note: (Bypass Cover)

$7.99

$

Usually ships in 2-12 days

0
