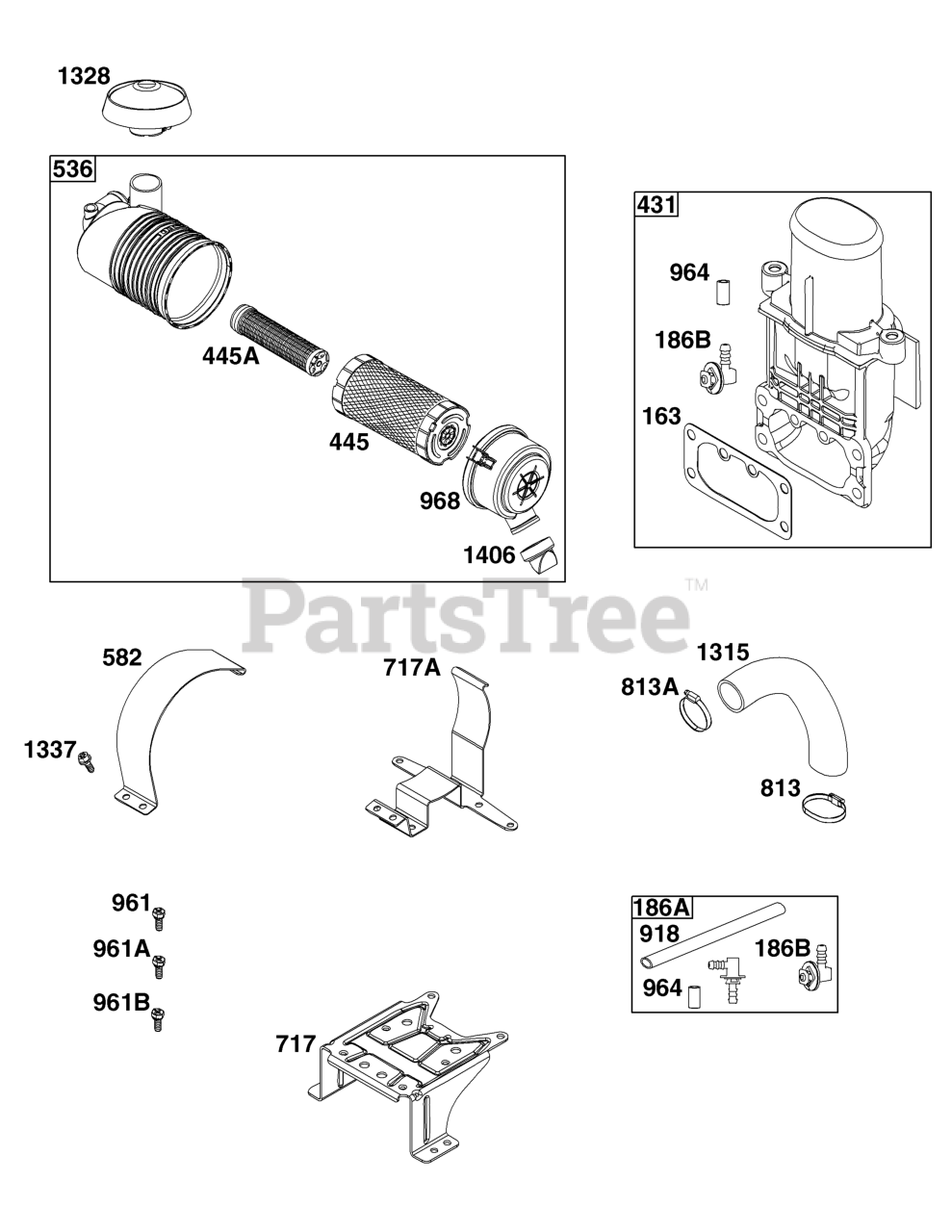

49E877-0014-G1 - Briggs & Stratton Vertical Engine Air Cleaner Group Parts Diagram

Vertical Engine

Air Cleaner Group Parts Diagram

  • Title
163

GASKET, Air Cleaner

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

186A

CONNECTOR, Hose

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

186B

CONNECTOR, Hose

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

431

Briggs & Stratton 593630

ELBOW, Intake

$55.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 841497

FILTER, A/C Cartridge

$34.99

$

In Stock, Qty 20+

0

445A

Briggs & Stratton 821136

FILTER, A/C Cartridge

$33.99

$

In Stock, Qty 6

0

536

$286.99

$

Usually ships in 2-12 days

0

582

Briggs & Stratton 593618

CLAMP, Air Cleaner

$28.99

$

Usually ships in 2-12 days

0

717

Briggs & Stratton 593619

BRACKET, Air Cleaner

$62.99

$

Usually ships in 2-12 days

0

717A

Briggs & Stratton 593620

BRACKET, Air Cleaner

$70.99

$

Usually ships in 2-12 days

0

$10.99

$

Usually ships in 2-12 days

0

$9.49

$

Usually ships in 2-12 days

0

918

HOSE, Vacuum

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

961

Briggs & Stratton 691108

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, Qty 20+

0

961A

Briggs & Stratton 593616

SCREW

Note: (Air Cleaner Bracket)

$4.99

$

Usually ships in 2-12 days

0

961B

Briggs & Stratton 593617

SCREW

Note: (Air Cleaner Bracket)

$7.99

$

Usually ships in 2-12 days

0

964

CAP, Connector

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

968

Briggs & Stratton 593627

COVER, Air Cleaner

$110.99

$

Usually ships in 2-12 days

0

1315

Briggs & Stratton 593623

HOSE, Air Cleaner

$73.99

$

Usually ships in 2-12 days

0

1328

Briggs & Stratton 809907

CAP, A/C Rain

$63.99

$

In Stock, only 1 left!

0

1337

Briggs & Stratton 593616

SCREW

Note: (Air Cleaner Clamp)

$4.99

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 593628

VALVE, Debris

$24.99

$

Usually ships in 2-12 days

0
