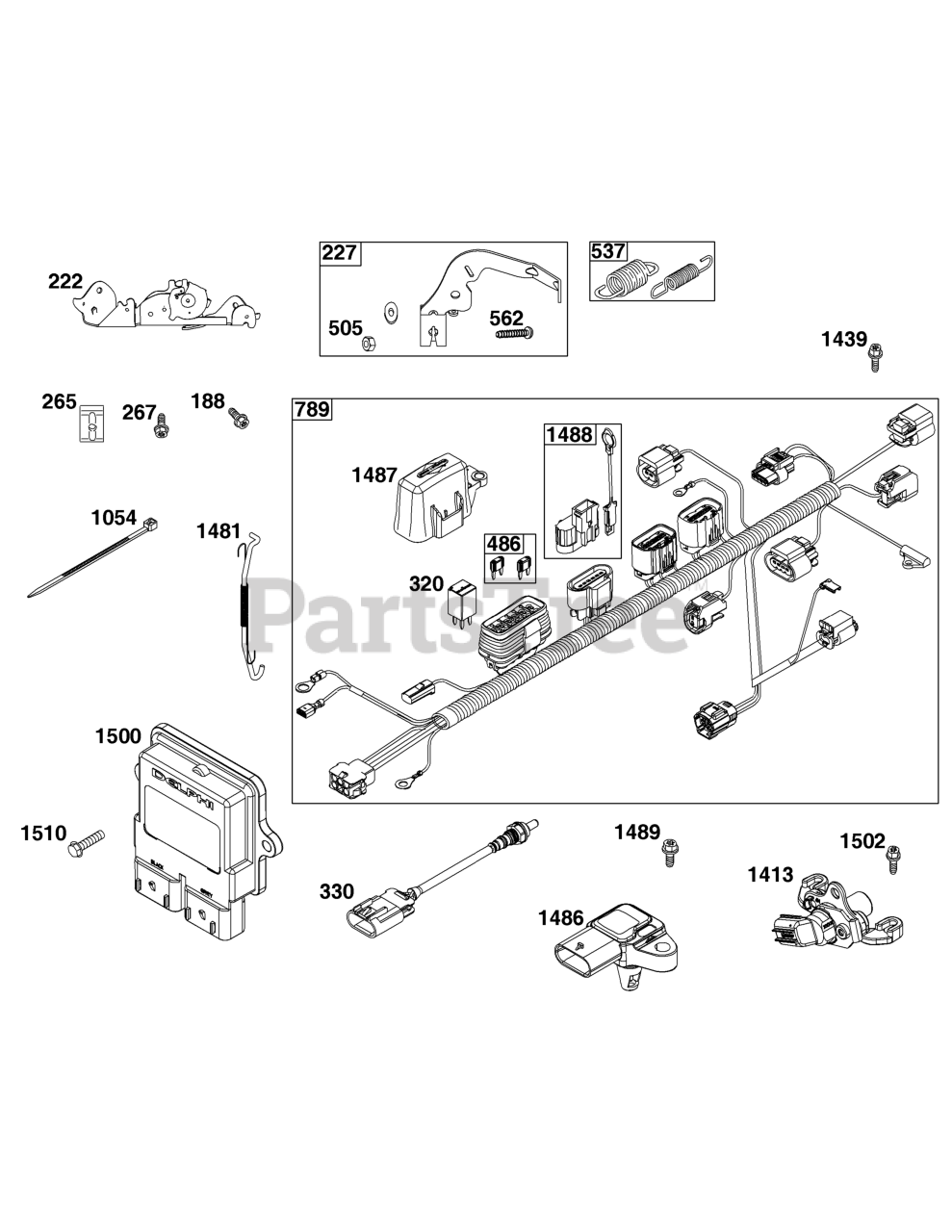

49E877-0010-G1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

222

Briggs & Stratton 798916

BRACKET, Control

$39.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 593857

LEVER, Governor Control

$39.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

320

Briggs & Stratton 593902

RELAY(S)

$43.99

$

Usually ships in 2-12 days

0

330

Briggs & Stratton 593870

SENSOR, Oxygen

$136.99

$

In Stock, only 1 left!

0

486

Briggs & Stratton 593901

FUSE

$13.99

$

Usually ships in 2-12 days

0

486

Briggs & Stratton 593901

FUSE

$13.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 594918

KIT, Governor/Idle Spring

$17.99

$

In Stock, only 2 left!

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 593866

HARNESS, Wiring

$272.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1413

Briggs & Stratton 593889

SENSOR, Speed
(Superseded to 84006538)

$41.99

$

In Stock, only 1 left!

0

1439

Briggs & Stratton 592577

SCREW

Note: (Thermistor Wire Assembly)

$3.99

$

In Stock, only 1 left!

0

1439

Briggs & Stratton 592577

SCREW

Note: (Thermistor Wire Assembly)

$3.99

$

In Stock, only 1 left!

0

1481

Briggs & Stratton 593853

LINK/SPRING ASSEMBLY

$13.99

$

Usually ships in 2-12 days

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$128.99

$

Usually ships in 2-12 days

0

1487

Briggs & Stratton 593900

COVER, Fuse

$12.99

$

Usually ships in 2-12 days

0

1488

Briggs & Stratton 593899

COVER, Diagnostic

$12.99

$

Usually ships in 2-12 days

0

1488

Briggs & Stratton 593899

COVER, Diagnostic

$12.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 691127

SCREW

Note: (TEMP/MAP Sensor)

$4.49

$

In Stock, Qty 13

0

1500

Briggs & Stratton 593878

MODULE, Electronic Control
(Superseded to 846484)

Note: (Not Programmed)

$262.99

$

Usually ships in 2-12 days

0

1502

Briggs & Stratton 594363

SCREW

Note: (Speed Sensor)

$3.99

$

Usually ships in 2-12 days

0

1510

Briggs & Stratton 593848

SCREW

Note: (Electronic Control Module)

$3.99

$

Usually ships in 2-12 days

0
