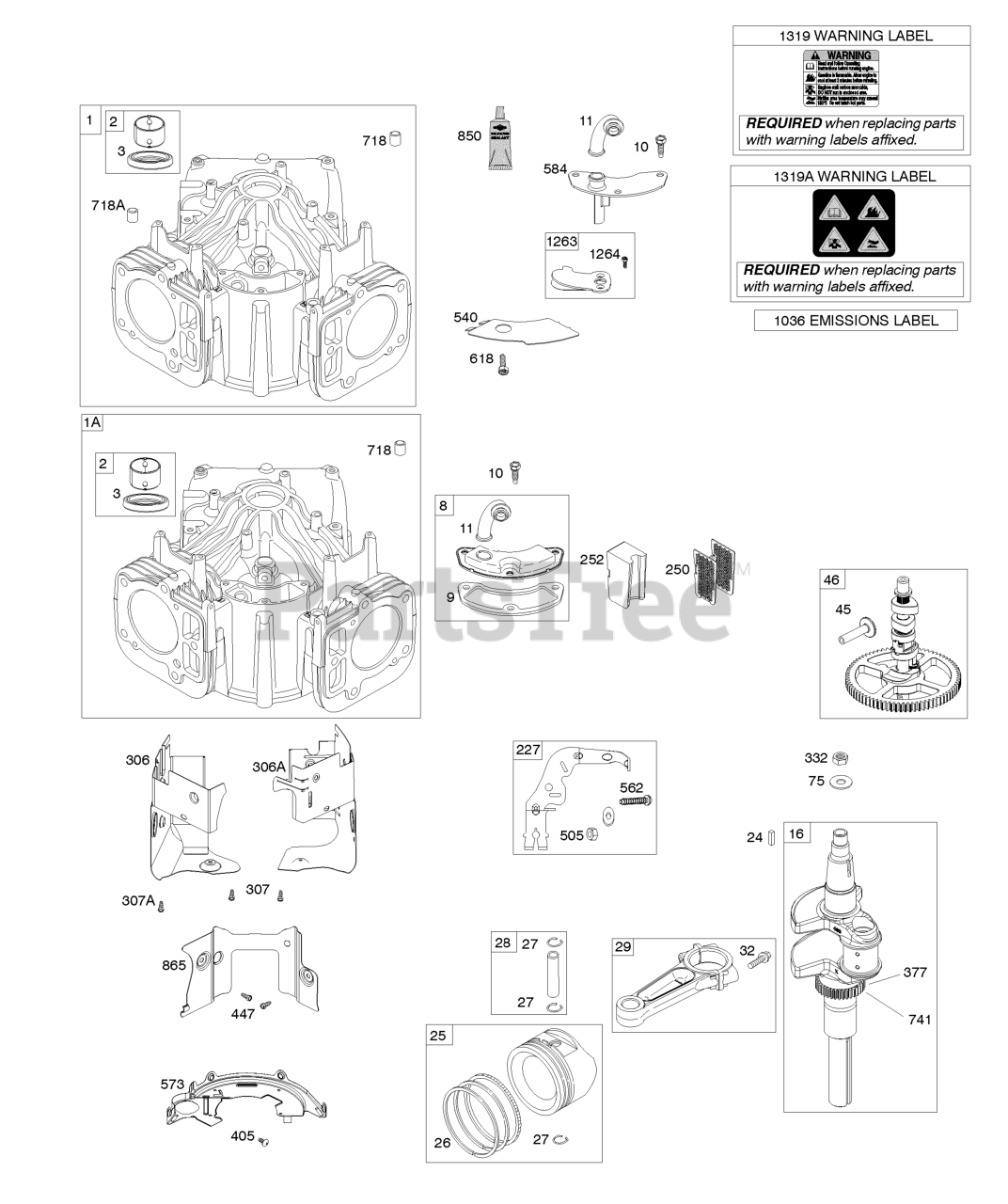

49E877-0009-G1 - Briggs & Stratton Vertical Engine Cylinder, Crankshaft, Camshaft, Air Guides Parts Diagram

Vertical Engine

Cylinder, Crankshaft, Camshaft, Air Guides Parts Diagram

  • Title

1

Briggs & Stratton 594938

CYLINDER ASSEMBLY

Note: Used After Code Date 15111500

$677.99

$

Usually ships in 2-12 days

0

1A

Briggs & Stratton 593645

Cylinder Assembly

Note: Used Before Code Date 15111600

$530.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 593660

KIT, Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 593643

SEAL, Oil

Note: (Magneto Side)

$9.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 792185

Breather Assembly

$

$

Not available

9

Briggs & Stratton 690937

Gasket-Breather

Note: Used Before Code Date 15112300

$8.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 792184

Tube-Breather

Note: Used Before Code Date 15112300

$14.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 594163

TUBE, Breather

Note: Used After Code Date 15112200

$7.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 593609

CRANKSHAFT
(Superseded to 597196)

$358.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 796335

KEY, Flywheel

$5.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 593648

Piston Assembly

Note: (.020" Oversize)

$189.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 593646

Piston Assembly
(Superseded to 595790)

Note: (Standard)

$159.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 593649

Ring Set

Note: (.020" Oversize)

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 593647

Ring Set

Note: (Standard)

$52.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 593650

PIN, Piston

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 593651

ROD, Connecting

$70.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, Qty 19

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 593841

CAMSHAFT

$109.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 691056

WASHER

Note: (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 593857

LEVER, Governor Control

$39.99

$

Usually ships in 2-12 days

0

250

Briggs & Stratton 690957

Retainer-Breather

Note: Used Before Code Date 15112300

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 794389

Collector-Oil

Note: Used Before Code Date 15112300

$7.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 796852

SHIELD, Cylinder
(Superseded to 84002166)

Note: (Cylinder #1)

$37.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 596065

SHIELD, Cylinder

Note: (Cylinder #2)

$42.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

307A

Briggs & Stratton 691108

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 691059

NUT

Note: (Flywheel)

$4.49

$

In Stock, only 1 left!

0

377

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

405

Briggs & Stratton 594937

SCREW

Note: (Back Plate)

$3.99

$

Usually ships in 2-12 days

0

447

Briggs & Stratton 691003

SCREW

Note: (Air Guide Cover)

$3.49

$

In Stock, Qty 9

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

540

Briggs & Stratton 594325

PLATE, Baffle

$7.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 594903

PLATE, Back

$54.99

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 594164

COVER, Breather Passage

$9.49

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 594326

SCREW

Note: (Baffle Plate)

$5.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 594988

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 690980

GEAR, Timing

$14.99

$

In Stock, only 2 left!

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

865

Briggs & Stratton 591667

COVER, Air Guide

Note: (Valley)

$43.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1263

Briggs & Stratton 594166

REED, Breather

$9.49

$

Usually ships in 2-12 days

0

1264

Briggs & Stratton 594165

SCREW

Note: (Breather Reed)

$3.49

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

$18.99

$

Usually ships in 2-12 days

0
