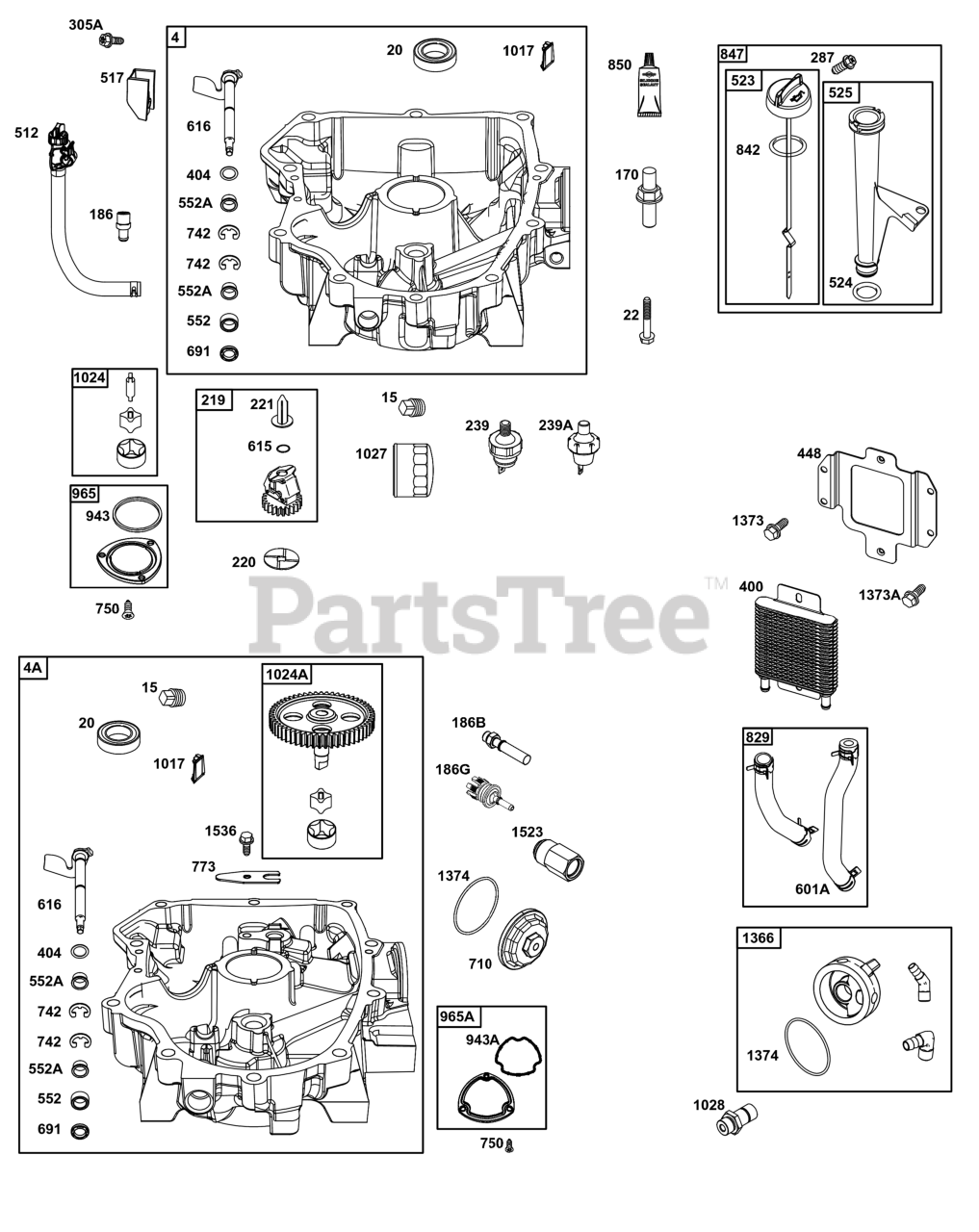

49E877-0007-G1 - Briggs & Stratton Vertical Engine Engine Sump, Oil Pump, Oil Cooler Assembly Parts Diagram

Vertical Engine

Engine Sump, Oil Pump, Oil Cooler Assembly Parts Diagram

  • Title

4

Briggs & Stratton 593652

SUMP, Engine

$226.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 593644

SEAL, Oil

Note: (PTO Side)

$16.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

170

Briggs & Stratton 593903

STUD

Note: (Crankcase Cover/Sump)

$16.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 796532

CONNECTOR, Hose

Note: (Oil Drain)

$10.99

$

In Stock, only 2 left!

0

186D

Briggs & Stratton 847344

CONNECTOR, Hose

Note: (Scavenge)

$14.99

$

Usually ships in 2-12 days

0

186E

Briggs & Stratton 847343

CONNECTOR, Hose

Note: (Supply)

$18.99

$

Usually ships in 2-12 days

0

186G

Briggs & Stratton 595947

CONNECTOR, Hose

Note: (Vent)

$8.49

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 793338

GEAR, Governor

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 799772

WASHER

Note: (Governor Gear)

$6.49

$

In Stock, Qty 20+

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

239A

Briggs & Stratton 697049

SWITCH, Oil Pressure

$28.99

$

In Stock, only 1 left!

0

287

Briggs & Stratton 697820

SCREW

Note: (Dipstick Tube)

$4.49

$

In Stock, only 3 left!

0

305A

Briggs & Stratton 593634

SCREW

Note: (Blower Housing)

$11.99

$

Usually ships in 2-12 days

0

400

Briggs & Stratton 796862

COOLER, Oil

$130.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 690442

WASHER

Note: (Governor Crank)

$3.49

$

In Stock, Qty 5

0

448

Briggs & Stratton 593631

BRACKET, Oil Cooler

$31.99

$

Usually ships in 2-12 days

0

512

Briggs & Stratton 593635

HOSE, Oil Drain

$25.99

$

Usually ships in 2-12 days

0

517

Briggs & Stratton 593633

RETAINER, Oil Drain

$7.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 594528

DIPSTICK

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 796638

BUSHING, Governor Crank

$6.99

$

In Stock, Qty 9

0

552A

Briggs & Stratton 690553

BUSHING, Governor Crank

$7.49

$

In Stock, Qty 9

0

601A

Briggs & Stratton 841597

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

In Stock, only 3 left!

0

615

Briggs & Stratton 698290

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 9

0

616

Briggs & Stratton 691045

CRANK, Governor

$19.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$5.99

$

In Stock, Qty 20+

0

710

Briggs & Stratton 595946

COVER, Oil Filter

$14.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 690328

RETAINER, E Ring

$4.49

$

In Stock, Qty 6

0

750

Briggs & Stratton 796208

SCREW

Note: (Oil Pump Cover)

$3.99

$

In Stock, only 3 left!

0

773

Briggs & Stratton 596068

RETAINER

$4.49

$

Usually ships in 2-12 days

0

829

Briggs & Stratton 593845

Hose-Oil Cooler

Note: (Oil Cooler Hose)

$53.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 594609

DIPSTICK/TUBE ASSEMBLY
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 593642

SEAL, O-Ring

Note: (Oil Pump Cover)

$9.49

$

In Stock, only 1 left!

0

965

Briggs & Stratton 796221

COVER, Oil Pump

$10.99

$

In Stock, only 1 left!

0

1017

Briggs & Stratton 796214

SCREEN, Oil Pump

$10.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 796220

PUMP, Oil

$31.99

$

In Stock, only 2 left!

0

1027

Briggs & Stratton 696854

FILTER, Oil

$13.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 796864

ADAPTER, Oil Filter

$50.99

$

Usually ships in 2-12 days

0

1366

Briggs & Stratton 799131

DIVERTER, Oil Cooler

$85.99

$

Usually ships in 2-12 days

0

1373

Briggs & Stratton 695629

SCREW

Note: (Oil Cooler Bracket)

$3.49

$

Usually ships in 2-12 days

0

1373A

Briggs & Stratton 799105

SCREW

Note: (Oil Cooler Bracket)

$3.99

$

Usually ships in 2-12 days

0

1374

Briggs & Stratton 796863

SEAL, O-Ring

Note: (Oil Cooler Diverter)

$5.99

$

In Stock, Qty 20+

0

1523

Briggs & Stratton 847341

VALVE, Check

$43.99

$

Usually ships in 2-12 days

0

1536

Briggs & Stratton 690810

SCREW

Note: (Retainer)

$3.49

$

In Stock, only 2 left!

0
