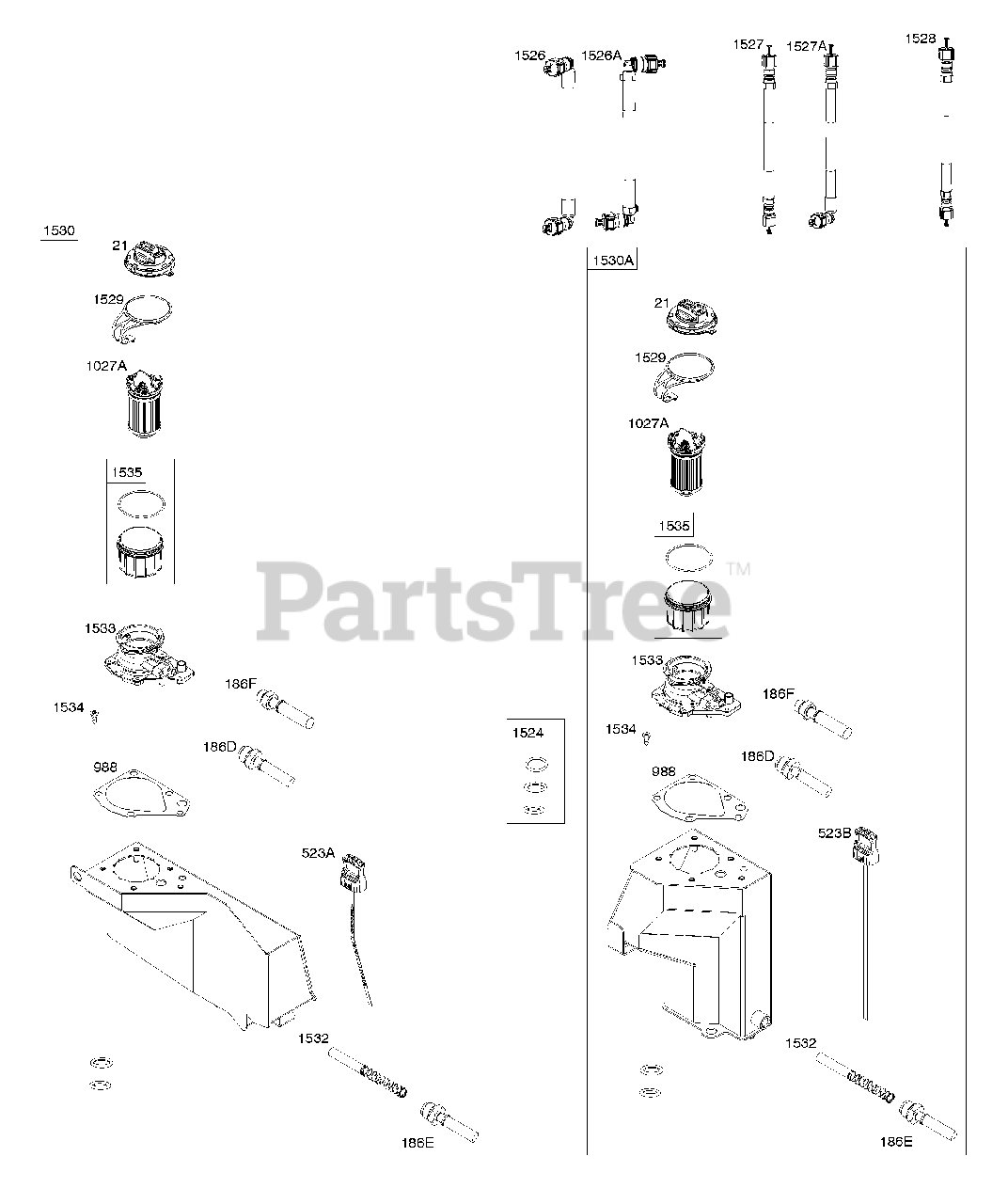

49E877-0003-G1 - Briggs & Stratton Vertical Engine Oil Guard Tanks, Hoses Parts Diagram

Vertical Engine

Oil Guard Tanks, Hoses Parts Diagram

  • Title

21

Briggs & Stratton 595931

Cap-Oil Fill

$29.99

$

Usually ships in 2-12 days

0

186D

Briggs & Stratton 847344

CONNECTOR, Hose

Note: (Scavenge)

$14.99

$

Usually ships in 2-12 days

0

186E

Briggs & Stratton 847343

CONNECTOR, Hose

Note: (Supply)

$18.99

$

Usually ships in 2-12 days

0

186F

Briggs & Stratton 847353

CONNECTOR, Hose

Note: (Vent)

$10.99

$

Usually ships in 2-12 days

0

988

Briggs & Stratton 595936

Gasket-Oil Adapter

$

$

Not available

1524

Briggs & Stratton 847342

KIT, O-Ring

$4.49

$

Usually ships in 2-12 days

0

1526

Briggs & Stratton 595937

HOSE, Oil Supply
(Superseded to 84006652)

Note: (302mm Long)

$45.99

$

Usually ships in 2-12 days

0

1526A

Briggs & Stratton 595938

HOSE, Oil Supply
(Superseded to 84006654)

Note: (442mm Long)

$75.99

$

Usually ships in 2-12 days

0

1526A

Briggs & Stratton 847349

HOSE, Oil Supply
(Superseded to 84006650)

Note: (338mm Long)

$74.99

$

Usually ships in 2-12 days

0

1527

Briggs & Stratton 595939

HOSE, Oil Scavenge
(Superseded to 84006660)

Note: (820mm Long)

$57.99

$

Usually ships in 2-12 days

0

1527A

Briggs & Stratton 595940

HOSE, Oil Scavenge
(Superseded to 84006661)

Note: (544mm Long)

$55.99

$

Usually ships in 2-12 days

0

1527A

Briggs & Stratton 595941

HOSE, Oil Scavenge
(Superseded to 84006597)

Note: (643mm Long)

$55.99

$

Usually ships in 2-12 days

0

1528

Briggs & Stratton 595943

HOSE, Oil Vent

Note: (1018mm Long)

$60.99

$

Usually ships in 2-12 days

0

1528

Briggs & Stratton 595942

HOSE, Oil Vent

Note: (671mm Long)

$50.99

$

Usually ships in 2-12 days

0

1529

Briggs & Stratton 595932

TETHER

$15.99

$

Usually ships in 2-12 days

0

1530

Briggs & Stratton 595944

TANK, Oil

Note: (Wide)(Mounting Grommets Available through OEM)

$917.99

$

Usually ships in 2-12 days

0

1530A

Briggs & Stratton 595945

TANK, Oil
(Superseded to 84006647)

Note: (Tall)(Mounting Grommets Available through OEM)

$889.99

$

In Stock, only 1 left!

0

1532

Briggs & Stratton 847398

SCREEN, Oil

$56.99

$

Usually ships in 2-12 days

0

1533

Briggs & Stratton 595986

HOUSING, Oil Filter

$232.99

$

Usually ships in 2-12 days

0

1534

Briggs & Stratton 593637

SCREW

Note: (Oil Filter Housing)

$5.49

$

Usually ships in 2-12 days

0

1535

Briggs & Stratton 595987

CUP, Oil Filter

$28.99

$

Usually ships in 2-12 days

0
