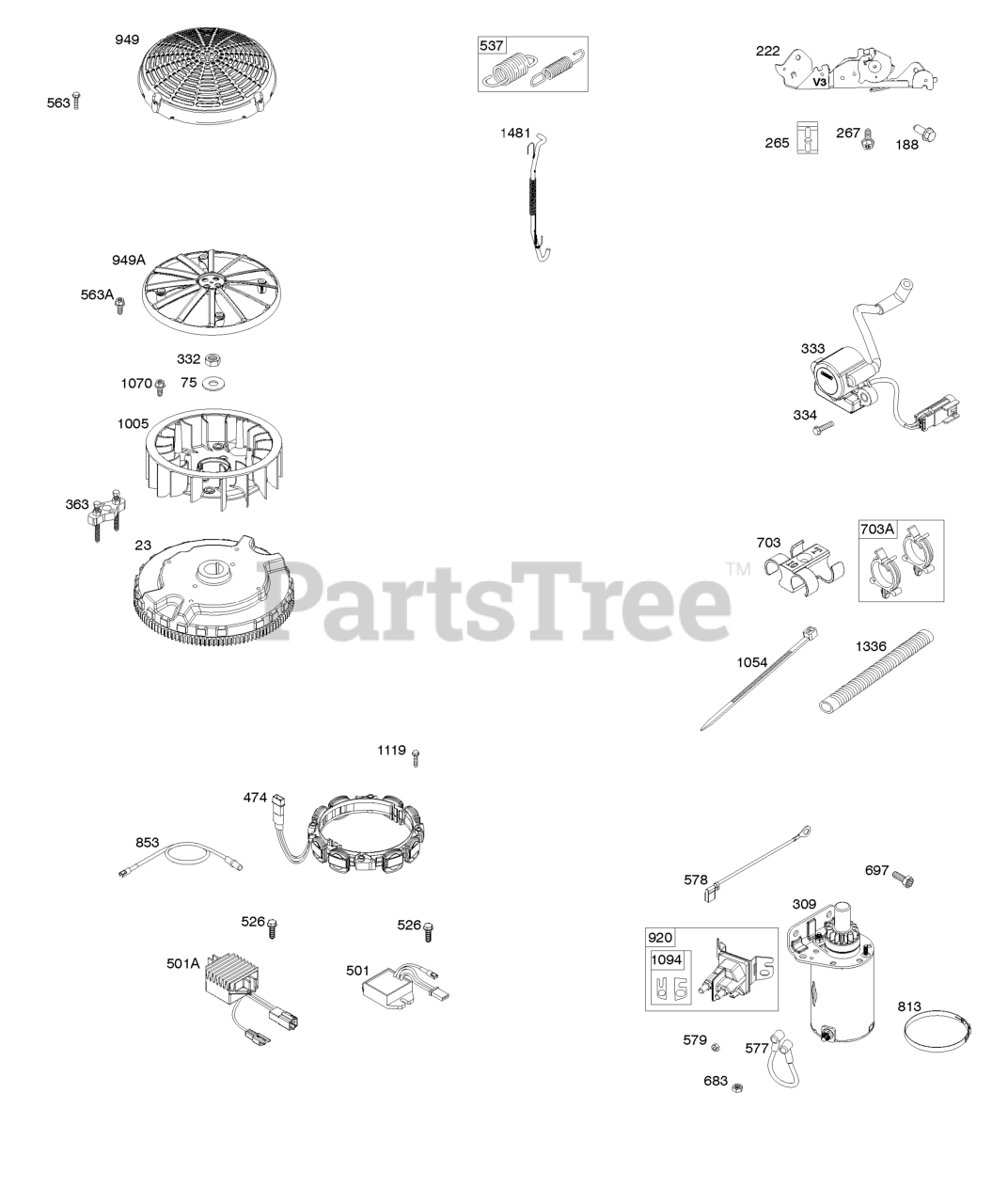

49C877-0002-G1 - Briggs & Stratton Vertical Engine Flywheel, Alternator, Starter Parts Diagram

Vertical Engine

Flywheel, Alternator, Starter Parts Diagram

  • Title

23

Briggs & Stratton 595599

Flywheel

$274.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 691056

WASHER

Note: (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

222

Briggs & Stratton 798916

BRACKET, Control

$39.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 590476

MOTOR, Starter

$177.99

$

In Stock, only 1 left!

0

332

Briggs & Stratton 691059

NUT

Note: (Flywheel)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 593856

ARMATURE, Magneto

$65.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 593848

SCREW

Note: (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19621

Puller-Flywheel

$224.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 593844

ALTERNATOR

Note: (20 AMP DC Regulated)

$124.99

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 593843

REGULATOR

$57.99

$

In Stock, only 1 left!

0

526

Briggs & Stratton 691092

Screw

Note: (Regulator)

$3.99

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 594916

KIT, Governor/Idle Spring

$13.99

$

In Stock, only 1 left!

0

563

Briggs & Stratton 799360

SCREW

Note: (Debris Screen Guard)

$3.99

$

Usually ships in 2-12 days

0

563A

Briggs & Stratton 698425

SCREW

Note: (Debris Screen Guard)

$3.49

$

In Stock, Qty 20+

0

577

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 1 left!

0

578

Briggs & Stratton 595064

Wire Assembly

$17.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 591909

SCREW

Note: (Starter Motor) (Drive Cap)

$2.99

$

In Stock, Qty 10

0

703

Briggs & Stratton 593863

CLIP

$6.99

$

Usually ships in 2-12 days

0

703A

Briggs & Stratton 593846

CLIP

Note: (Fuel Pump)

$7.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 595087

Clamp

$7.99

$

Usually ships in 2-12 days

0

853

Briggs & Stratton 593907

Adapter-Wire

$13.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 595150

Solenoid-Starter

$35.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 799357

GUARD, Debris Screen

$45.99

$

In Stock, only 2 left!

0

949A

Briggs & Stratton 593206

GUARD, Debris Screen

$39.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 593640

FAN, Flywheel

$26.99

$

In Stock, only 1 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 593638

SCREW

Note: (Flywheel Fan)

$5.99

$

Usually ships in 2-12 days

0

1094

Briggs & Stratton 595170

Pad-Solenoid

$20.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1336

Briggs & Stratton 841015

SHIELD, Wire Protective
(Superseded to 846822)

$11.99

$

Usually ships in 2-12 days

0

1481

Briggs & Stratton 593853

LINK/SPRING ASSEMBLY

$13.99

$

Usually ships in 2-12 days

0
