49740 - Gravely 32" Deck for Pro-Walk Mower MOWER DRIVE Parts Diagram

32" Deck for Pro-Walk Mower

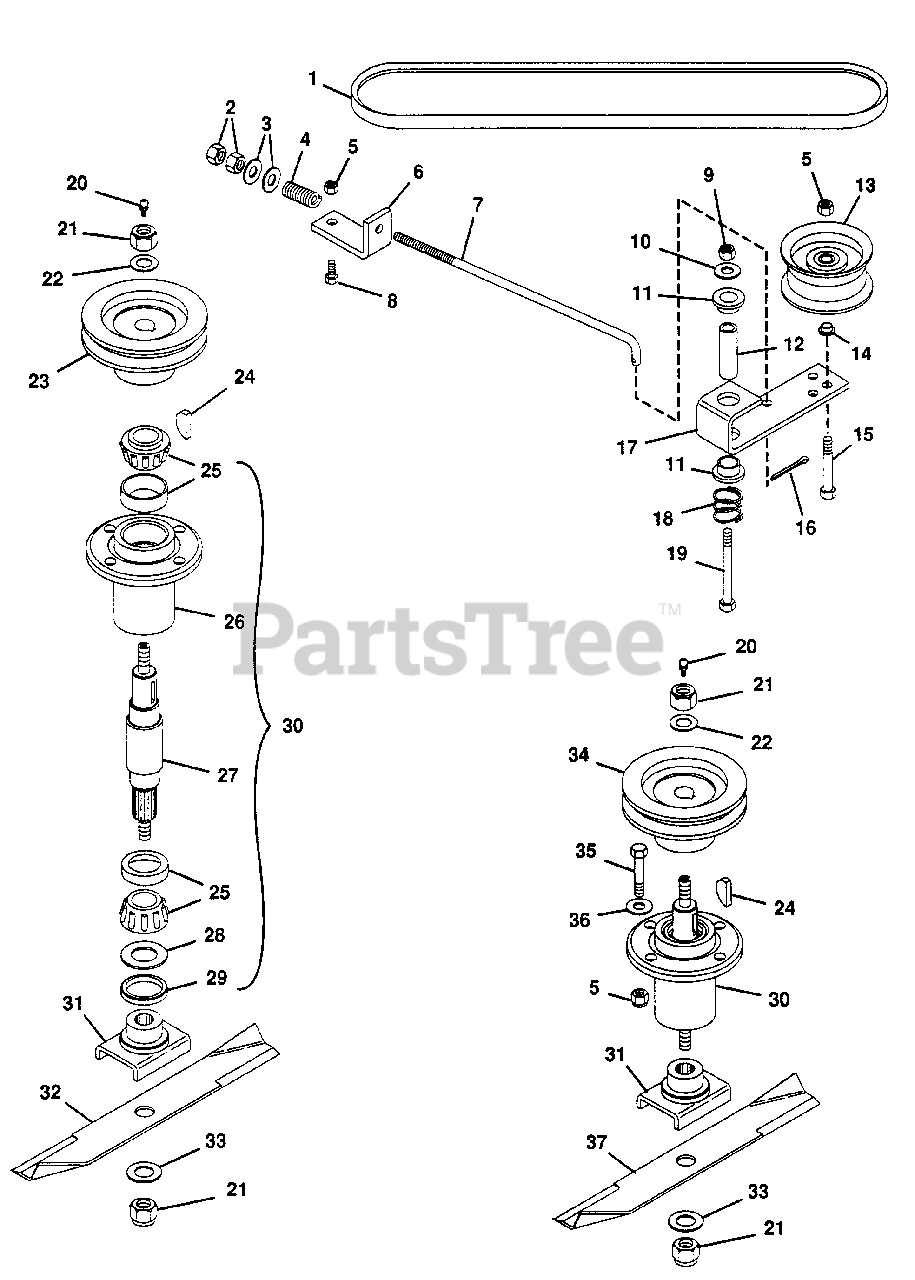

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 044439

BELT, PRO-32 MOWER
(Superseded to 07238600)

$69.99

$

Usually ships in 4-12 days

0

2

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 011779

SPRING, COMP. 1X.78X338 LB/N
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

5

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 034287

BRACKET, BELT TENSIONER
(Superseded to 08802700)

$

$

Not available

7

Gravely 021112

ROD, IDLER
(Superseded to 03351200)

$

$

Not available

8

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

11

Gravely 010174

BUSHING, FLANGE NYLON
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 034119

BUSHING, ST. .560X.750X2.44 STL.
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

13

Gravely 034286

PULLEY, IDLER
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

14

Gravely 024815

BUSHING, FLANGE BRONZE
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

15

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

17

Gravely 034120

ARM, IDLER PIVOT
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

18

Gravely 020444

SPRING, COMP. 1X.80X36 LB/N
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

19

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 411010

FITTING, LUBE 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

21

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 033845

WASHER, FLAT .687X1.312X.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

23

Gravely 044427

SHEAVE, SPINDLE
(Superseded to 08825100)

$

$

Not available

24

Gravely 124553

KEY, WOODRUFF 1/4X1 HARD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

25

Gravely 038199

ASSEMBLY, BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

26

Gravely 021215

HOUSING, BEARING
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

27

Gravely 034603

SHAFT, SPINDLE
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

28

Gravely 020743

WASHER, FLAT .975X1.970X.030
(Superseded to 06426900)

$5.99

$

In Stock, Qty 11

0

29

Gravely 021211

SEAL, STEEL
(Superseded to 08722600)

$15.99

$

In Stock, only 1 left!

0

30

Gravely 034605

ASSEMBLY, SPINDLE
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

31

Gravely 023026

WELDMENT, BLADE CRADLE
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

32

Gravely 014668

BLADE
(Superseded to 03498400)

$19.99

$

In Stock, Qty 20+

0

33

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 034936

SHEAVE, SPINDLE
(Superseded to 08804400)

$387.99

$

Usually ships in 4-12 days

0

35

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 120388

WASHER, FLAT .438X1.000X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 011234

BLADE
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0
