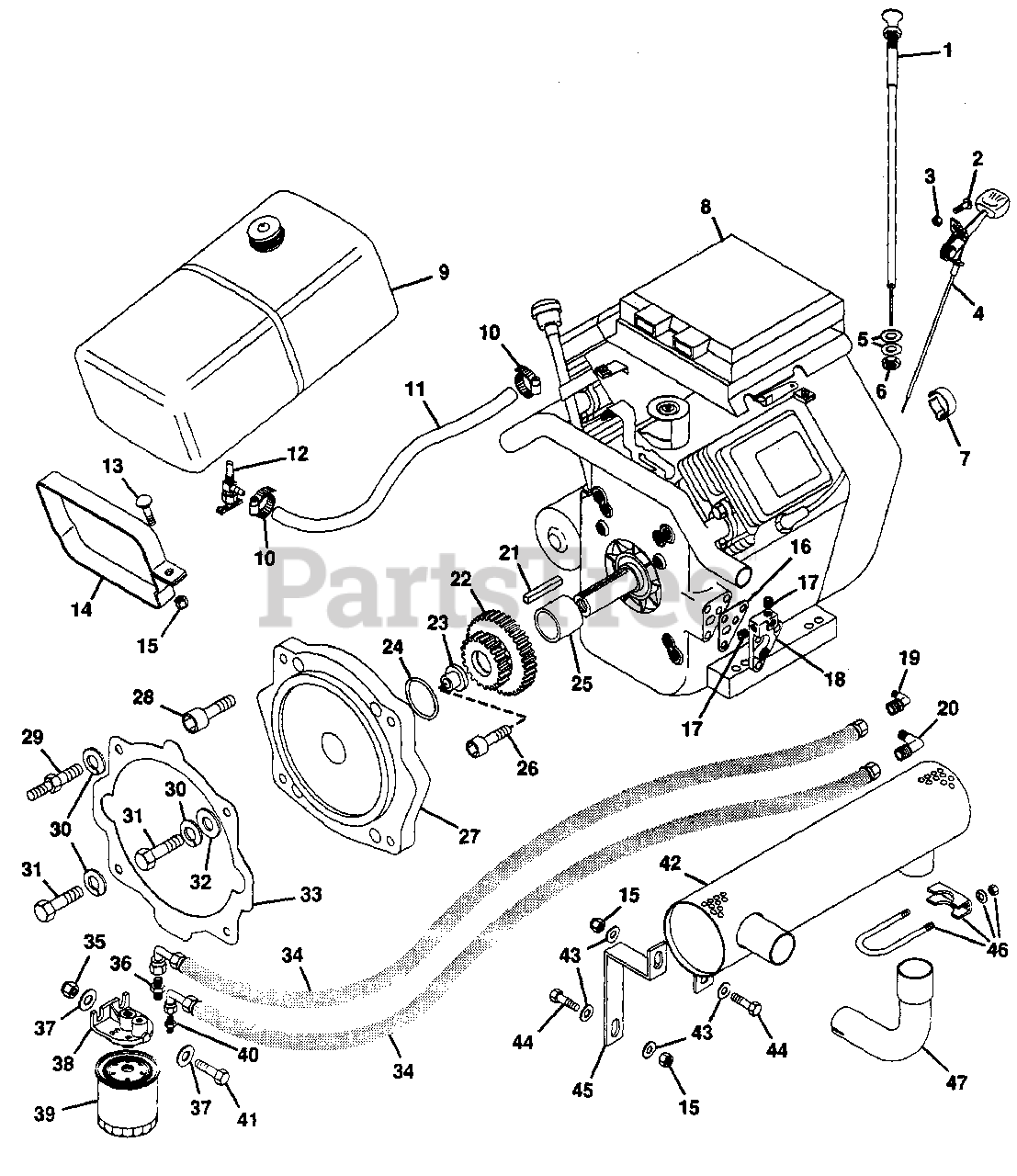

49715 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, 4-Speed, Electric Start FUEL AND EXHAUST SYSTEM Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, 4-Speed, Electric Start

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 046795

LEVER, CHOKE CONTROL
(Superseded to 06928600)

$

$

Not available

2

Gravely 159920

SCREW, MACH. 10-24X.50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

3

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 046794

LEVER, THROTTLE
(Superseded to 06928500)

$68.99

$

Usually ships in 4-12 days

0

5

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 124925

NUT, HEX JAM 3/8-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 008260

CLIP, CONDUIT
(Superseded to 06901200)

$5.49

$

In Stock, only 1 left!

0

8

Gravely 047328

ENGINE, 16 H.P. B&S

$

$

Not available

9

Gravely 046425

TANK, GAS W/CAP
(Superseded to 08575100)

$387.99

$

Usually ships in 4-12 days

0

10

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 007354

VALVE AND STRAINER
(Superseded to 08860200)

$17.99

$

In Stock, only 1 left!

0

13

Gravely 126342

BOLT, 1/4-20X1.75 RD.HD.SQ. NK.
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 010640

STRAP, FUEL TANK
(Superseded to 08581800)

$

$

Not available

15

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 805250

GASKET, OIL FILTER ADAPTOR

$

$

Not available

17

Gravely 444855

PLUG, 1/8-27 PIPE HSKT
(Superseded to 07025600)

$

$

Not available

18

Gravely P805353

ADAPTOR, REMOTE OIL FILTER

$

$

Not available

19

Gravely 049228

ADAPTER, 6-2-CTX-S
(Superseded to 07022400)

$

$

Not available

20

Gravely 049227

ADAPTER, 6CTX-S
(Superseded to 07022500)

$

$

Not available

21

Gravely 047317

KEY, SQUARE
(Superseded to 08981400)

$

$

Not available

22

Gravely 046410

GEAR, 10/12 DP 21/30 TEETH
(Superseded to 08564700)

$339.99

$

Usually ships in 4-12 days

0

23

Gravely 046411

PILOT, GEAR
(Superseded to 08564800)

$68.99

$

Usually ships in 4-12 days

0

24

Gravely 047144

O-RING
(Superseded to 05617900)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 046436

SPACER, GEAR
(Superseded to 08567400)

$

$

Not available

26

Gravely 453440

SCREW, 3/8-24X1.00 SHD
(Superseded to 06114100)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 046989

ADAPTOR, B&S ENGINE
(Superseded to 08565700)

$

$

Not available

28

Gravely 421648

SCREW, CAP 7/16-14X1.00 SHD
(Superseded to 05933000)

$

$

Not available

29

Gravely 040404

STUD
(Superseded to 08541700)

$

$

Not available

30

Gravely 131100

WASHER, LOCK 7/16 SP HEAVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 180147

BOLT, HEX 7/16-14X1.25
(Superseded to 05964800)

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 120395

WASHER, FLAT .469X.938X.065
(Superseded to 06429400)

$

$

Not available

33

Gravely 010635

GASKET, CHASSIS TO ADAPTOR
(Superseded to 08602800)

$15.99

$

In Stock, only 2 left!

0

34

Gravely 049356

ASSEMBLY, HOSE
(Superseded to 08570000)

$

$

Not available

35

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 050063

FITTING, STRAIGHT PH 6FTX-S
(Superseded to 07022900)

$

$

Not available

37

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

38

491656

ARM, BASE

$

$

Not available

39

Gravely 491056

FILTER, OIL

$9.99

$

In Stock, only 2 left!

0

40

Gravely 050064

FITTING, STRAIGHT PH 6-2FTX-S
(Superseded to 07023000)

$

$

Not available

41

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

42

Gravely 044399

MUFFLER, 16 H.P.
(Superseded to 08555600)

$

$

Not available

43

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

45

Gravely 049327

BRACKET, EXHAUST
(Superseded to 08569900)

$

$

Not available

46

Gravely 014728

CLAMP, MUFFLER
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

47

Gravely 049191

ELBOW
(Superseded to 08569500)

$

$

Not available
