49684 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler

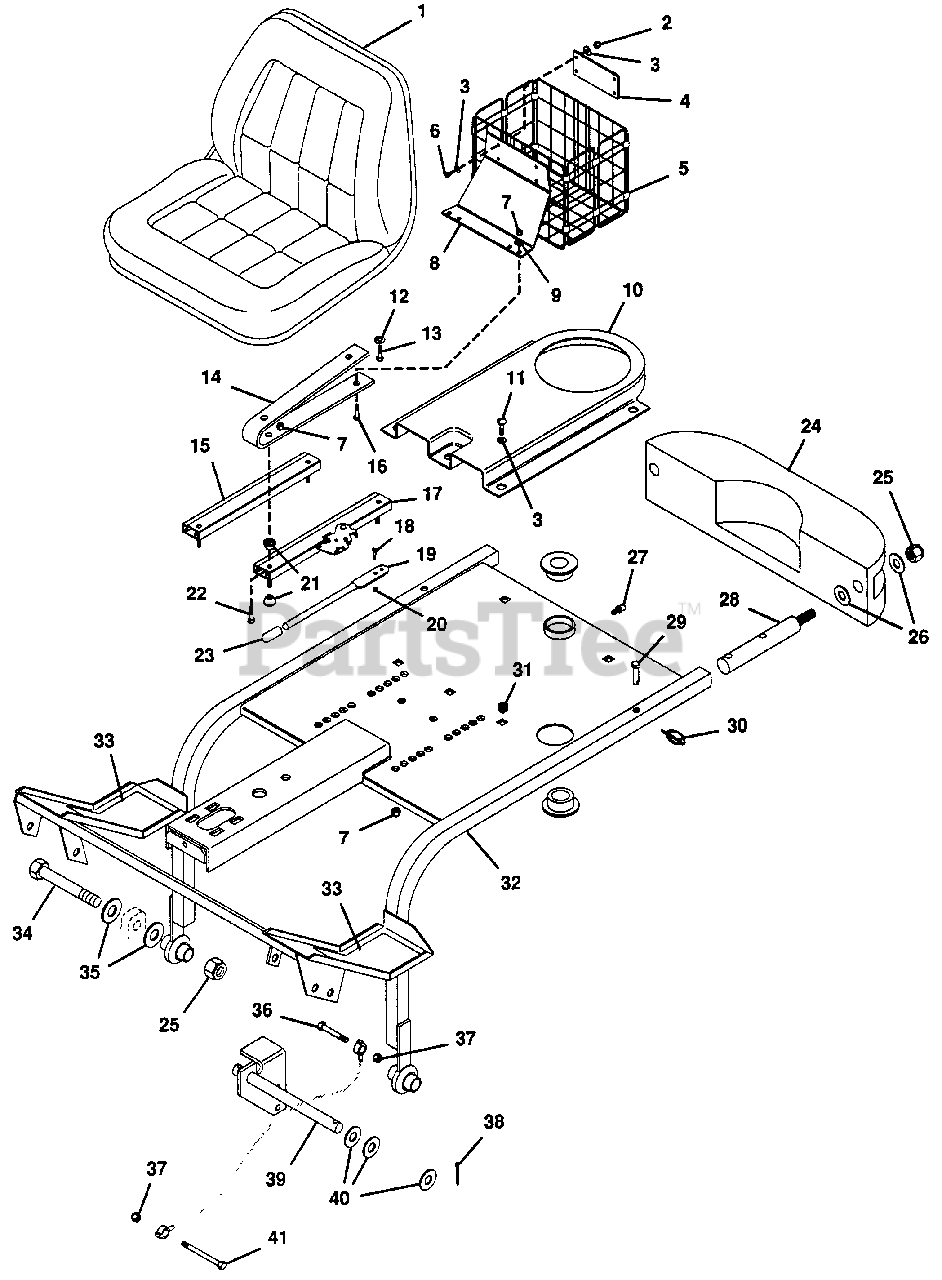

MAIN FRAME Parts Diagram

  • Title
1

Gravely 046220

Seat, Pro Master
(Superseded to 08975800)

$283.99

$

Usually ships in 4-12 days

0

2

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 046236

Strap, Basket
(Superseded to 08976600)

$

$

Not available

5

Gravely 046247

Basket
(Superseded to 08976700)

$

$

Not available

6

Gravely 180022

Bolt, Hex 1/4-20x1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

7

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 046235

Bracket, Basket
(Superseded to 08976500)

$

$

Not available

9

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 041949

Cover, Chain
(Superseded to 09032000)

$

$

Not available

11

Gravely 167260

Screw, Tapping 1/4-20x.625 PHD
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

12

Gravely 120214

Washer, Lock 5/16
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 042175

Spring, Seat
(Superseded to 21263051)

$103.99

$

In Stock, only 1 left!

0

15

Gravely 035642

Adjuster, Seat
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

16

Gravely 180087

Bolt, Hex 5/16-18x2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 035641

Adjuster, Seat w/Latch
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

18

Gravely 159929

Screw, Machine 10-24x.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 14

0

19

Gravely 039063

Handle, Seat Slide
(Superseded to 03416500)

$

$

Not available

20

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 035670

Spacer
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

22

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

23

Gravely 043192

Tip, Lever
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

24

Gravely 042021

Weight, Pro Master-60
(Superseded to 08940253)

$

$

Not available

25

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

26

Gravely 131000

Washer, Flat .813x2.0x.148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

27

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

28

Gravely 042077

Shaft, Weight
(Superseded to 08940300)

$

$

Not available

29

Gravely 022113

Pin, Clevis 3/8x2.62
(Superseded to 06811100)

$

$

Not available

30

Gravely 023468

Pin, Klik
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 041955

Weldment, Frame
(Superseded to 08940100)

$387.99

$

Usually ships in 4-12 days

0

33

Gravely 041936

Cover, Footboard
(Superseded to 09035100)

$

$

Not available

34

Gravely 271778

Bolt, Hex 3/4-10x3.75
(Superseded to 05939700)

$

$

Not available

35

Gravely 035640

Washer, Flat .812x1.469x.130
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

36

Gravely 181621

Bolt, Hex 5/16-24x2.25
(Superseded to 05937100)

$

$

Not available

37

Gravely 190139

Nut, Lock 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

38

Gravely 120123

Pin, Cotter .125x1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 037042

Weldment, Lift Bracket
(Superseded to 08924900)

$

$

Not available

40

Gravely 421879

Washer, Flat .656x1.250x.100
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 189323

Bolt, Hex 5/16-24x3.50
(Superseded to 05938700)

$

$

Not available

Gravely 035478

Decal, Pro Master-60
(Superseded to 05209400)

$

$

Not available

Gravely 042088

Decals, Pro Master 18 HP
(Superseded to 05210400)

$

$

Not available

Gravely 042066

Decals, Pro Master 20 HP
(Superseded to 05210300)

$

$

Not available

Gravely 024588

Decal, Gravely Logo
(Superseded to 05201500)

$22.99

$

Usually ships in 4-12 days

0

Gravely 040046

Decal, America
(Superseded to 03327700)

$

$

Not available

Gravely 044289

Decal, Hi-Speed
(Superseded to 05212100)

$

$

Not available

Gravely 043246

Decal, Model 18-G
(Superseded to 05211000)

$

$

Not available

Gravely 043247

Decal, Model 20-G
(Superseded to 05211100)

$

$

Not available
