49683 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 18hp Kohler (SN: 000101 & Above) NUMBER NINE SHAFT - PTO CLUTCH Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 18hp Kohler

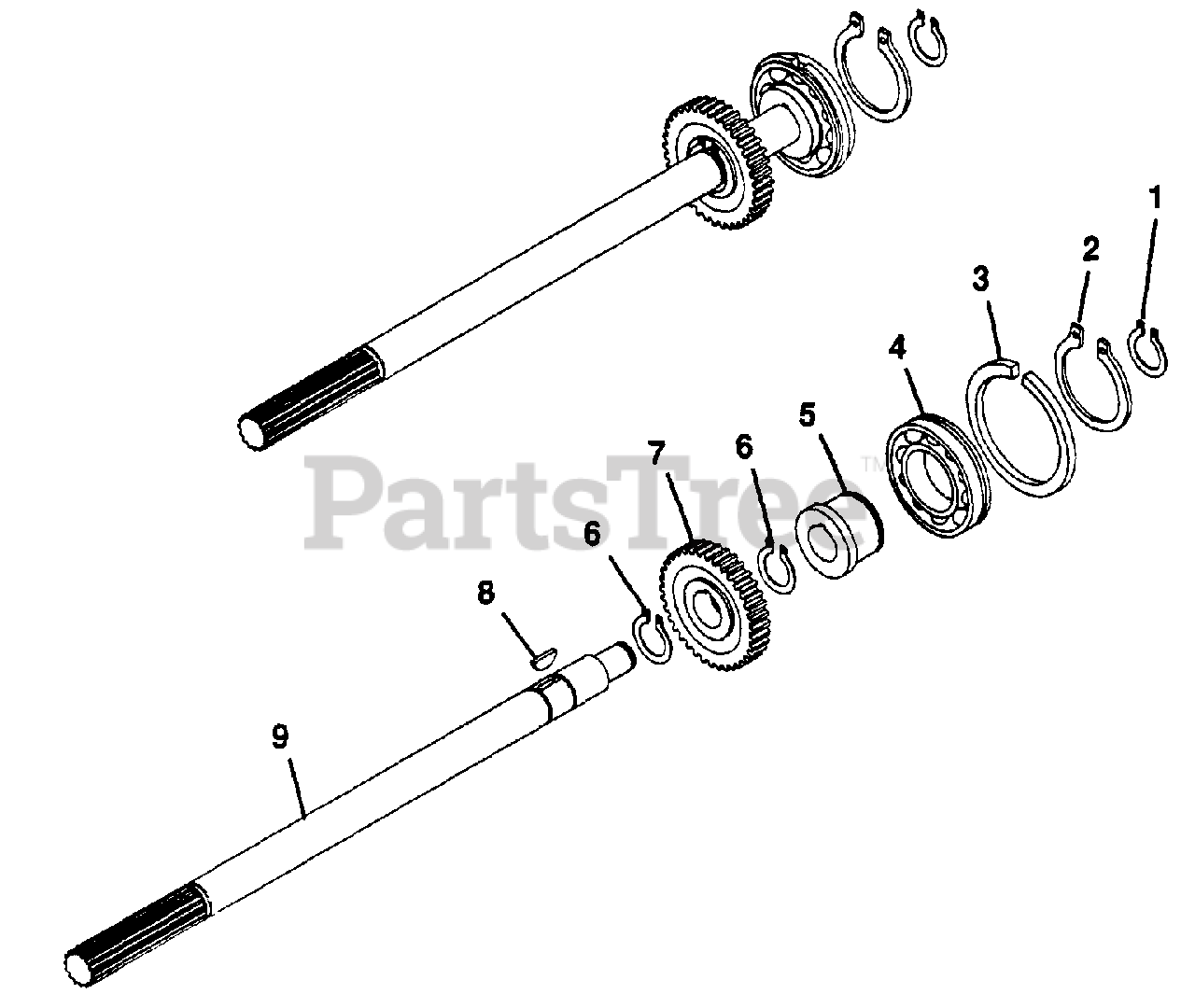

NUMBER NINE SHAFT - PTO CLUTCH Parts Diagram

  • Title

1

Gravely 011135

Ring, Retaining .750 Shaft
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

2

Gravely 023523

Ring, Retaining
(Superseded to 05714300)

$

$

Not available

3

Gravely 017966

Ring, Retaining
(Superseded to 05712200)

$

$

Not available

4

Gravely 017967

Bearing, Ball 1.378x2.440x.551
(Superseded to 05420700)

$

$

Not available

5

Gravely 035491

Adapter, PTO Bearing
(Superseded to 08737700)

$

$

Not available

6

Gravely 021557

Ring, Retaining .984 Shaft
(Superseded to 05713600)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 035441

Gear, PTO Cross Shaft
(Superseded to 08737600)

$

$

Not available

8

Gravely 124549

Key, Woodruff .187x.750 Hrd #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 042635

Shaft, PTO
(Superseded to 08760100)

$

$

Not available
