49376 - Gravely 60" Deck for 4-Wheel Tractor MOWER DECK Parts Diagram

60" Deck for 4-Wheel Tractor

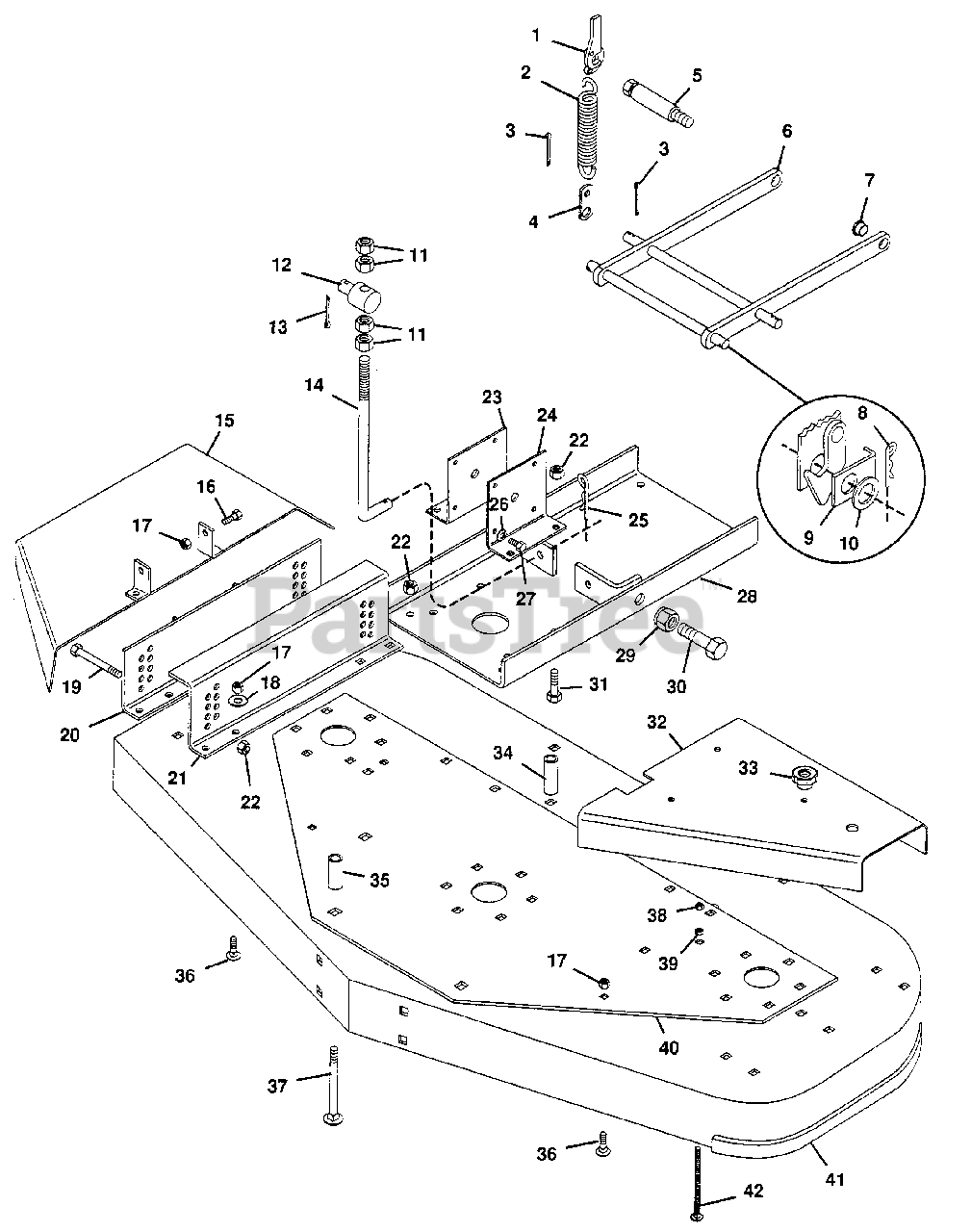

MOWER DECK Parts Diagram

  • Title

1

Gravely 040309

Latch, Spring Assembly R.H.
(Superseded to 08747300)

$39.99

$

Usually ships in 4-12 days

0

4

Gravely 040311

Latch, Spring Assembly L.H.
(Superseded to 08747400)

$43.99

$

Usually ships in 4-12 days

0

2

Gravely 011272

Spring, Ext. 7.625x1.50x.70 Rate
(Superseded to 08334300)

$52.99

$

Usually ships in 4-12 days

0

3

Gravely 120123

Pin, Cotter .125x1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 011273

Strap
(Superseded to 08861800)

$

$

Not available

5

Gravely 031688

Latch, Pin
(Superseded to 08729600)

$

$

Not available

6

Gravely 045947

Weldment, Mower Mounting
(Superseded to 08772700)

$

$

Not available

7

Gravely 010174

Bush., Flg. 764x1.47x.560 Ny.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 010405

Pin, Hair
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

9

Gravely 046296

Keeper, Mower Pivot
(Superseded to 08778100)

$

$

Not available

10

Gravely 423315

Washer, Flat .813x1.37x.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 120238

Nut, Jam 1/2-13 Hex
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 046409

Pivot, Mower Lift
(Superseded to 08779100)

$

$

Not available

13

Gravely 187988

Pin, Cotter .187x1.25
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

14

Gravely 040815

Rod, Lift
(Superseded to 08655500)

$

$

Not available

15

Gravely 048967

Weldment, Discharge Chute
(Superseded to 08782100)

$

$

Not available

16

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 180192

Bolt, Hex 1/2-13x3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

20

Gravely 049998

Weldment, 60" Hanger
(Superseded to 08783600)

$

$

Not available

21

Gravely 049996

Hanger, Inner
(Superseded to 08783400)

$

$

Not available

22

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 049993

Bracket, Gearbox R.H.
(Superseded to 08783300)

$

$

Not available

24

Gravely 049992

Bracket, Gearbox L.H.
(Superseded to 08783200)

$

$

Not available

25

Gravely 015691

Pin, Cotter Hair
(Superseded to 06714900)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 180121

Bolt, Hex 3/8-16x.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

28

Gravely 050000

Weldment, Support Plate
(Superseded to 08783800)

$79.99

$

Usually ships in 4-12 days

0

29

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

30

Gravely 271774

Bolt, Hex 3/4-10x2.75
(Superseded to 05939500)

$

$

Not available

31

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

32

Gravely 049986

Cover, Belt L.H.
(Superseded to 08783000)

$

$

Not available

32

Gravely 049987

Cover, Belt R.H.
(Superseded to 08783100)

$

$

Not available

33

Gravely 041674

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

34

Gravely 046035

Bush., St. .562x1.00x2.18 Stl.
(Superseded to 08736100)

$

$

Not available

35

Gravely 044905

Bush., St. .562x1.00x2.00 Stl.
(Superseded to 08981000)

$27.99

$

Usually ships in 4-12 days

0

36

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

37

Gravely 126803

Bolt, 1/2-13x3.50 Rd Hd Sq Nk
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

38

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 124824

Nut, Jam 5/16-18 Hex
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 049652

Plate, Deck Support
(Superseded to 08782900)

$

$

Not available

41

Gravely 049651

Weldment, 60" Mower Deck
(Superseded to 08782800)

$

$

Not available

42

Gravely 040546

Bolt, 5/16-18x4.0 Rd Hd Sq Nk
(Superseded to 06222500)

$3.99

$

In Stock, only 3 left!

0

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

Gravely 046263

Decal, Belt Diagram
(Superseded to 05212900)

$

$

Not available

Gravely 049720

Decal, Width Of Cut
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0
