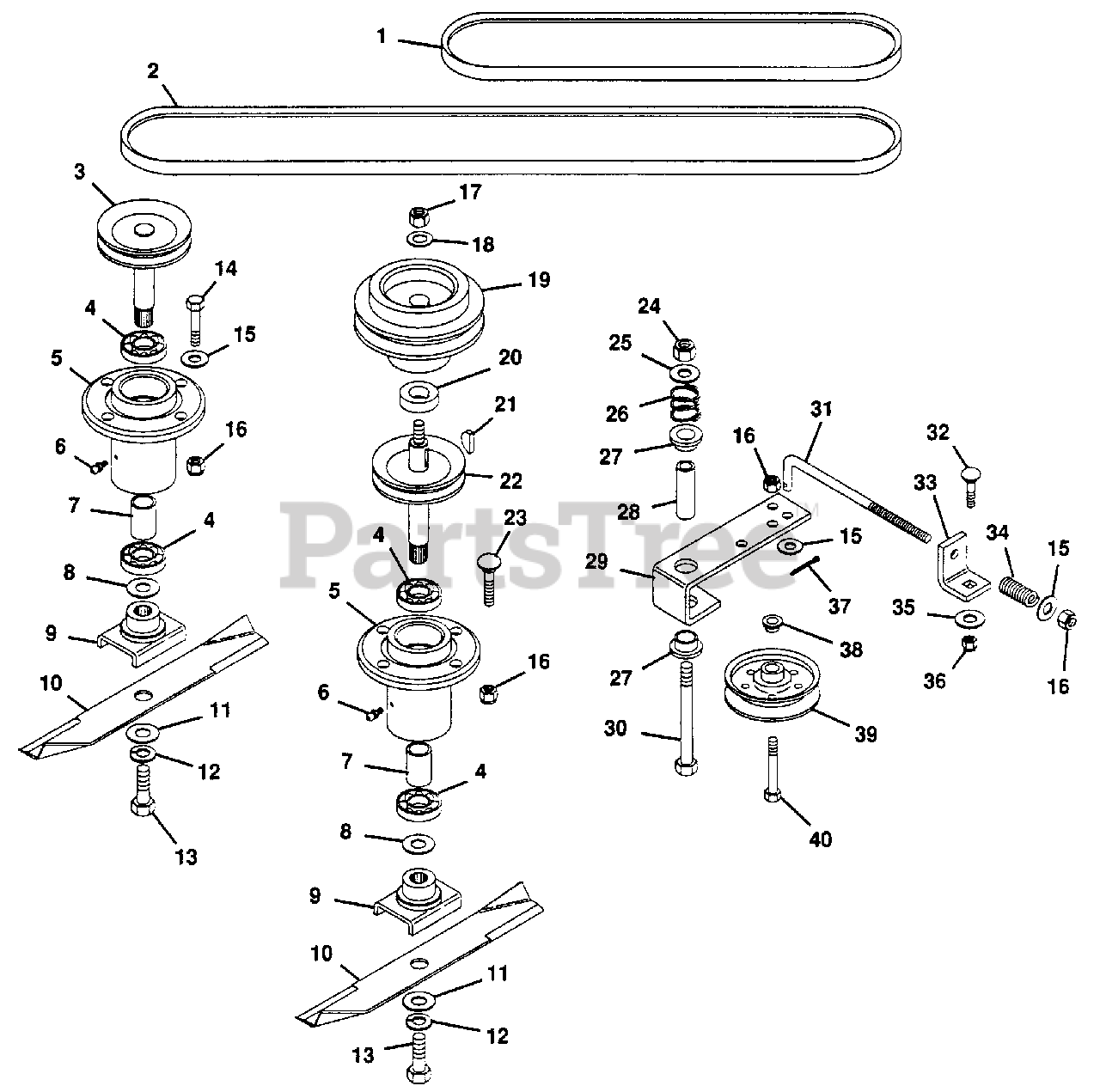

49225 - Gravely 40" Deck for GEM Tractor MOWER DRIVE ASSEMBLY 40" Parts Diagram

40" Deck for GEM Tractor

MOWER DRIVE ASSEMBLY 40" Parts Diagram

  • Title

1

Gravely 049320

BELT, MOWER DRIVE
(Superseded to 07222900)

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 049319

BELT, MOWER
(Superseded to 07222800)

$52.99

$

Usually ships in 4-12 days

0

3

Gravely 048792

WELDMENT, SPINDLE SHAFT
(Superseded to 03344300)

$

$

Not available

4

Gravely 019072

BEARING, BALL .984X2.047X.590
(Superseded to 05421500)

$13.99

$

In Stock, only 3 left!

0

5

Gravely 049091

HOUSING, SPINDLE
(Superseded to 03340500)

$

$

Not available

6

Gravely 411010

FITTING, LUBE 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 048699

BUSHING, ST. 1.00X1.25X1.58 STL.
(Superseded to 03487100)

$

$

Not available

8

Gravely 020743

WASHER, FLAT .975X1.970X.030
(Superseded to 06426900)

$5.99

$

In Stock, Qty 11

0

9

Gravely 023026

WELDMENT, BLADE CRADLE
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

10

Gravely 014668

BLADE
(Superseded to 03498400)

$19.99

$

In Stock, Qty 20+

0

11

Gravely 033845

WSHR, FLAT .687X1.312X.122/.146
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 121574

WASHER, LOCK 5/8 SP
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 271715

BOLT, HEX 5/8-11X1.25
(Superseded to 05971600)

$

$

Not available

14

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 414075

NUT, LOCK 5/8-11
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 048779

SHEAVE, DRIVEN
(Superseded to 21287000)

$

$

Not available

20

Gravely 051878

SPACER, DRIVE PULLEY
(Superseded to 21301700)

$

$

Not available

21

Gravely 124549

KEY, WOODRUFF .188X.75 HARD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 048793

WELDMENT, DRIVER SHAFT
(Superseded to 21287300)

$

$

Not available

23

Gravely 126402

BOLT, 3/8-16X1.25 RD HD SQ NK
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

26

Gravely 020444

SPRING, COMP.
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

27

Gravely 010174

BUSHING, NYLON .760X1.000X.600
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

28

Gravely 034119

BUSHING, ST. .560X.750X2.44 STL.
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

29

Gravely 034120

ARM, IDLER PIVOT
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

30

Gravely 180193

BOLT, HEX 1/2-13X3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 049367

ROD, IDLER
(Superseded to 08812600)

$109.99

$

Usually ships in 4-12 days

0

32

Gravely 126358

BOLT, CARRIAGE 5/16-18X1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 049229

BRACKET, IDLER ROD
(Superseded to 21291000)

$

$

Not available

34

Gravely 011779

SPRING, COMP. 1X.78X338 LB/IN
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

35

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 121224

PIN, COTTER 3/32X1.00

$0.99

$

Usually ships in 4-12 days

0

38

Gravely 014672

BUSHING, ST. .406X.750X.188 STL.
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

39

Gravely 021060

SHEAVE, IDLER
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

40

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0
