49147 - Gravely 36" Snow Blower for GEM Tractor CARRIAGE ASSEMBLY AND PTO Parts Diagram

36" Snow Blower for GEM Tractor

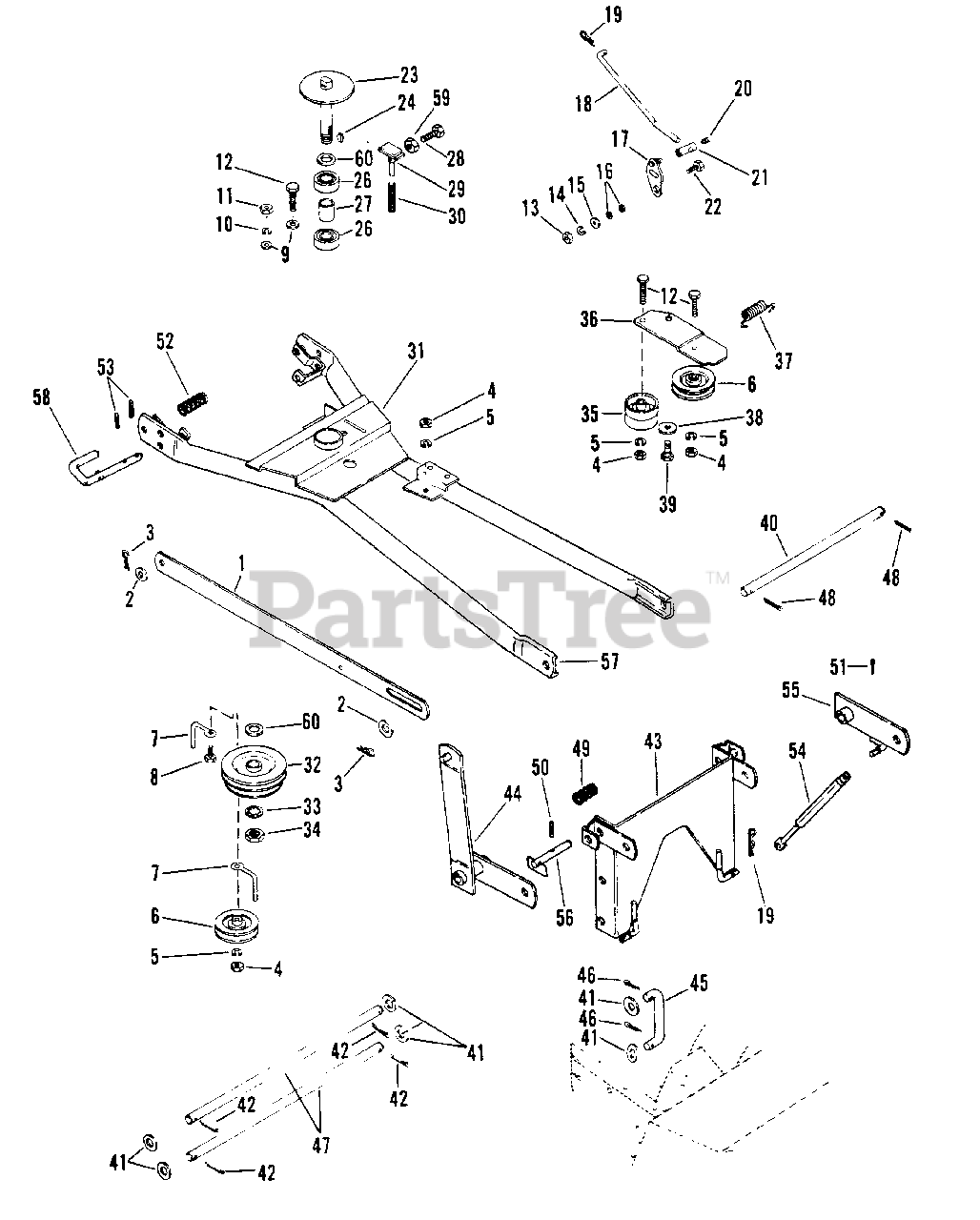

CARRIAGE ASSEMBLY AND PTO Parts Diagram

  • Title

1

Gravely 051646

Strap, Lift
(Superseded to 03592000)

$

$

Not available

2

Gravely 120389

Washer, Flat .500x1.250x.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

3

Gravely 010405

Pin, Hair
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

4

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 036256

Idler, Main
(Superseded to 07310900)

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 036235

Finger, Belt
(Superseded to 03175500)

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

11

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

12

Gravely 180128

Bolt, Hex 3/8-16x1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

14

Gravely 120380

Washer, Lock
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 120386

Washer, .312x.734x.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 446179

Washer, Flat .250x.500x.049
(Superseded to 21071000)

$

$

Not available

17

Gravely 036828

Actuator, Brake
(Superseded to 03517400)

$

$

Not available

18

Gravely 036834

Rod, Brake
(Superseded to 03517700)

$

$

Not available

19

Gravely 036185

Pin, Hair Int. 3/32
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 102581

Set Screw, 5/16-18x.375 HSCP
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

21

Gravely 036835

Adaptor, Rod
(Superseded to 02213500)

$38.99

$

Usually ships in 4-12 days

0

22

Gravely 180020

Bolt, Hex 1/4-20x.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 036832

Shaft, Spindle
(Superseded to 03517800)

$

$

Not available

24

Gravely 106751

Key, Woodruff .187x.75x#9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 12

0

26

Gravely 035925

Bearing, Radial
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

27

Gravely 036827

Spacer
(Superseded to 03517300)

$

$

Not available

28

Gravely 051641

Screw, Cap 10-24x1.25
(Superseded to 05930100)

$

$

Not available

29

Gravely 051647

Plunger, Brake
(Superseded to 03598600)

$39.99

$

Usually ships in 4-12 days

0

30

Gravely 036830

Spring, Comp.
(Superseded to 08301500)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 036826

Housing, Spindle
(Superseded to 03517200)

$

$

Not available

32

Gravely 036833

Sheave, Double
(Superseded to 03517900)

$

$

Not available

33

Gravely 036225

Lockwasher, Internal 3/4
(Superseded to 03559000)

$19.99

$

Usually ships in 4-12 days

0

34

Gravely 426897

Nut, Jam 3/4-10 Hex
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

35

Gravely 036247

Idler, Attachment
(Superseded to 07310800)

$34.99

$

In Stock, only 1 left!

0

36

Gravely 051648

Arm, Idler
(Superseded to 03589443)

$

$

Not available

37

Gravely 036907

Spring, Ext. 3-1/16 Free Length
(Superseded to 08318600)

$

$

Not available

38

Gravely 036840

Washer, Flat .515x1.441x.1
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 049109

Bolt, Shoulder
(Superseded to 07000034)

$3.99

$

In Stock, only 1 left!

0

40

Gravely 051651

Rod, Mount
(Superseded to 03589500)

$

$

Not available

41

Gravely 131016

Washer, .656x1.312x.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

42

Gravely 137228

Pin, Cotter .156x1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

43

Gravely 051653

Frame, Pivot
(Superseded to 03589000)

$

$

Not available

44

Gravely 051654

Bellcrank, Lift
(Superseded to 03589600)

$

$

Not available

45

Gravely 036913

Link, Lift
(Superseded to 03519900)

$

$

Not available

46

Gravely 137185

Pin, Cotter .125x1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

47

Gravely 036561

Rod, Pivot
(Superseded to 03508300)

$

$

Not available

48

Gravely 421202

Pin, Spring .187x1.000
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

49

Gravely 051644

Spring
(Superseded to 08326000)

$

$

Not available

50

Gravely 456542

Pin, Spring .187x1.500
(Superseded to 05809400)

$

$

Not available

51

Gravely 121224

Pin, Cotter .094x1.00

$0.99

$

Usually ships in 4-12 days

0

52

Gravely 051650

Spring, Compression
(Superseded to 08325900)

$9.49

$

Usually ships in 4-12 days

0

53

Gravely 415236

Pin, Spring .125x.750
(Superseded to 05803400)

$0.99

$

In Stock, Qty 16

0

54

Gravely 051649

Spring, Gas
(Superseded to 08326100)

$

$

Not available

55

Gravely 051652

Lever, Lift
(Superseded to 03591700)

$

$

Not available

56

Gravely 051645

Pin, Lock
(Superseded to 03592200)

$

$

Not available

57

Gravely 051643

Frame, Carriage
(Superseded to 03589200)

$

$

Not available

58

Gravely 051642

Pin, Latch
(Superseded to 03584700)

$

$

Not available

59

Gravely 120361

Nut, 10-24 Hex
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

60

Gravely 036918

Washer, Flat .770x1.25x.06
(Superseded to 06416700)

$

$

Not available
