49142 (1238-H) - Gravely 38" Lawn Tractor, 12hp Briggs & Stratton, Hydro Drive HOOD AND DASH Parts Diagram

38" Lawn Tractor, 12hp Briggs & Stratton, Hydro Drive

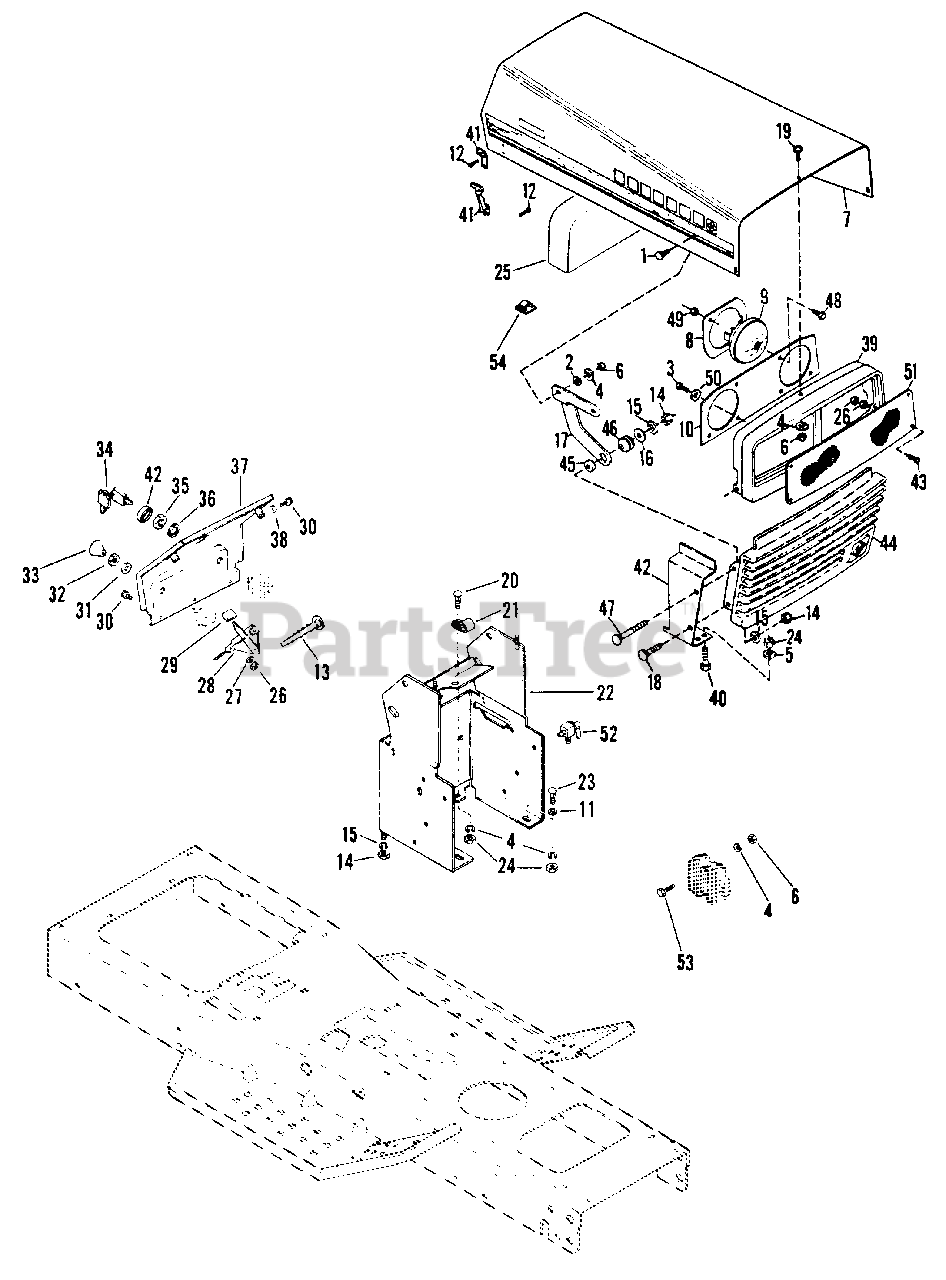

HOOD AND DASH Parts Diagram

  • Title

1

Gravely 120518

BOLT, 1/4-20X.75 RD HD SQ NK
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

2

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 411890

SCREW, TAPPING 1/4-20X.625
(Superseded to 21071400)

$

$

Not available

4

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120379

WASHER, LOCK 5/16 SP
(Superseded to 06304800)

$

$

Not available

6

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

7

Gravely 042715

HOOD
(Superseded to 03572900)

$

$

Not available

8

Gravely 039070

RING, HEADLIGHT RETAINER
(Superseded to 03115900)

$

$

Not available

9

Gravely 039069

HEADLIGHT
(Superseded to 03114900)

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 038672

PANEL, HEADLIGHT REFLECTOR
(Superseded to 03067000)

$28.99

$

Usually ships in 4-12 days

0

11

Gravely 120386

WASHER, FLAT.312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 039071

RIVET, POP DOMED 1/8X.294
(Superseded to 20657300)

$

$

Not available

13

Gravely 036313

TIE DOWN
(Superseded to 07517300)

$

$

Not available

14

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 120388

WASHER, FLAT .438X1.00X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 039047

HINGE, HOOD L.H.
(Superseded to 03118600)

$

$

Not available

17

Gravely 039049

HINGE, HOOD R.H.
(Superseded to 03118500)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

19

Gravely 041169

SCREW, 1/4-20X.75
(Superseded to 05967300)

$

$

Not available

20

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 036518

CLIP
(Superseded to 06909400)

$3.49

$

In Stock, Qty 5

0

22

Gravely 044725

BASE, DASH
(Superseded to 53507100)

$

$

Not available

23

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

24

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

25

Gravely 045336

BAFFLE, HOOD
(Superseded to 03568200)

$

$

Not available

26

Gravely 120361

NUT, 10-24 HEX
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

27

Gravely 120217

WASHER, LOCK NO. 10 SP.
(Superseded to 21049900)

$

$

Not available

28

Gravely 044726

CONTROL, THROTTLE
(Superseded to 06916200)

$68.99

$

Usually ships in 4-12 days

0

29

Gravely 036324

KNOB
(Superseded to 07501900)

$

$

Not available

30

Gravely 036346

SCREW, TAPPING 10-16X.375
(Superseded to 07407300)

$

$

Not available

31

Gravely 036366

WASHER
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

32

Gravely 120371

NUT, HEX 1/2-20
(Superseded to 21050100)

$

$

Not available

33

Gravely 036301

KNOB
(Superseded to 07506800)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 045488

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

35

Gravely 045489

NUT, JAM 9/16-24
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

36

Gravely 019667

WASHER, LOCK 9/16 INT. TOOTH
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

37

Gravely 036318

DASH
(Superseded to 03539000)

$

$

Not available

37

Gravely 045089

DASH
(Superseded to 03581000)

$

$

Not available

38

Gravely 446179

WASHER, FLAT .250X.500X.049
(Superseded to 21071000)

$

$

Not available

39

Gravely 038673

BEZEL, HEADLIGHT
(Superseded to 03066800)

$

$

Not available

40

Gravely 180075

BOLT, HEX 5/16-18X.625
(Superseded to 05901832)

$

$

Not available

41

Gravely 035294

LATCH, FLEXIBLE
(Superseded to 08704700)

$25.99

$

Usually ships in 4-12 days

0

42

Gravely 043871

PANEL, SIDE R.H.
(Superseded to 03572700)

$

$

Not available

42

Gravely 043870

PANEL, SIDE L.H.
(Superseded to 03572800)

$

$

Not available

43

Gravely 159947

SCREW, MACHINE 10-24X.75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

44

Gravely 040465

CASTING, GRILLE
(Superseded to 21254200)

$

$

Not available

45

Gravely 036849

SPACER
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

46

Gravely 039050

GROMMET
(Superseded to 07506400)

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 126419

BOLT, 3/8-16X2.00 RD HD SQ NK
(Superseded to 06200314)

$3.99

$

In Stock, only 3 left!

0

48

Gravely 180024

BOLT, HEX 1/4-20X1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

49

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

50

Gravely 121753

WASHER, LOCK 1/4 EXT. TH TYA
(Superseded to 21051100)

$

$

Not available

51

Gravely 038671

PANEL, HEADLIGHT LENSE
(Superseded to 03066900)

$78.99

$

Usually ships in 4-12 days

0

52

Gravely 045335

VALVE, BALL
(Superseded to 03569700)

$

$

Not available

53

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

54

Gravely 036517

CLIP, WIRE
(Superseded to 07510700)

$

$

Not available

NS

Gravely 159947

SCREW, MACHINE 10-24X.75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

NS

Gravely 131016

WASHR, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 044468

DECAL, MODEL 1232-G
(Superseded to 03574700)

$

$

Not available

NS

Gravely 044469

DECAL, MODEL 1238-G
(Superseded to 03574800)

$

$

Not available

NS

Gravely 035316

DECAL, TRACTOR
(Superseded to 03542800)

$

$

Not available

NS

Gravely 044363

DECAL, SIDE STRIPE
(Superseded to 03575100)

$

$

Not available

NS

Gravely 044471

DECAL, MODEL 1238-H
(Superseded to 03577500)

$

$

Not available

NS

Gravely 044470

DECAL, MODEL 1232-H
(Superseded to 03577400)

$

$

Not available

NS

Gravely 045385

DECAL, OPERATING
(Superseded to 07768500)

$

$

Not available

NS

Gravely 045386

DECAL, FUEL VALVE
(Superseded to 07786200)

$

$

Not available
