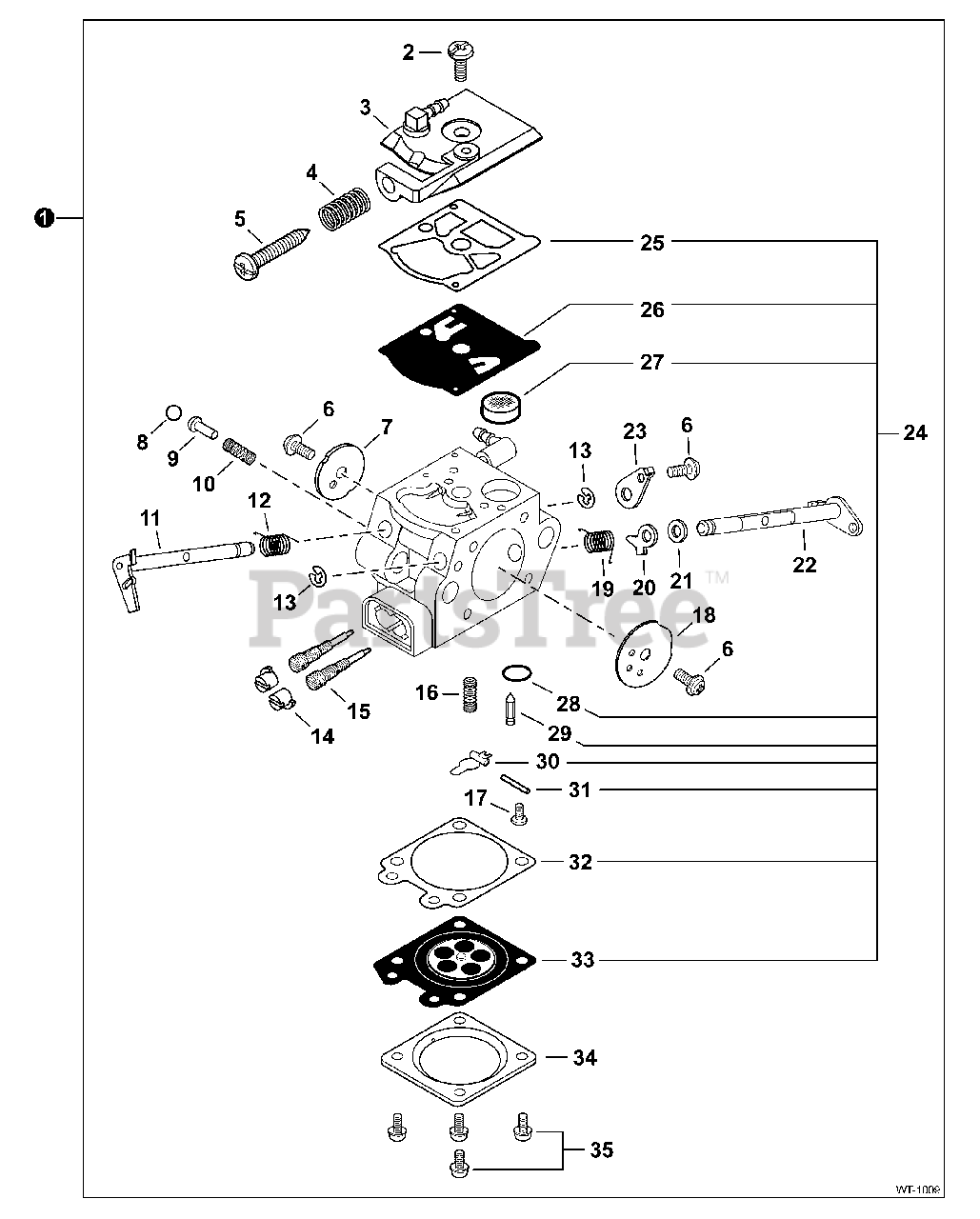

491 s - Shindaiwa Chainsaw (SN: C36413001001 - C36413999999) CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title
1

Echo A021003391

CARBURETOR - WT-1009

Note: Includes Items 2-35

$111.99

$

In Stock, Qty 7

0

$0.99

$

In Stock, only 1 left!

0

3

Echo P003005570

COVER ASSY, PUMP

$11.99

$

Usually ships in 2-4 days

0

4

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 16

0

5

Echo P003003650

SCREW, IDLE ADJUST

$6.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

7

Echo P003003240

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

9

Echo 12318509660

PISTON ASSY

$2.49

$

Usually ships in 2-4 days

0

10

Echo 12318609660

SPRING, START VALVE

$0.99

$

Usually ships in 2-4 days

0

11

Echo P003004800

SHAFT ASSY, THROTTLE

$8.99

$

Usually ships in 2-4 days

0

12

Echo 12311337530

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

13

$0.99

$

In Stock, only 2 left!

0

14

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

15

Echo 12311802261

NEEDLE, MIXTURE

$3.99

$

In Stock, Qty 11

0

16

Echo 12312239330

SPRING, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

17

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

18

Echo P003001960

VALVE, CHOKE

$1.49

$

Usually ships in 2-4 days

0

19

$8.49

$

Usually ships in 2-4 days

0

20

Echo P003001510

LEVER, FAST IDLE
(Superseded to Discontinued)

$

$

Not available

21

$0.99

$

In Stock, only 1 left!

0

22

Echo P003003190

SHAFT ASSY, CHOKE

$24.99

$

Usually ships in 2-4 days

0

23

Echo P003003180

LEVER, THROTTLE

$7.99

$

Usually ships in 2-4 days

0

24

Echo P033000020

REPAIR KIT, CARBURETOR

Note: Includes Items 25-33

$8.49

$

In Stock, Qty 9

0

25

GASKET, PUMP

$

$

Not available

26

DIAPHRAGM, PUMP

$

$

Not available

27

SCREEN, INLET

$

$

Not available

28

PLUG, WELCH

$

$

Not available

29

VALVE, INLET NEEDLE

$

$

Not available

30

LEVER, METERING

$

$

Not available

31

PIN, METERING LEVER

$

$

Not available

32

GASKET, METERING DIAPHRAGM

$

$

Not available

33

DIAPHRAGM, METERING

$

$

Not available

34

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

35

$1.99

$

Usually ships in 2-4 days

0
