49065 - Gravely GEM Lawn Tractor, 12.5hp Kohler, Hydro ENGINE, FUEL, AND EXHAUST SYSTEM Parts Diagram

GEM Lawn Tractor, 12.5hp Kohler, Hydro

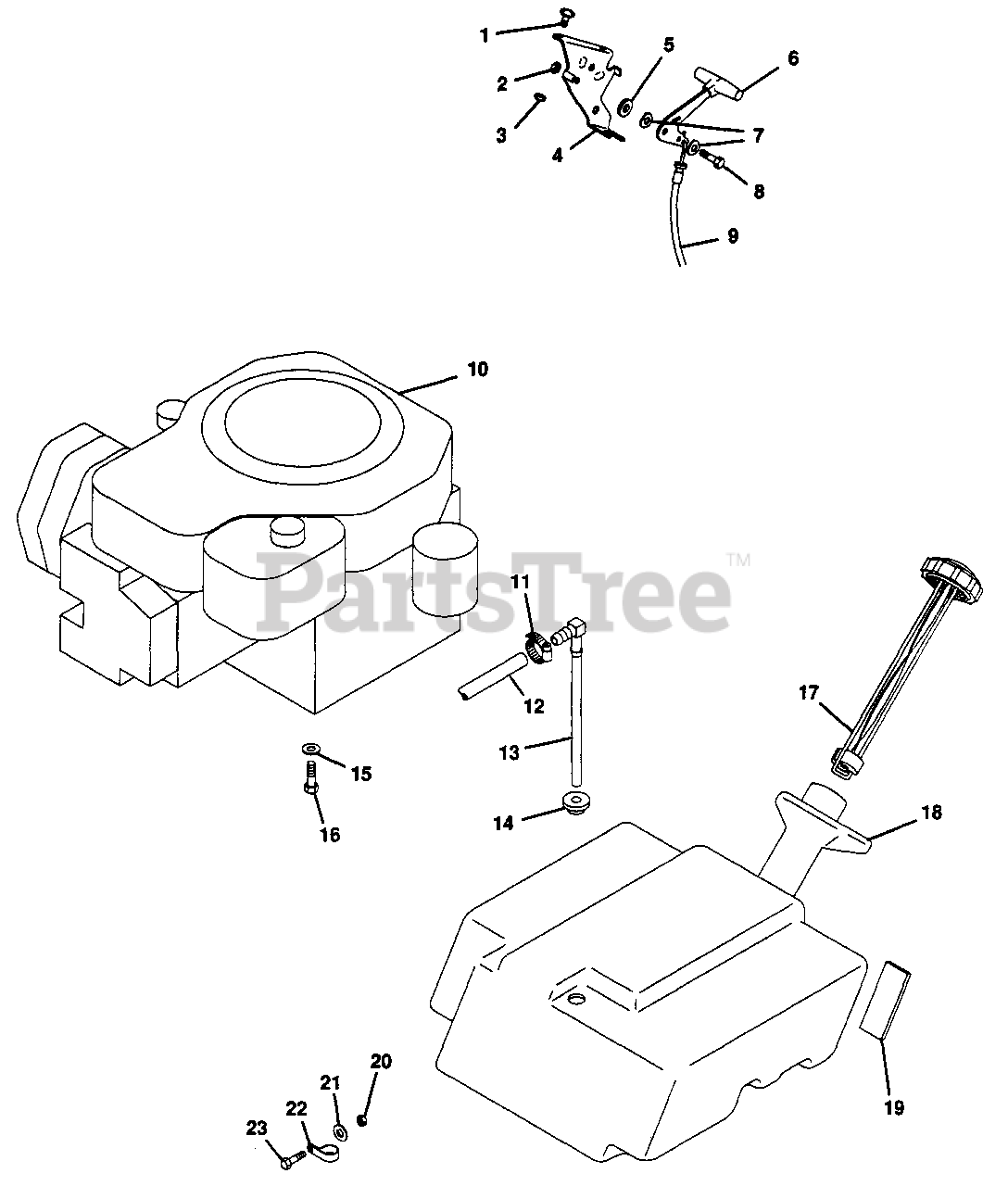

ENGINE, FUEL, AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 159929

Screw, Mach. 10-24 x .625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

2

Gravely 416430

Nut, Lock 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

3

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 011770

Bracket, Mounting L.H.
(Superseded to 03493300)

$

$

Not available

5

Gravely 120392

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 011773

Assembly, Knob and Lever
(Superseded to 06917100)

$

$

Not available

7

Gravely 011774

Washer, Spring
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 181003

Bolt, Hex 1/4-28 x .625
(Superseded to 05931900)

$

$

Not available

9

Gravely 049655

Assembly, Conduit
(Superseded to 06920800)

$

$

Not available

10

Gravely 049721

Engine, 12.5 HP Kohler

$

$

Not available

10

Gravely 050130

Engine, 14 HP Kohler

$

$

Not available

11

Gravely 032045

Clamp, Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

Line, Fuel .5 OD x .25 ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 050247

Fitting, Tank
(Superseded to 03415900)

$

$

Not available

14

Gravely 050246

Bush., .563 x 1.06 x .688
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 021913

Bolt, Hex M8 x 1.25 25 mm
(Superseded to 05964900)

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 050245

Fuel Gauge and Cap
(Superseded to 03458400)

$29.99

$

Usually ships in 4-12 days

0

18

Gravely 050244

Tank, Fuel
(Superseded to 03468000)

$

$

Not available

19

Gravely 031884

Pad, Gas Tank
(Superseded to 03301900)

$

$

Not available

20

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 446354

Washer, Flat .313 x .875 x .065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 050394

Clamp, Steel .625
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 180079

Bolt, Hex 5/16-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0
