4900 - Poulan Chainsaw POWER UNIT Parts Diagram

Chainsaw

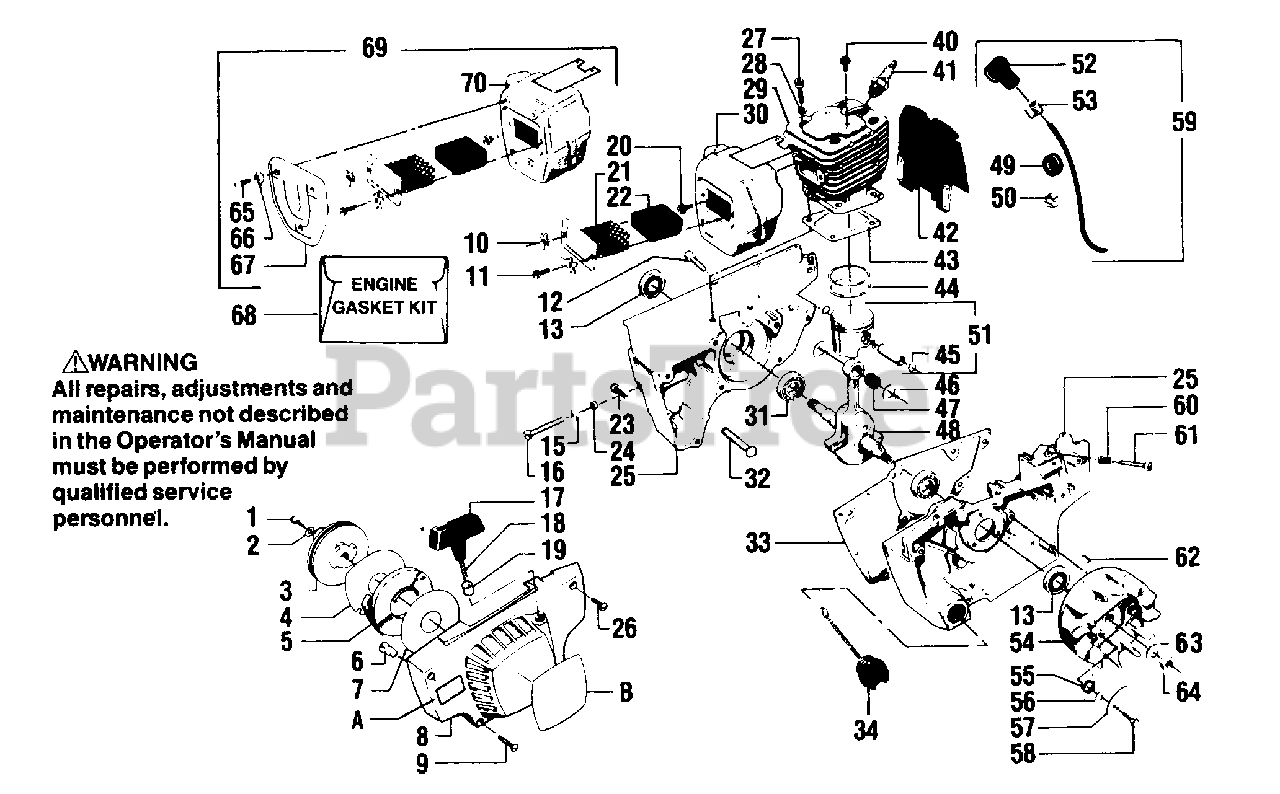

POWER UNIT Parts Diagram

  • Title

1

Poulan 530015092

Screw - 1/4 - 20 x 1/2 - Socket Hd.

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 530015209

Washer - Starter Pulley

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530011255

Pulley Starter

$

$

Not available

4

Poulan 530042041

Disc. - Starter - Top

$

$

Not available

5

Poulan 530042049

Spring - Starter Rewind

$

$

Not available

6

Poulan 530015323

Pin - Spring Anchor

$

$

Not available

7

Poulan 530042039

Disc. - Starter - Bottom

$

$

Not available

8

Poulan 530011815

Fan Housing Ass'y. (Incl. #6 & 19)

$

$

Not available

9

Poulan 530015239

Screw - Fan Hsg. Mfg. - 1/4 - 20 x 13/16 - Socket Head

$2.49

$

Usually ships in 3-10 days

0

10

Poulan 530024839

Retainer - Diffuser Mounting Screw

$

$

Not available

11

Poulan 530015433

Screws - 10 - 32 x 1/2 - Slotted Hex Hd.

$

$

Not available

12

Poulan 530015203

Screw - Crankcase #10 - 24 x 3/4 - Socket Head

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530019075

Seal - Crankshaft

$9.49

$

Usually ships in 3-10 days

0

15

Poulan 530023064

Pin - Bar Adjusting

$8.99

$

Usually ships in 3-10 days

0

16

Poulan 530015253

Screw - Bar Adj. - #10 - 24 x 2-3/16

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 530042056

Handle - Starter Rope

$

$

Not available

18

Poulan 530069234

Rope Kit

$

$

Not available

19

Poulan 530002820

Bushing - Rope Grommet

$

$

Not available

20

Poulan 530015298

Screw - Muffler Mfg. 12 - 24 x 5/8

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530022131

Diffuser - Muffler

$18.99

$

Usually ships in 3-10 days

0

22

Poulan 530023674

Screen - Spark Arrestor

$18.99

$

Usually ships in 3-10 days

0

23

Poulan 530015258

Screw - 6 - 40 x 1/2 - Socket Head

$1.49

$

Usually ships in 3-10 days

0

24

Poulan 530015064

Nut - Bar Adj. - #10 - 24 - Self Locking

$

$

Not available

25

Poulan 530010535

Crankcase Ass'y (Incl. #13, 15, 16, 23, 24, 31 & 32)

$

$

Not available

26

Poulan 530015196

Screw - Fan Hsg. Mfg. - 1/4 - 20 x 1-1/8 Socket Head

$

$

Not available

27

Poulan 530001711

Screw - Cylinder - 1/4 - 20 x 1 Socket Hd.

$1.99

$

In Stock, only 1 left!

0

28

Poulan 530001677

Lockwasher - Cylinder

$

$

Not available

29

Cylinder

$

$

Not available

Poulan 530012073

4400

$

$

Not available

Poulan 530012074

4900

$

$

Not available

Poulan 530012092

5200

$

$

Not available

30

Poulan 530022274

Ass'y. - Muffler

$

$

Not available

31

Poulan 530032034

Bearing - Crankshaft

$

$

Not available

32

Kit - Bar Stud Replacement

$

$

Not available

Poulan 530069136

3/8"

$

$

Not available

Poulan 530030039

5/16"

$

$

Not available

Poulan 530069144

5/16" (fits crankcase with 3/8" stud openings)

$

$

Not available

33

Poulan 530019085

Gasket - Crankcase

$

$

Not available

34

Poulan 530010175

Oil Cap Ass'y. (Incl. "O" Ring)

$

$

Not available

40

Poulan 530015306

Screw - Cylinder Cover Bracket

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 952030084

Spark Plug (CJ-8)
(Superseded to 952030249)

$4.99

$

In Stock, Qty 20+

0

42

Poulan 530022128

Air Baffle Assembly

$

$

Not available

43

Poulan 530019081

Gasket - Cylinder

$

$

Not available

44

Piston Ring

$

$

Not available

Poulan 530023655

4200

$

$

Not available

Poulan 530024769

4900

$17.99

$

In Stock, only 2 left!

0

Poulan 530023645

5200

$

$

Not available

45

Poulan 530015207

Retainer - Piston Pin

$

$

Not available

46

Poulan 530015208

Washer - Thrust (Rod Top)

$

$

Not available

47

Poulan 530032031

Bearing - Top Rod

$

$

Not available

48

Poulan 530025884

Crankshaft & Rod Assembly (Incl.#36 from page 3)

$

$

Not available

49

Poulan 530023816

Grommet - Lead Wire

$

$

Not available

50

Poulan 530015195

Clip - High Tension Lead

$2.49

$

Usually ships in 3-10 days

0

51

Piston Assembly - (Incl.#45 & pin)

$

$

Not available

Poulan 530022125

4200

$60.99

$

In Stock, only 1 left!

0

Poulan 530010529

4900

$

$

Not available

Poulan 530010531

5400

$

$

Not available

52

Poulan 530003934

Boot - Spark Plug

$

$

Not available

53

Poulan 530003933

Connector - Spark Plug
(Superseded to 507475326)

$

$

Not available

54

Poulan 530039066

Flywheel

$

$

Not available

55

Poulan 530042062

Spring - Starter Dog

$

$

Not available

56

Poulan 530001718

Washer - Starter Dog

$

$

Not available

57

Poulan 530042064

Dog - Starter

$

$

Not available

58

Poulan 530004261

Stud - Starter Dog

$

$

Not available

59

Poulan 530039065

High Tension Lead Ass'y. - Ignition (Incl.#52 & 53)

$

$

Not available

60

Poulan 530023716

Spring - Idle Adj. Screw

$

$

Not available

61

Poulan 530015202

Screw Adj.-Idle Speed

$

$

Not available

62

Poulan 530002595

Key - Flywheel

$5.99

$

In Stock, Qty 7

0

63

Poulan 530001626

Washer - Flywheel Mtg. - 3/8

$

$

Not available

64

Poulan 530001722

Locknut - Flywheel Mounting - 3/8 - 24

$4.99

$

In Stock, only 4 left!

0

65

Poulan 530001636

Hex Socket Cap Screw - 1/4 - 20 x 5/8 - (Optional)

$2.49

$

Usually ships in 3-10 days

0

66

Poulan 530015159

Washer - Conical (Optional)

$

$

Not available

67

Poulan 530023995

Heat Shield (Optional)

$

$

Not available

68

Poulan 530069180

Kit - Engine Gasket (Inc. 33,43,49))

$

$

Not available

69

Poulan 530069012

Muffler Heat Shield (Optional) (Incl.#65, 66, 67 & 70)

$

$

Not available

70

Poulan 530010257

Hex Fastener & Muffler Ass'y. (Optional)

$

$

Not available

A

Poulan 530024885

Decal Professional User

$

$

Not available

B

Decal - Fan Housing

$

$

Not available

Poulan 530024741

4400

$

$

Not available

Poulan 530024776

4900

$

$

Not available

Poulan 530024739

5400

$

$

Not available
