4900 - Poulan Chainsaw HANDGUARD & HANDLEBAR Parts Diagram

Chainsaw

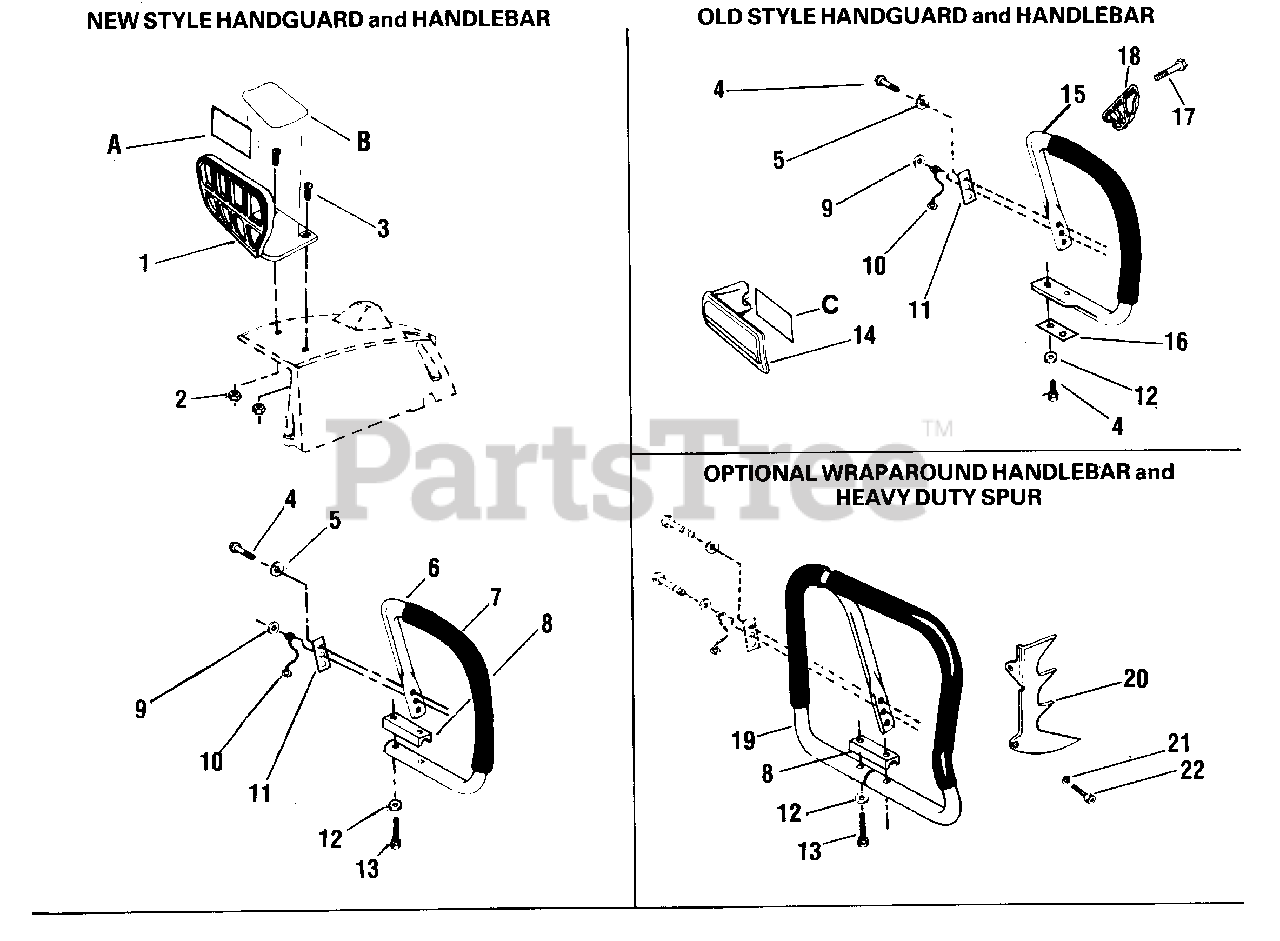

HANDGUARD & HANDLEBAR Parts Diagram

  • Title

1

Poulan 530025948

andguard

$

$

Not available

2

Poulan 530001543

Nut #10

$

$

Not available

3

Poulan 530015406

Screw - 10 - 24 x 1/2

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530015459

Screw - 1/4 - 20 x 3/4

$

$

Not available

New Style Handlebar

$

$

Not available

Old Style Handlebar

$

$

Not available

Wraparound Handlebar

$

$

Not available

5

Poulan 530001677

Lockwasher

$

$

Not available

New Style Handlebar

$

$

Not available

Old Style Handlebar

$

$

Not available

Wraparound Handlebar

$

$

Not available

6

Poulan 530022266

Handlebar - Flushcut

$

$

Not available

7

Poulan 530069171

Kit - Handlebar Grip

$

$

Not available

8

Poulan 530012109

Adaptor - Handlebar

$

$

Not available

9

Poulan 530015209

Washer - Flat

$2.49

$

Usually ships in 3-10 days

0

10

Poulan 530023682

Lead Ground

$

$

Not available

11

Poulan 530025241

Handlebar Brace - Rear

$

$

Not available

12

Poulan 530015159

Washer - Conical

$

$

Not available

13

Poulan 530015402

Screw - 1/4 - 20 x 1-3/8

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530024466

Handguard

$

$

Not available

16

Poulan 530025239

Handlebar - Brace Bottom

$

$

Not available

15

Poulan 530022239

Handlebar - Flashcut

$

$

Not available

17

Poulan 530015509

Screw - Handguard

$3.99

$

In Stock, only 2 left!

0

18

Poulan 530024467

Cap - Handguard

$

$

Not available

19

Poulan 530069164

Kit-Wraparound Handlebar

Note: (Inc. 8,12,13,20,21, 22)-Optional(Incl. 2 Handlebars,20,21,22)

$

$

Not available

20

Poulan 530025954

Spur - Heavy Duty

$

$

Not available

21

Poulan 530001642

Lockwasher - Spur

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530001636

Screw - Spur

$2.49

$

Usually ships in 3-10 days

0

A

Poulan 530025949

Decal - Starting Instructions

$

$

Not available

B

Poulan 530026841

Decal - Kickback

$

$

Not available

C

Poulan 530025631

Decal - Handguard

$

$

Not available
