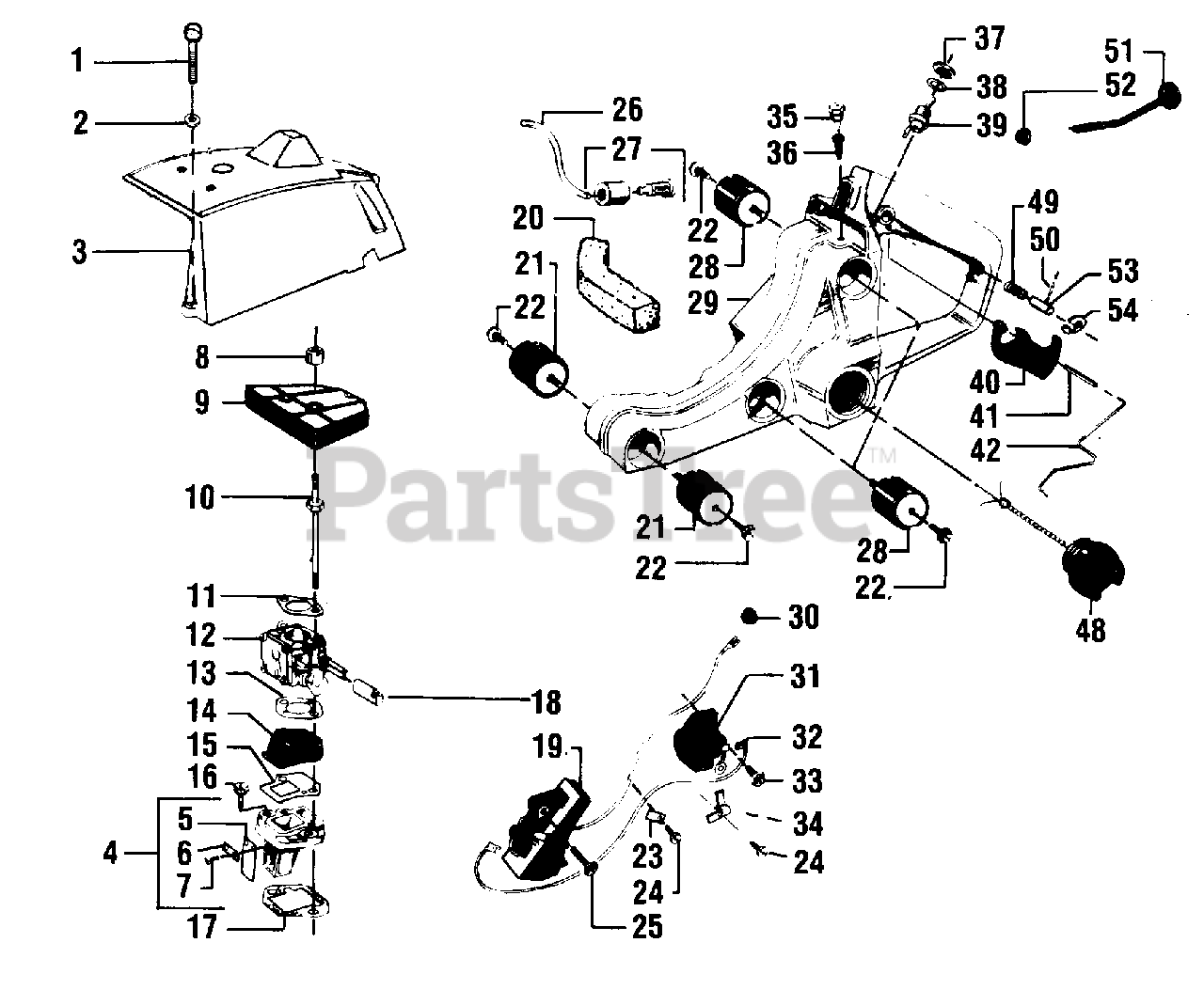

CYLINDER, FUEL, & AIR FILTER Parts Diagram

  • Title

1

Poulan 530015329

Screw - Cylinder Carb. Cover #10 x 24

$

$

Not available

2

Poulan 530015328

Washer - #10 Heavy Lock

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530011551

Cover - Cylinder & Carburetor

$

$

Not available

4

Poulan 530010172

Reed Valve Ass'y. (Incl. #5, 6 & 7)

$

$

Not available

5

Poulan 530023643

Reed

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 530002580

Stop - Reed

$

$

Not available

7

Poulan 530001713

Screw - Reed Mounting #4 - 40 x 18 Pan Head

$

$

Not available

8

Poulan 530023696

Nut - Air Filter

$

$

Not available

9

Poulan 530010247

Air Filter Assembly

$

$

Not available

10

Poulan 530015204

Stud - Carburetor

$

$

Not available

11

Poulan 530023664

Plate - Air Filter

$3.99

$

Usually ships in 3-10 days

0

12

Carburetor Assembly -

$

$

Not available

Poulan 530034096

4400

$

$

Not available

Poulan 530034111

4900 & 5400

$

$

Not available

13

Poulan 530019082

Gasket - Carburetor to Adaptor Included in Kit - Engine Gasket 69180

$

$

Not available

14

Poulan 530023654

Adaptor - Carburetor

$

$

Not available

15

Poulan 530019083

Gasket - Carb. Adaptor to Reed Valve Ass'y incl in Kit - Engine Gasket 69180

$

$

Not available

16

Poulan 530015038

Screw - Reed Valve Assembly - 1 - 24 x 3/4

$

$

Not available

17

Poulan 530019086

Gasket - Reed Valve Ass'y. Carb. Included in Kit - Engine Gasket 69180

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530024003

Grommet - Carb. Adj. Screws

$

$

Not available

19

Poulan 530039067

Module - Ignition (Incl. #30 & 32)

$

$

Not available

20

Poulan 530023692

Seal - Sawdust Included in Kit - Engine Gasket 69180

$

$

Not available

21

Poulan 530024224

Mount Forward Isolator (Hourglass Shape)

$

$

Not available

22

Poulan 530015036

Screw - Crankcase to Mounts - 10 - 24 x 1/2
(Superseded to 530016141)

$5.99

$

Usually ships in 3-10 days

0

23

Poulan 530023661

Clamp - Lead Wire Ignition

$2.49

$

Usually ships in 3-10 days

0

Poulan 530025856

Clamp - Lead Wire

$

$

Not available

24

Poulan 530001726

Screw - 8 - 32 x 5/16 - Tapping

$

$

Not available

25

Poulan 530015198

Screw - Module Ignition - 10 - 24 x 7/8

$

$

Not available

26

Poulan 530021022

Line - Fuel Pick-up (Bulk No. 8136)

$

$

Not available

27

Fuel Pick-up Assembly

$

$

Not available

Poulan 530034104

4400 & 4900

$

$

Not available

Poulan 530034114

5200

$

$

Not available

28

Poulan 530024225

Mount - Center and Rear Isolator (Cylindrical Shape)

$

$

Not available

29

Poulan 530010749

Fuel Tank & Handle Ass'y. (Incl.#20, 48, 49, 52 & 53)

$

$

Not available

30

Poulan 530039069

Grommet - Lead Wire Included in Kit - Engine Gasket 69180

$

$

Not available

31

Poulan 530039068

Transformer Ass'y. (Incl.#59 on Pg. 1)

$

$

Not available

32

Poulan 530039064

Lead Wire - Module to Transformer

$

$

Not available

33

Poulan 530015038

Screw - 10 - 24 x 3/4 Hex Washer Hd. - Transformer

$

$

Not available

34

Poulan 530025856

Clamp Lead Wire

$

$

Not available

35

Poulan 530010528

Vent - Assembly - Fuel Tank (Incl. #35)

$

$

Not available

36

Poulan 530026119

Check Valve - Fuel Tank Vent

$5.99

$

In Stock, Qty 10

0

37

Poulan 530023575

Nut - Switch Mounting
(Superseded to 530002582)

$

$

Not available

38

Poulan 530015214

Lockwasher - Switch Mounting

$

$

Not available

39

Poulan 530023732

Switch - Ignition

$

$

Not available

40

Poulan 530023658

Trigger - Throttle

$

$

Not available

41

Poulan 530015008

Pin - Trigger

$

$

Not available

42

Poulan 530026351

Wire - Throttle

$

$

Not available

48

Poulan 530010331

Fuel Cap Ass'y. (Incl. "O" Ring)

$

$

Not available

49

Poulan 530024772

Spring - Throttle Lock

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 530024771

Pin - Throttle Lock

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 530024762

Choke Knob

$

$

Not available

52

Poulan 530023665

Grommet - Choke Rod Included in Kit - Engine Gasket 69180

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 530024773

Sleeve - Throttle Lock

$

$

Not available

54

Poulan 530001672

"E" Ring - Throttle Lock

$

$

Not available
