4900 - Poulan Chainsaw CARBURETORS HS-168A, HS-176A Parts Diagram

Chainsaw

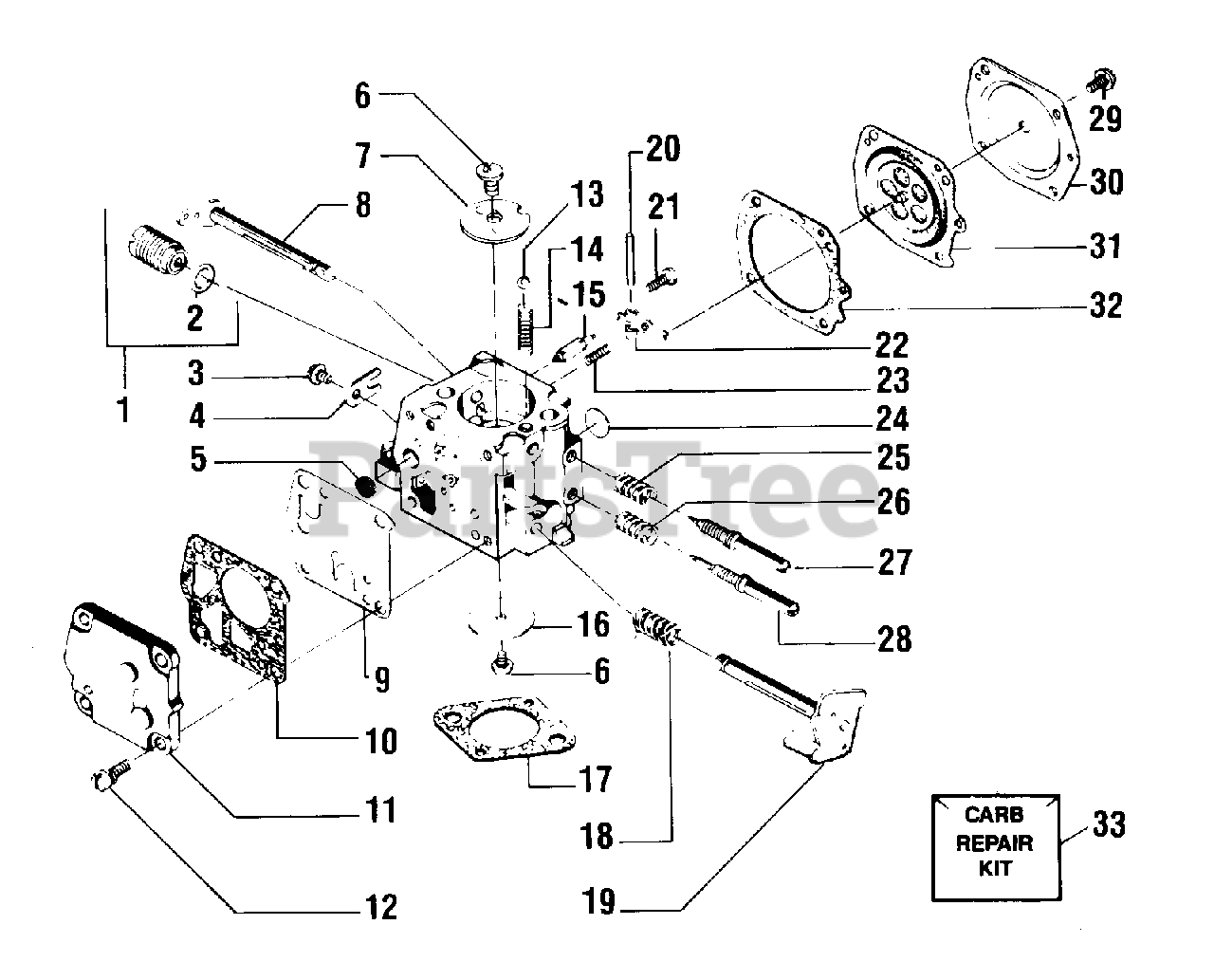

CARBURETORS HS-168A, HS-176A Parts Diagram

  • Title

1

Poulan 530034112

Governor Valve Assembly (Incl. #2)

$

$

Not available

2

Poulan 530034024

Gasket - Governor Valve

$

$

Not available

3

Poulan 530003784

Screw - Throttle Shaft Clip Retainer

$

$

Not available

4

Poulan 530003783

Clip - Throttle Shaft

$

$

Not available

5

Poulan 530003780

Inlet Screen

$

$

Not available

6

Poulan 530003784

Shutter Screw & Lockwasher

$

$

Not available

7

Poulan 530034107

Choke Shutter

$

$

Not available

8

Poulan 530034106

Choke Shaft & Lever

$

$

Not available

9

Poulan 530003771

Fuel Pump Diaphragm

$

$

Not available

10

Poulan 530003772

Fuel Pump Gasket

$5.49

$

In Stock, only 2 left!

0

11

Poulan 530003773

Fuel Pump Cover

$

$

Not available

12

Poulan 530003774

Screw and Lockwasher - Fuel Pump Cover Retainer

$

$

Not available

13

Poulan 530003765

Choke Friction Ball

$

$

Not available

14

Poulan 530003424

Choke Friction Spring

$

$

Not available

15

Poulan 530003779

Needle - Inlet

$

$

Not available

16

Poulan 530003416

Throttle Shutter

$

$

Not available

17

Poulan 530019082

Gasket

$

$

Not available

18

Poulan 530034103

Spring - Throttle Shaft Return

$

$

Not available

19

Poulan 530034102

Throttle Shaft & Lever

$

$

Not available

20

Poulan 530003777

Pin - Inlet Pinion

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 530003778

Screw - Inlet Pinion Pin Retainer

$

$

Not available

22

Poulan 530003776

Lever - Inlet Control

$

$

Not available

23

Poulan 530003727

Spring - Inlet Tension

$

$

Not available

24

Poulan 530003764

Plug - Body Channel Welch (Large)

$

$

Not available

25

Poulan 530034109

Spring - High Speed Mixture Spring (Blue)

$

$

Not available

26

Poulan 530034108

Spring - Idle Mixture Screw (Yellow)

$

$

Not available

27

Poulan 530034101

HIGH SPEED SCREW

$

$

Not available

Poulan 535034101

DRIVE WHEEL

$

$

Not available

28

Poulan 530034099

Screw - Idle Mixture

$

$

Not available

29

Poulan 530003717

Screw & Lockwasher - Diaphragm

$

$

Not available

30

Poulan 003770

Cover - Diaphragm (Dana part number)

$

$

Not available

31

Poulan 530003769

Diaphragm

$

$

Not available

32

Poulan 530003768

Gasket - Diaphragm

$

$

Not available

33

Poulan 530034023

Carb. - Repair Parts Kit (Inc. 5,9,10,15,17, 22,24,31,32)

$

$

Not available
