4900 - Poulan Chainsaw BOW GUIDE ASSEMBLY Parts Diagram

Chainsaw

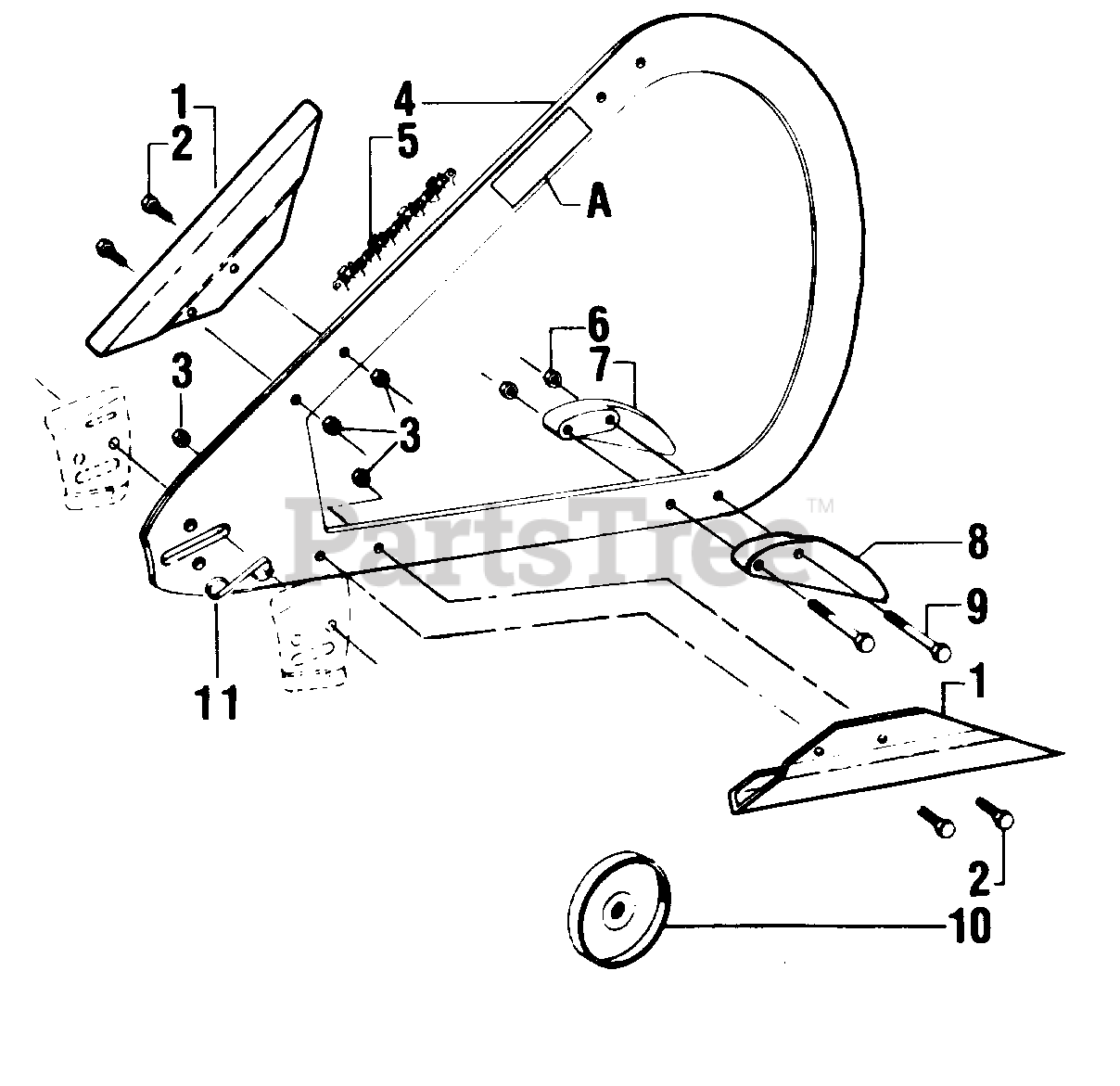

BOW GUIDE ASSEMBLY Parts Diagram

  • Title

1

Chain Guard - Upper & Lower

$

$

Not available

Poulan 530011275

13" Bow Guide

$

$

Not available

Poulan 530022162

14" Bow Guide

$

$

Not available

2

Poulan 530001709

Screw - Guard Mtg. (12 - 24 x 5/8 Hex Head)

$4.99

$

In Stock, Qty 7

0

3

Poulan 530001725

Locknut - 12 - 24

$3.99

$

Usually ships in 3-10 days

0

4

Bow Guide (See Bow & Chain Information

$

$

Not available

5

Chain (See Bow & Chain Information)

$

$

Not available

6

Poulan 530001615

Locknut - Spike Mtg. (1/4 - 20)

$

$

Not available

7

Poulan 530001207

Bumper Spike - Left

$

$

Not available

8

Poulan 530001208

Bumper Spike - Right

$

$

Not available

9

Poulan 530625567

Screw - Bumper Spike Mtg. (1/4 - 20 x 1- 3/4)Hex Head)

$

$

Not available

10

Poulan 530048038

Drum and Sprocket Assembly (For .404 pitch only)

$

$

Not available

Poulan 952000439

13" Reversible Bow Attachment (.050 gauge)

$

$

Not available

Poulan 952000481

14" Reversible Bow Attachment (.050 gauge) NS

$

$

Not available

Poulan 952000483

14" Reversible Bow Attachment (.063 gauge)

$

$

Not available

11

Poulan 530055044

"S" Clip

$

$

Not available

A

Poulan 530025384

Decal - Bow Buide Warning

$

$

Not available

Poulan 530025383

Decal - Handquard (Not Shown)

$

$

Not available
