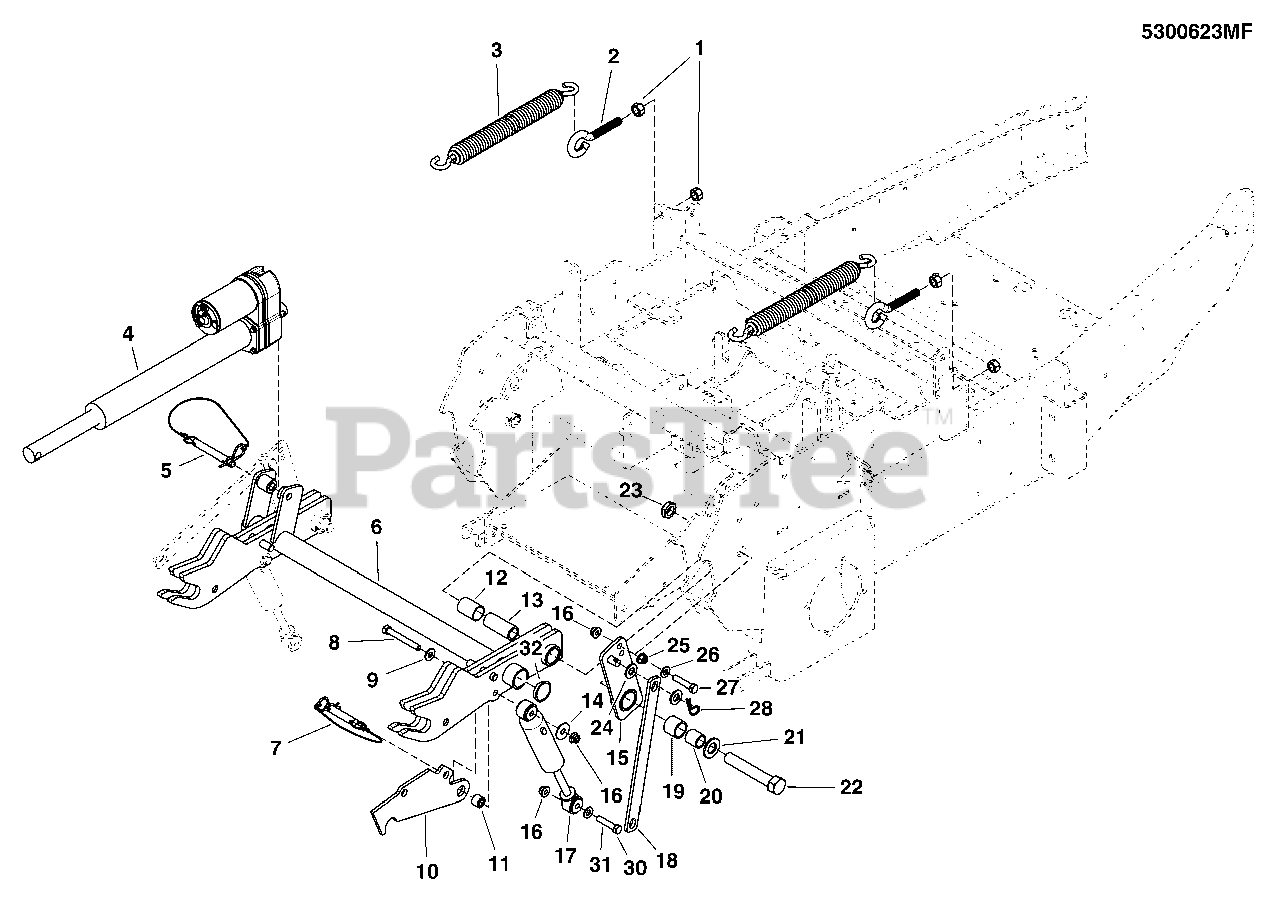

4900 (5901337) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Traction Assist & Imp Mnt Group (5300623MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

Traction Assist & Imp Mnt Group (5300623MF) Parts Diagram

  • Title

1

Simplicity 5025038SM

NUT, 1/2-13 HEX

$

$

Not available

2

Simplicity 5025263X44YP

EYE BOLT, 1/2-13 X 5.5, 1 EYE, CZ

$25.99

$

Usually ships in 2-12 days

0

3

Simplicity 5023392YP

SPRING-EXT, 1.393ODX13.25LGX.218WR

$74.99

$

Usually ships in 2-12 days

0

4

Simplicity 5103120YP

ACTUATOR, 12" STROKE, 1600 LBS

$1134.99

$

Usually ships in 2-12 days

0

5

Simplicity 5023082SM

HITCH PIN ASSY., 1/2 X 3.50

$22.99

$

Usually ships in 2-12 days

0

6

Simplicity 5403166DYP

WELD, ATTACHMENT MOUNT - RED

$444.99

$

Usually ships in 2-12 days

0

7

Simplicity 5100179SM

HITCH PIN ASSEMBLY, 1/2" X 2.50"

$29.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025013X24SM

BOLT, 3/8-16 X 3 GD5 YZ

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 703302

WASHER, 5/16 USS

Note: (5025337)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5403262DYP

LATCH, FRONT FRAME - RED

$22.99

$

Usually ships in 2-12 days

0

11

Simplicity 5104146YP

SPACER, .39 X .75 X .580

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 5022852SM

PIVOT BEARING-1.00 X 1.125 ODX1.50

$33.99

$

In Stock, Qty 17

0

13

Simplicity 5047489SM

SPACER, .75 X 1.00 X 2.38

$35.99

$

In Stock, Qty 14

0

14

Simplicity 5025165SM

WASHER-3/8 FENDER

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 5403374DYP

WELD, SPRING MOUNT PIVOT - LH - RED

$33.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5101419YP

SHOCK ABSORBER, OUT FRONT MOWER

$96.99

$

Usually ships in 2-12 days

0

18

Simplicity 5403261DYP

BAR, SPRING ASSIST LINK - RED

$26.99

$

Usually ships in 2-12 days

0

19

Simplicity 5101205YP

BUSHING, BRASS, 1.00 X 1.25 X 1.00

$11.99

$

Usually ships in 2-12 days

0

20

Simplicity 5101238YP

SPACER, .76 X 1.00 X 1.06

$11.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025160SM

WASHER, 3/4 SAE

$3.99

$

In Stock, Qty 7

0

22

Simplicity 5025265X36YP

BOLT, HEX HD, 3/4-16 X 4-1/2, GD5 YZ

$16.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025448SM

NUT, 3/4-16, HEX JAM NYLON LOCK

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 12

0

25

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

26

Simplicity 703302

WASHER, 5/16 USS

Note: (5025337)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, only 2 left!

0

28

Simplicity 5025210SM

PIN, HAIR, .0915 X 1-7/8
(Superseded to 703796)

$5.49

$

In Stock, only 1 left!

0

29

Simplicity 5403375DYP

WELD, SPRING MOUNT PIVOT - RH - RED

Note: (NOT SHOWN)

$33.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

32

Simplicity 5023484SM

PLUG, PANEL, 1.25 - BLACK

$3.99

$

In Stock, Qty 20+

0
