4900 (5901337) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Pump Drive Group (5300614MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

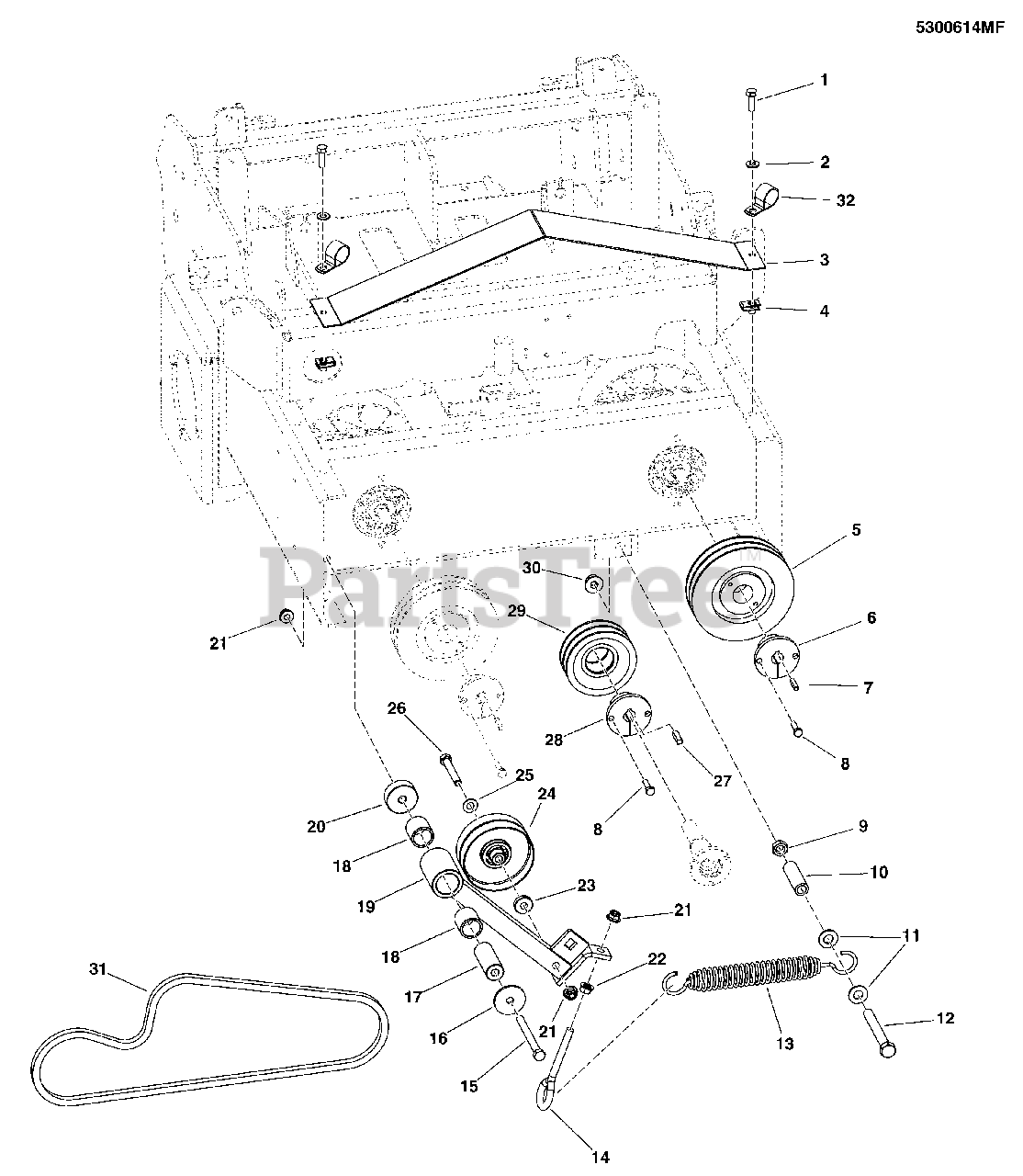

Pump Drive Group (5300614MF) Parts Diagram

  • Title

1

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

2

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

3

Simplicity 5408522DYP

GUARD, OUTFRONT BELT, PERFORATED

$188.99

$

Usually ships in 2-12 days

0

4

Simplicity 5022308SM

BODY CLIP, 5/16-18-7GA MATERIAL

$5.99

$

In Stock, only 2 left!

0

5

Simplicity 5102696YP

PULLEY 5.00 OD, DOUBLE "A" GROOVE

$136.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022383YP

BUSHING, 17MM, HQ

$27.99

$

Usually ships in 2-12 days

0

7

Simplicity 5023254SM

KEY, 5MM SQ. W/RADIUS

$4.49

$

In Stock, Qty 8

0

8

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 5025301SM

NUT, 1/2-13 HEX JAM

$3.49

$

In Stock, only 1 left!

0

10

Simplicity 5050857X2P25YP

HOSE, 1/2" PUSH-ON 2.25"

$

$

Not available

11

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 12

0

12

Simplicity 5025017X32YP

BOLT, 1/2-13 X 4 GD5 YZ

$6.49

$

In Stock, only 4 left!

0

13

Simplicity 5100633YP

SPRING, EXTENSION, SWIVEL, SHORT HOOK

$34.99

$

Usually ships in 2-12 days

0

14

Simplicity 5023497SM

EYE BOLT, 3/8-16 X 5, 1 EYE

$9.49

$

In Stock, only 1 left!

0

15

Simplicity 5025013X32SM

BOLT, 3/8-16 X 4 GD5 YZ

$3.99

$

In Stock, Qty 11

0

16

Simplicity 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

In Stock, only 2 left!

0

17

Simplicity 5102004YP

SPACER, .39 X 1.00 X 2.55, SS

$27.99

$

In Stock, only 1 left!

0

18

Simplicity 5022157SM

SPACER, .39 X 1.00 X 2.55

$12.99

$

In Stock, only 2 left!

0

19

Simplicity 5408176DYP

WELD, ARM, PUMP DRIVE IDLER - RED

$102.99

$

Usually ships in 2-12 days

0

20

Simplicity 5101465YP

SPACER, .39 X 1.75 X .63, YZ

$19.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

23

Simplicity 5101502YP

SPACER, .39 X 1.00 X .25

$6.49

$

Usually ships in 2-12 days

0

24

Simplicity 5022373YP

PULLEY, FLAT IDLER 4

$66.99

$

Usually ships in 2-12 days

0

25

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

26

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2 GD5 YZ
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 5050407X8SM

KEY, 1/4 SQ. X 1.00

$3.99

$

In Stock, only 1 left!

0

28

Simplicity 5101646YP

TAPER LOCK BUSHING, HQ-1-1/8"

$25.99

$

Usually ships in 2-12 days

0

29

Simplicity 5101723YP

PULLEY, 4.25 OD X 2 GROOVE, DH2425

$64.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

31

Simplicity 5102695YP

BELT, 55.6 EL, MATCHED SET, A-SEC

$59.99

$

Usually ships in 2-12 days

0

32

Simplicity 5023173SM

CLAMP, HOSE, 1.00 DIA.

$3.99

$

Usually ships in 2-12 days

0
