4900 (5901337) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Instrument Control Panel Group (5300619MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

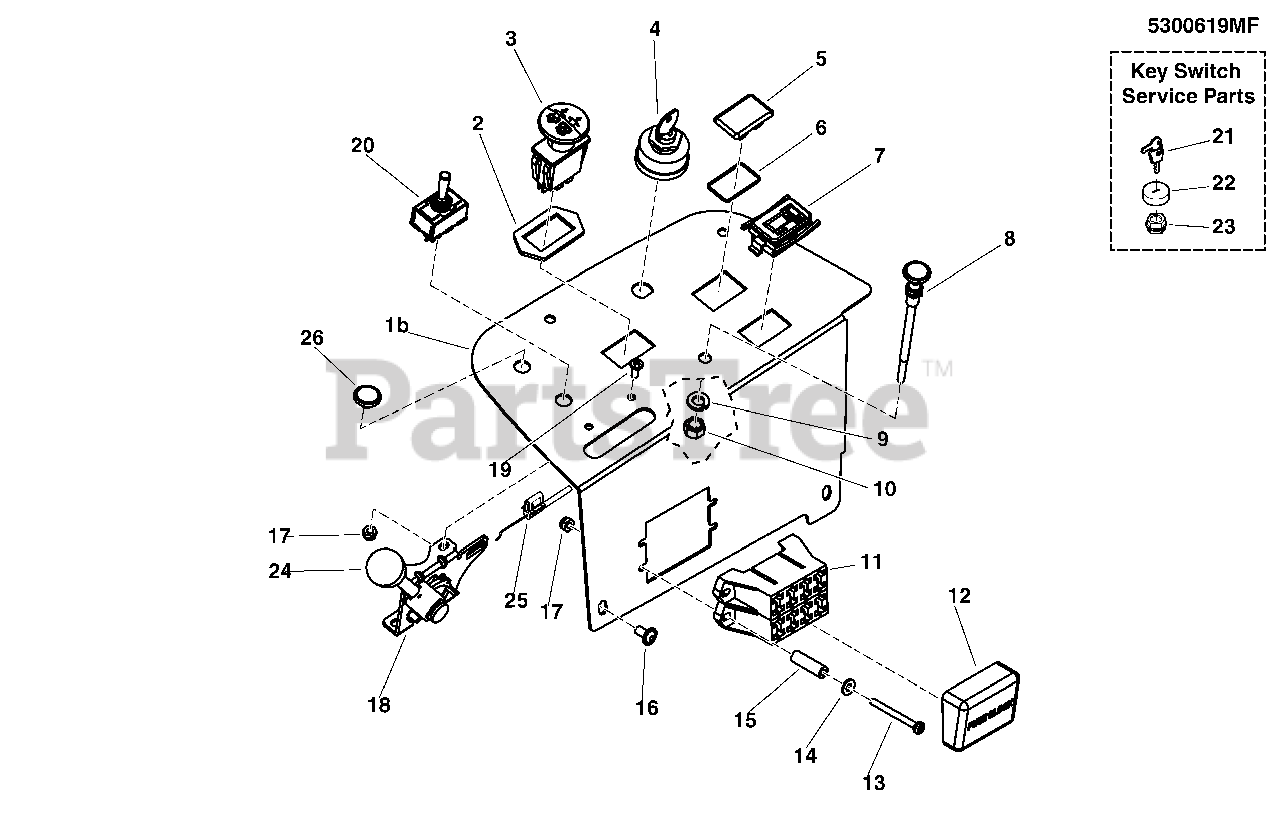

Instrument Control Panel Group (5300619MF) Parts Diagram

  • Title

1

Simplicity 5404579AYP

DASH PANEL - BLACK

$47.99

$

Usually ships in 2-12 days

0

2

Simplicity 5022222SM

RING, SWITCH RETAINER, PTO

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 5022180SM

SWITCH, Blade Engage
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4

Simplicity 5100021YP

SWITCH, IGNITION, 25 AMP, 6 PO

Note: (INCLUDES P/N 21, 22, 23)

$46.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709188SM

PLUG, Hole, Electric Lift (Hydro models only)

$4.99

$

In Stock, only 1 left!

0

6

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

7

HOUR METER, ASSEMBLE

Note: (* See Footnote)

$

$

Not available

8

Simplicity 5047143SM

CABLE, CHOKE CONTROL, 39.5"

$56.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025171SM

WASHER, 3/8" SPLIT LOCK

$3.99

$

In Stock, only 1 left!

0

10

Simplicity 5025035SM

NUT, 3/8 - 24 HEX

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5021518SM

FUSE, BLOCK

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 5100145YP

COVER, DOUBLE FUSE BLOCK

$9.49

$

Usually ships in 2-12 days

0

13

Simplicity 5025270X16YP

SCREW, #10-24 X 2 ROUND PHILLIPS

$

$

Not available

14

Simplicity 5023499SM

WASHER, #10 SAE

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5061763YP

SPACER, .20 X .38 X 1.25

$

$

Not available

16

Simplicity 5025299X4SM

SCREW, ALLEN HEAD 1/4-20 X .500 ZINC PHOS

$4.99

$

In Stock, only 2 left!

0

17

Simplicity 703412

NUT, Nylock, #10-24, GR2

Note: (5025271)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 5101537SM

LEVER, THROTTLE CONTROL, HEAVY DUTY

$48.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025179X4SM

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5021734SM

SWITCH, Actuator

$

$

Not available

21

Simplicity 5022789YP

KEY, IGNITION MOLDED SET (SV)
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 20+

0

22

Simplicity 5022790YP

COVER, PLASTIC, SNAP ON (SV)
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 5022791SM

NUT, PLASTIC (SV)

$3.49

$

In Stock, only 1 left!

0

24

Simplicity 5046360X1SM

THROTTLE CONTROL HANDLE/KNOB

$10.99

$

In Stock, only 1 left!

0

25

Simplicity 5101073SM

CABLE, THROTTLE, 42"

$33.99

$

In Stock, only 1 left!

0

26

Simplicity 5101735YP

PLUG, 1/2, BPF - 1/2

$2.99

$

Usually ships in 2-12 days

0
