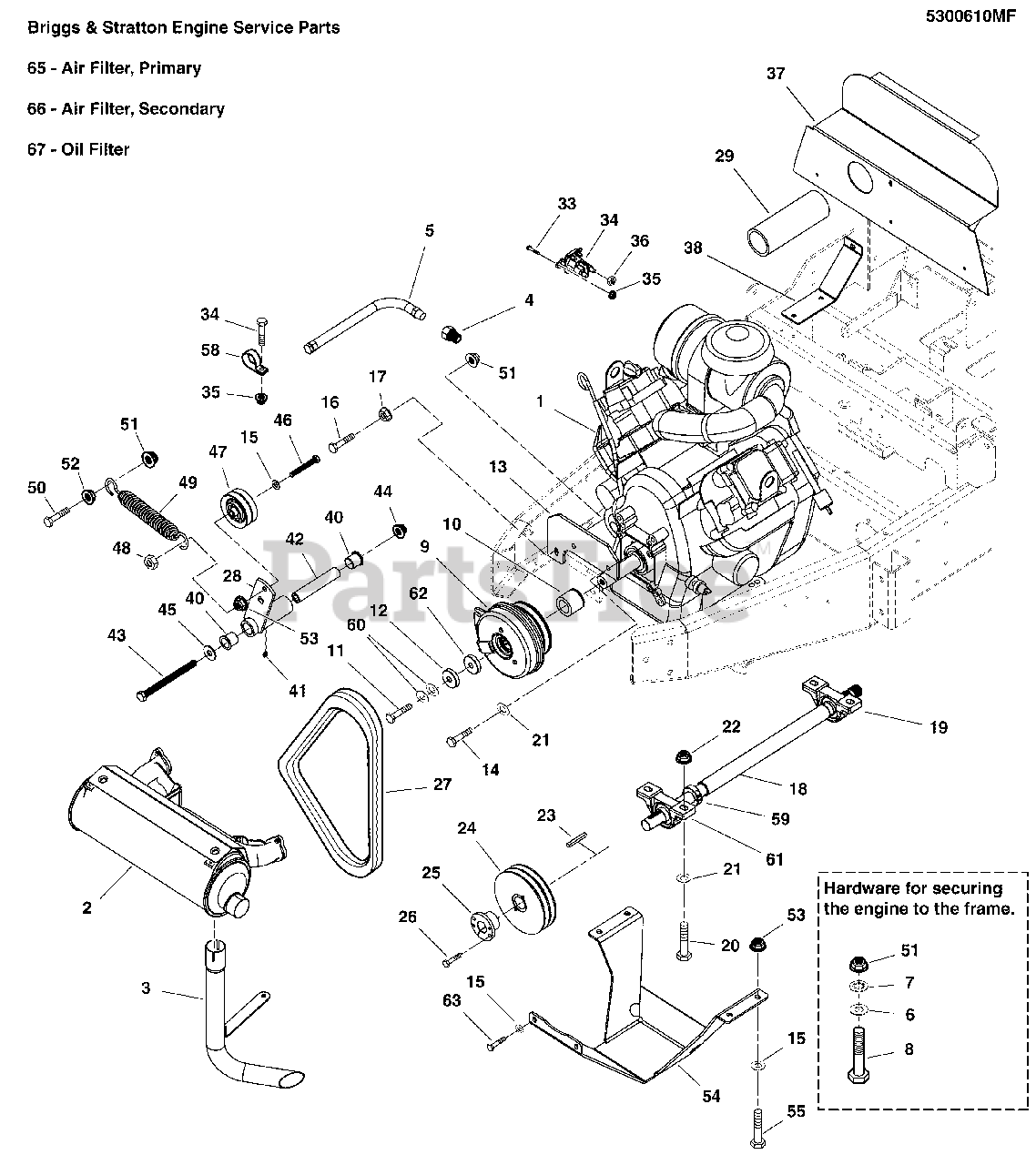

4900 (5901337) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Engine Group - Briggs & Stratton (5300610MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

Engine Group - Briggs & Stratton (5300610MF) Parts Diagram

  • Title

1

ENGINE, HORIZONTAL, B&S

$

$

Not available

2

Simplicity 5101643YP

MUFFLER, VANGUARD

$245.99

$

Usually ships in 2-12 days

0

3

Simplicity 5101644YP

TAIL PIPE, VANGUARD

$93.99

$

Usually ships in 2-12 days

0

4

Simplicity 5100366SM

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF

$13.99

$

Usually ships in 2-12 days

0

5

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

In Stock, only 1 left!

0

6

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 5025188SM

WASHER, 5/16" Internal Tooth Lock

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 5025011X18SM

BOLT, 5/16-18 X 2-1/4" GD5 YZ

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 5101172YP

CLUTCH, WARNER, OUT-FRONT

$475.99

$

Usually ships in 2-12 days

0

10

Simplicity 5101689YP

SPACER, 1.13 X 1.75 X .90, YZ

$21.99

$

Usually ships in 2-12 days

0

11

Simplicity 5102861YP

BOLT, CRANKSHAFT, 7/16 X 1-3/4

$7.49

$

Usually ships in 2-12 days

0

12

Simplicity 5102965YP

SPACER, .45 X 1.88 X .38

$23.99

$

Usually ships in 2-12 days

0

13

Simplicity 5403259DYP

PLATE, CLUTCH ANCHOR - RED

$20.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025015X8YP

BOLT, 7/16-14 X 1 GD5

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

16

Simplicity 5025011X30SM

BOLT, 5/16-18 X 3-3/4 GD5

$6.49

$

Usually ships in 2-12 days

0

17

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

18

Simplicity 5104034YP

SHAFT, PUMP DRIVE, S800X

$487.99

$

Usually ships in 2-12 days

0

19

Simplicity 5021095SM

BEARING, PILLOW BLOCK, 1

$75.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025016X14YP

BOLT, 7/16-20 X 1-3/4 GD5

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025381YP

WASHER, 7/16 GD9 YZ

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025094YP

NUT, 7/16-20 HEX NYLON LOCK

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 5050407X16SM

KEY, 1/4" SQ. X 2.00

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 5101182YP

PULLEY, 6.45" OD, DOUBLE A

$165.99

$

Usually ships in 2-12 days

0

25

Simplicity 5020819SM

BUSHING, TAPERED HUB

$26.99

$

In Stock, Qty 5

0

26

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 5101179YP

BELT, A-SEC, 37.08 EL, ARAMID, RAW EDGE

$40.99

$

Usually ships in 2-12 days

0

28

Simplicity 5403427DYP

WELD, IDLER ARM - RED

$59.99

$

Usually ships in 2-12 days

0

29

Simplicity 5101736YP

HOSE, AIR INLET, 2 ID X 7 LONG

$37.99

$

Usually ships in 2-12 days

0

30

Simplicity 799621

HARNESS-WIRING

Note: (Not Shown)

$76.99

$

Usually ships in 2-12 days

0

31

Simplicity 5101647YP

BATTERY CABLE, POSITIVE, 42"

Note: (Not Shown)

$34.99

$

Usually ships in 2-12 days

0

32

Simplicity 5044732YP

BATTERY CABLE, POSITIVE, 8

Note: (Not Shown)

$10.99

$

Usually ships in 2-12 days

0

33

Simplicity 1724815SM

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

34

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 5025126SM

NUT, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

36

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

37

Simplicity 5408504DYP

PLATE, HOOD BAFFLE, B&S 31 - RED

$98.99

$

Usually ships in 2-12 days

0

38

Simplicity 5404547DYP

BRACKET, BAFFLE SUPPORT - RED

$26.99

$

Usually ships in 2-12 days

0

39

Simplicity 791745

Hose-Vacuum

Note: (Not shown)(Cut to fit)

$10.99

$

In Stock, Qty 20+

0

40

Simplicity 5022250SM

BUSHING, FLANGE, 7/8 X 1 L

$9.49

$

Usually ships in 2-12 days

0

41

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 3 left!

0

42

Simplicity 5045305SM

SLEEVE, A-ARM PIVOT-LONG

$64.99

$

Usually ships in 2-12 days

0

43

Simplicity 5025017X48SM

BOLT, 1/2-13 X 6 GD5 YZ

$6.49

$

Usually ships in 2-12 days

0

44

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0

45

Simplicity 5025150SM

WASHER, 1/2" USS

$3.99

$

Usually ships in 2-12 days

0

46

Simplicity 5025013X22SM

CAPSCREW, Hex Head, 3/8-16 X 2-3/4

$4.49

$

In Stock, Qty 5

0

47

Simplicity 5022797YP

PULLEY, IDLER DOUBLE-A

$100.99

$

Usually ships in 2-12 days

0

48

Simplicity 5025100SM

NUT, Hex, Side Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 5100633YP

SPRING-EXT, 1.25 ODX5.70LGX.142WR, BLK

$34.99

$

Usually ships in 2-12 days

0

50

Simplicity 5025011X10SM

CAPSCREW, Hex Head, 5/16-18 X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

51

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

52

Simplicity 5025127SM

NUT, 5/16-18, Hex Serrated Flange (Small)

$3.49

$

In Stock, Qty 7

0

53

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

54

Simplicity 5403258DYP

PLATE, SKID - RED

$182.99

$

Usually ships in 2-12 days

0

55

Simplicity 5025013X10SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

56

Simplicity 5022609X1YP

1-1/2 MUFFLER CLAMP

Note: (Not Shown)

$9.49

$

Usually ships in 2-12 days

0

57

Simplicity 5050927X29YP

WIRE LOOM, 3/8" ID X 29.00 IN

Note: (Not Shown)

$5.99

$

Usually ships in 2-12 days

0

58

Simplicity 5021500SM

CLAMP, VINYL INSULATED, 1.00

$3.99

$

Usually ships in 2-12 days

0

59

Simplicity 5020602SM

COLLAR, Split, 1"

$22.99

$

In Stock, only 1 left!

0

60

Simplicity 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 2 left!

0

61

Simplicity 5103838YP

BEARING, 1" GRIP-IT, PILLOW BLOCK

Note: (Torque set screws to 60 in. lbs.)

$99.99

$

In Stock, only 1 left!

0

62

Simplicity 5101694YP

SPACER, 1.13 X 1.5 X .41, YZ

$11.99

$

Usually ships in 2-12 days

0

63

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0

64

Simplicity 5050927X34YP

WIRE LOOM, 3/8" ID X 34.00"

Note: (Not Shown)

$5.99

$

Usually ships in 2-12 days

0

65

Simplicity 841497

Filter-Air Cleaner Cartridge

$34.99

$

In Stock, Qty 20+

0

66

Simplicity 821136

Filter-Air Cleaner Cartridge

$33.99

$

In Stock, Qty 5

0

67

Simplicity 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0
