490-WU - Troy-Bilt Engine 490-WU Starter & Blower Housing Parts Diagram

Engine

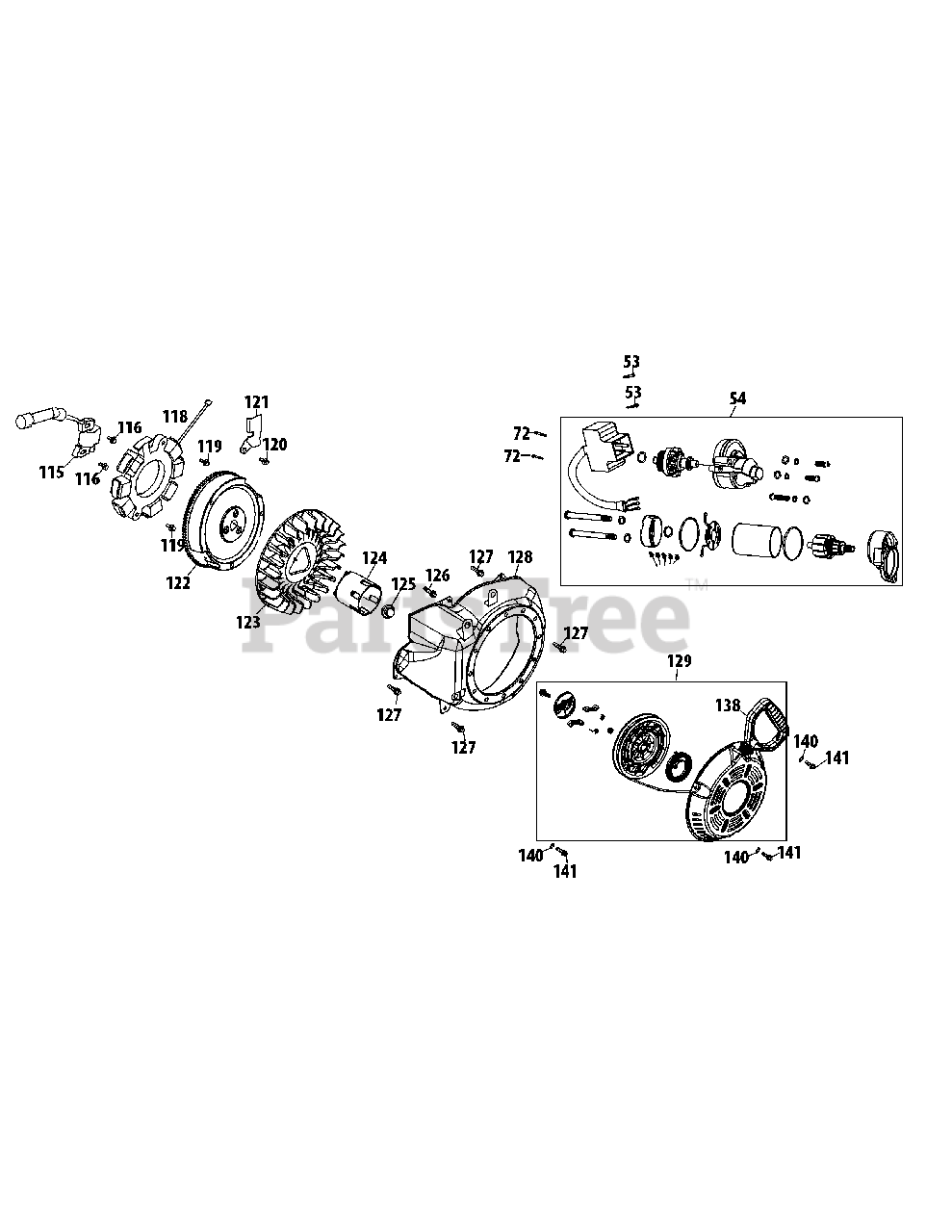

490-WU Starter & Blower Housing Parts Diagram

  • Title

53

Troy-Bilt 710-04965

Bolt M4×55

$6.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 951-11196

Electric Starter

$407.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 710-04967

Bolt M8×55

$6.49

$

Usually ships in 3-6 days

0

115

Troy-Bilt 751-11305A

Ignition Coil Assembly
(Superseded to 951-11305A)

$77.99

$

In Stock, only 1 left!

0

116

Troy-Bilt 710-05350

Ignition Coil Bolt

$3.99

$

Usually ships in 3-6 days

0

118

Troy-Bilt 951-12553

Alternator Assembly

$88.99

$

Usually ships in 3-6 days

0

119

Troy-Bilt 710-04969

Bolt M6×30

$4.49

$

In Stock, Qty 13

0

120

Troy-Bilt 710-04966

Bolt M6×8

$6.49

$

Usually ships in 3-6 days

0

121

Troy-Bilt 951-11186

Wire Plate

$4.99

$

Usually ships in 3-6 days

0

122

Troy-Bilt 951-12556

Flywheel

$203.99

$

Usually ships in 3-6 days

0

123

Troy-Bilt 951-11313

Cooling Fan
(Superseded to 951-11313A)

$50.99

$

Usually ships in 3-6 days

0

124

Troy-Bilt 951-11314

Starter Cup

$18.99

$

Usually ships in 3-6 days

0

125

Troy-Bilt 712-04220

Flange Nut

$6.49

$

Usually ships in 3-6 days

0

126

Troy-Bilt 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

127

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

128

Troy-Bilt 951-11211

Blower Housing

$86.99

$

Usually ships in 3-6 days

0

129

Troy-Bilt 951-14223

Recoil Starter Assembly

$88.99

$

In Stock, Qty 13

0

138

Troy-Bilt 731-05696

Starter Handle

$16.99

$

In Stock, only 3 left!

0

140

Troy-Bilt 736-04455

Gasket 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

141

Troy-Bilt 710-04974

Bolt M6×10

$6.99

$

In Stock, only 3 left!

0
