490-WU - MTD Engine 490-WU Cylinder Head Parts Diagram

Engine

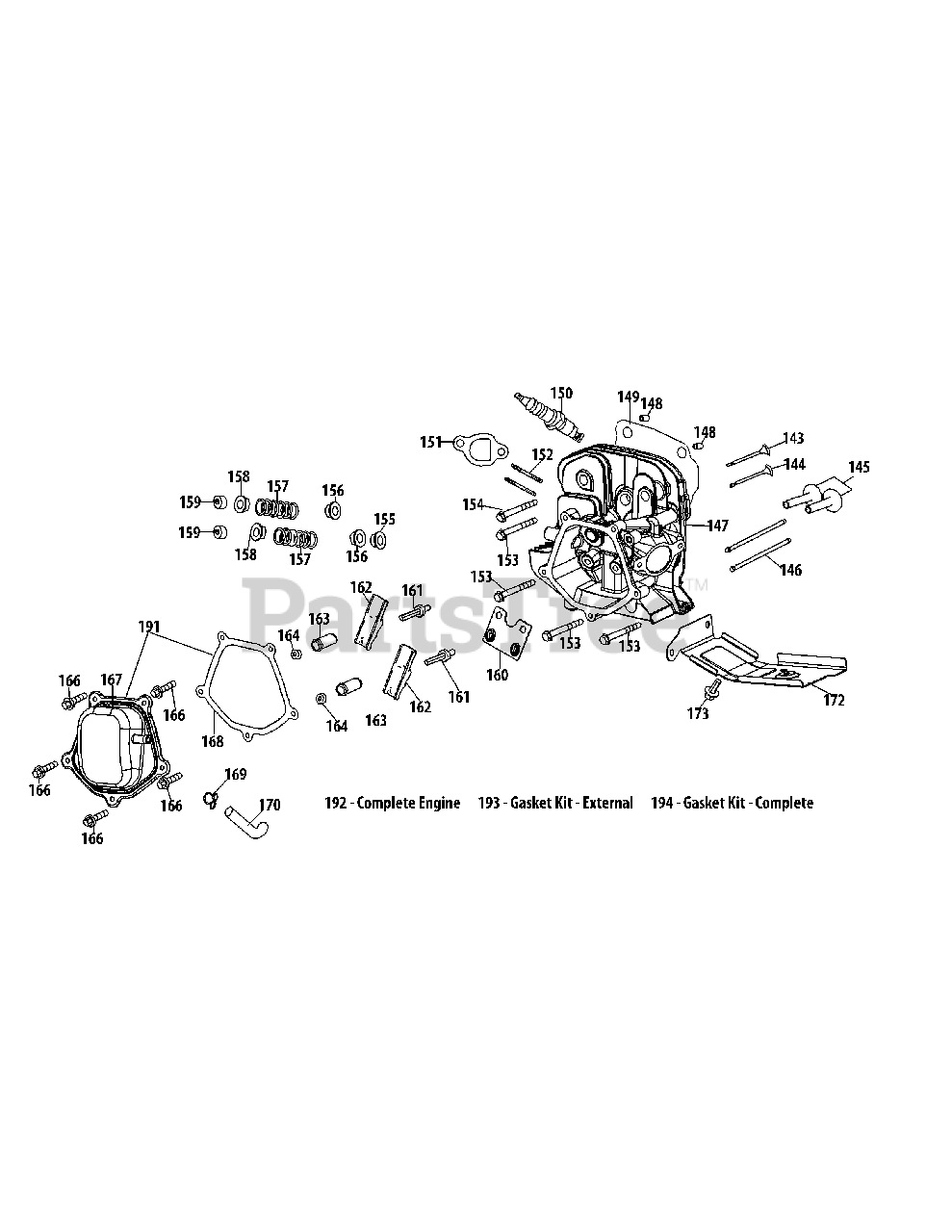

490-WU Cylinder Head Parts Diagram

  • Title

143

MTD 951-11337

Valve Kit

$50.99

$

Usually ships in 3-6 days

0

144

MTD 951-11337

Valve Kit

$50.99

$

Usually ships in 3-6 days

0

145

MTD 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

146

MTD 951-11335

Push Rod Kit

$24.99

$

In Stock, Qty 9

0

147

MTD 951-11361A

Cylinder Head Assembly

Note: (Incl.143,144,149,151-164,167,172-176)

$322.99

$

Usually ships in 3-6 days

0

147

MTD 951-12592

Cylinder Head Kit

Note: (Incl.149,153-155,166)

$55.99

$

Usually ships in 3-6 days

0

148

MTD 715-04097

Dowel Pin 12×20

$6.49

$

Usually ships in 3-6 days

0

149

MTD 951-12094

Gasket, Cylinder Head

$12.99

$

Usually ships in 3-6 days

0

150

MTD 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

151

MTD 951-11212

Exhaust Pipe Gasket
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

152

MTD 710-04964

Stud M8×48.5

$6.49

$

In Stock, only 1 left!

0

152

MTD 951-11207

Muffler Stud Assembly

$8.49

$

Usually ships in 3-6 days

0

153

MTD 710-06064

Bolt M10×1.25×87

$6.99

$

Usually ships in 3-6 days

0

154

MTD 710-06065

Bolt M10×1.25×65

$6.49

$

Usually ships in 3-6 days

0

155

MTD 951-11964

Valve Seal (Intake)
(Superseded to 951-11964A)

$11.99

$

In Stock, only 2 left!

0

156

MTD 951-12077

Valve Spring Retainer(Intake)
(Superseded to 951-12077A)

$3.99

$

In Stock, only 2 left!

0

157

MTD 951-12078

Valve Spring

$3.99

$

Usually ships in 3-6 days

0

158

MTD 951-12080

Valve Spring Retainer (Exhaust)

$4.49

$

In Stock, Qty 20+

0

159

MTD 951-12081

Exhaust Lash Cap
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

160

MTD 951-11965A

Push Rod Guide
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

161

MTD 710-04962

Bolt, Pivot

$6.49

$

In Stock, only 1 left!

0

162

MTD 951-11966

Rocker Arm

$8.49

$

In Stock, only 2 left!

0

163

MTD 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 4 left!

0

164

MTD 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

166

MTD 710-05054

Valve Cover Bolt

$6.49

$

In Stock, only 2 left!

0

167

MTD 951-11220

Valve Cover

$35.99

$

Usually ships in 3-6 days

0

168

MTD 951-11967

Valve Cover Gasket

$16.99

$

Usually ships in 3-6 days

0

169

MTD 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

170

MTD 951-11221

Breather Hose

$6.99

$

In Stock, only 1 left!

0

172

MTD 951-11317

Air Shield

$27.99

$

Usually ships in 3-6 days

0

173

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

191

MTD 951-11333

Valve Cover Kit

$40.99

$

Usually ships in 3-6 days

0

192

MTD 952Z490-WU

Complete Engine
(Superseded to 952Z690-WUA)

$

$

Not available

193

MTD 951-11363

Gasket Kit - External

Note: (Incl.112,151,167,174-176)

$34.99

$

Usually ships in 3-6 days

0

194

MTD 951-11362

Gasket Kit - Complete

Note: (Incl.85,92,98,112,114,151,167,174-176)

$63.99

$

Usually ships in 3-6 days

0
