490-SUC - Troy-Bilt Engine 490-SUC Starter & Blower Housing Parts Diagram

Engine

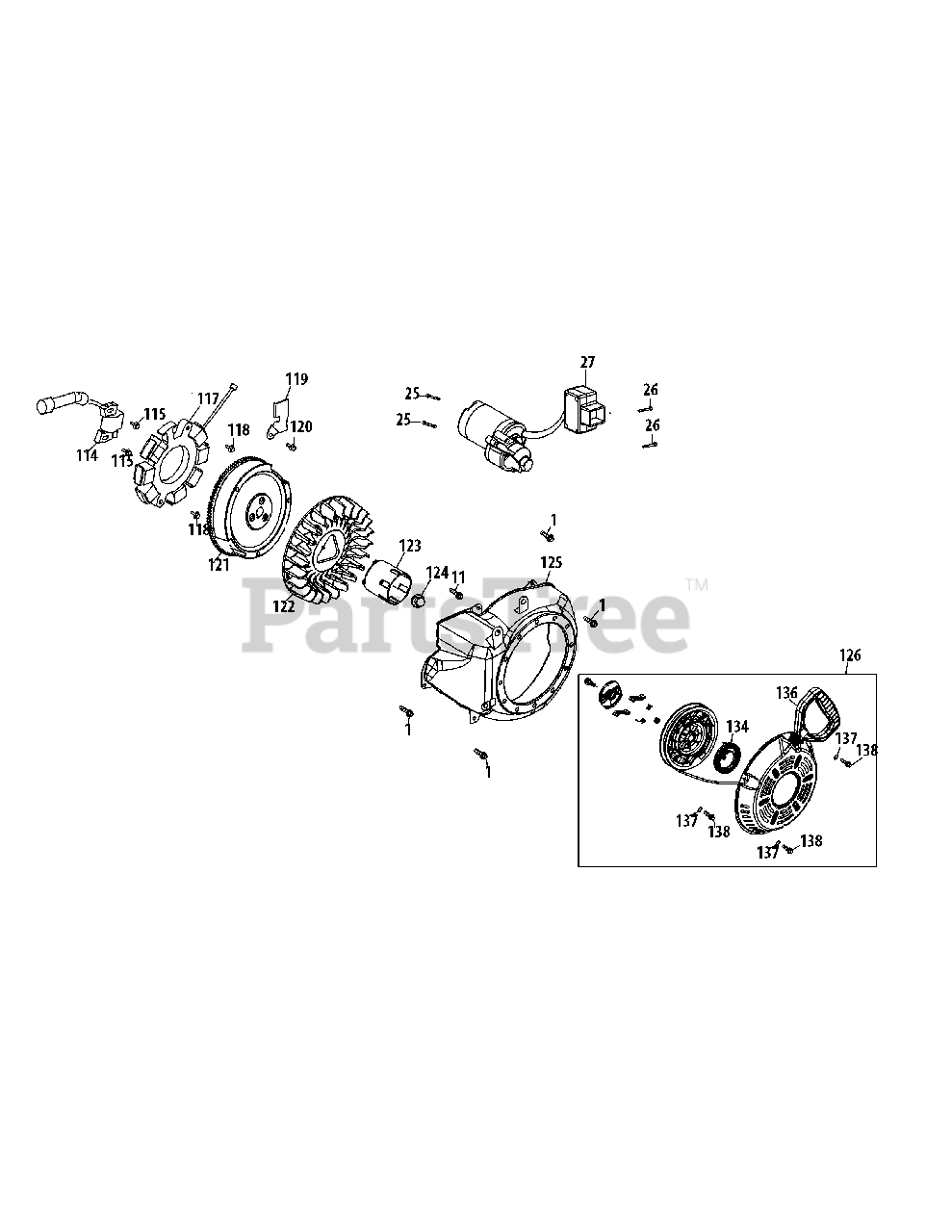

490-SUC Starter & Blower Housing Parts Diagram

  • Title
1

Troy-Bilt 710-04915

BOLT M6×12

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-04968

BOLT M6×16

$6.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 710-04967

BOLT M8×55

$6.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-04965

BOLT M4×55

$6.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 951-11196

ELECTRIC STARTER

$407.99

$

Usually ships in 3-6 days

0

114

Troy-Bilt 951-11305A

IGNITION COIL ASSEMBLY

$77.99

$

In Stock, only 1 left!

0

115

Troy-Bilt 710-05350

IGNITION COIL BOLT

$3.99

$

Usually ships in 3-6 days

0

117

Troy-Bilt 951-12553

ALTERNATOR ASSEMBLY

$88.99

$

Usually ships in 3-6 days

0

118

Troy-Bilt 710-04969

BOLT M6×30

$4.49

$

In Stock, Qty 13

0

119

Troy-Bilt 951-11186

WIRE PLATE

$4.99

$

Usually ships in 3-6 days

0

120

Troy-Bilt 710-04966

BOLT M6×8

$6.49

$

Usually ships in 3-6 days

0

121

$203.99

$

Usually ships in 3-6 days

0

122

Troy-Bilt 951-11313

COOLING FAN
(Superseded to 951-11313A)

$50.99

$

Usually ships in 3-6 days

0

123

Troy-Bilt 951-11314

STARTER CUP

$18.99

$

Usually ships in 3-6 days

0

124

Troy-Bilt 712-04220

NUT M16×1.5

$6.49

$

Usually ships in 3-6 days

0

125

Troy-Bilt 951-11211

BLOWER HOUSING

$86.99

$

Usually ships in 3-6 days

0

126

Troy-Bilt 951-14223

RECOIL STARTER

$88.99

$

In Stock, Qty 13

0

134

Troy-Bilt 932-05127

RECOIL SPRING

$11.99

$

In Stock, only 1 left!

0

135

Troy-Bilt 908-05021

BLOWER HOUSING

$68.99

$

In Stock, Qty 5

0

136

Troy-Bilt 731-05696

STARTER HANDLE

$16.99

$

In Stock, only 3 left!

0

137

Troy-Bilt 736-04455

GASKET 06
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

138

Troy-Bilt 710-04974

BOLT M6×10

$6.99

$

In Stock, only 3 left!

0
