490-SUA - MTD Engine 490-SUA Crankcase Parts Diagram

Engine

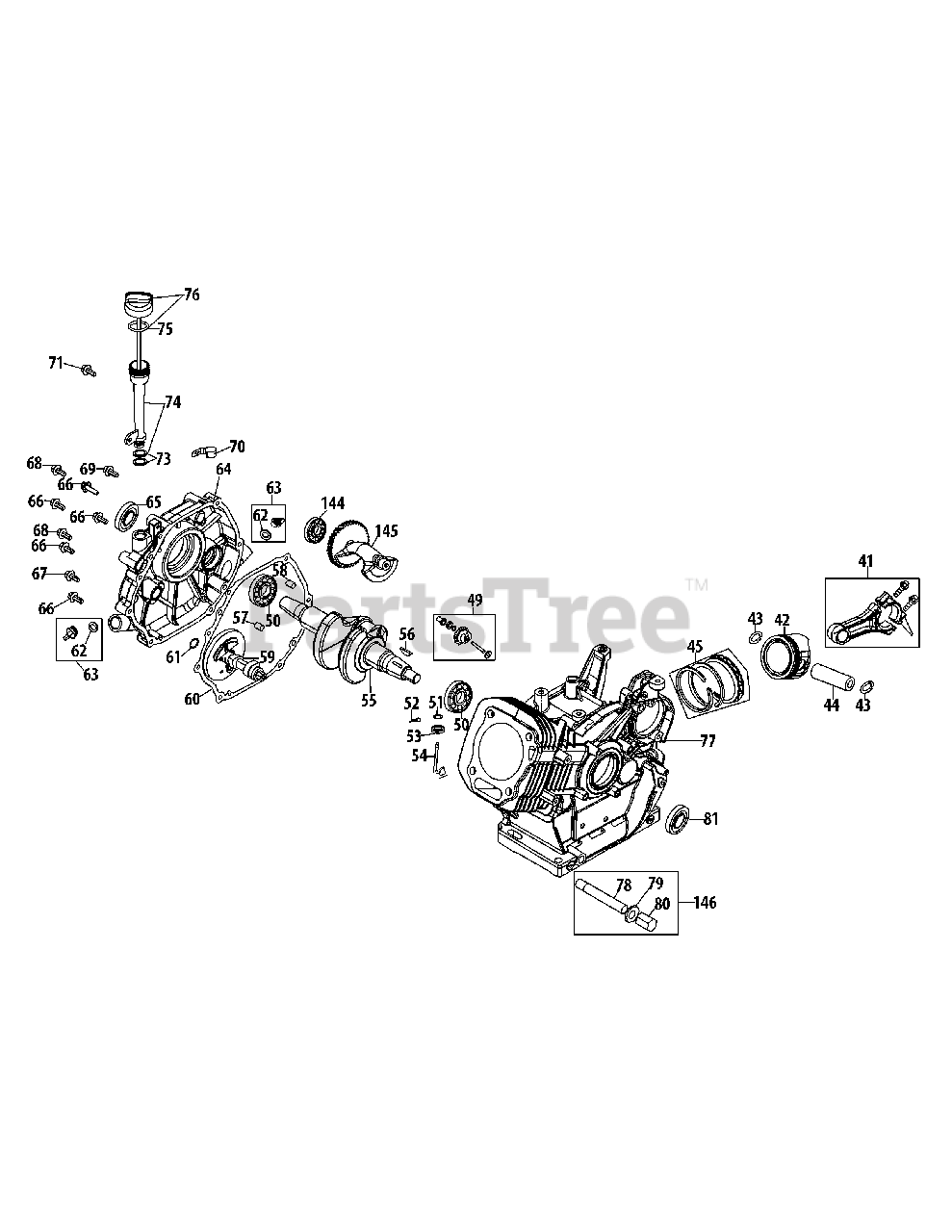

490-SUA Crankcase Parts Diagram

  • Title

41

MTD 951-11951

Connecting Rod Assembly

$77.99

$

Usually ships in 3-6 days

0

42

MTD 951-12092

Piston

$34.99

$

Usually ships in 3-6 days

0

43

MTD 951-11953

Piston Pin Snap Ring
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 5

0

44

MTD 951-11954

Piston Pin
(Superseded to 951-11954A)

$8.49

$

Usually ships in 3-6 days

0

45

MTD 951-12593

Piston Ring Set

$27.99

$

Usually ships in 3-6 days

0

49

MTD 951-11956

Governor Gear/Shaft Assembly

$41.99

$

Usually ships in 3-6 days

0

50

MTD 951-11373

Radial Ball Bearing, 6202-P6

$34.99

$

Usually ships in 3-6 days

0

51

MTD 736-04453

Washer 8×20×0.8

$6.49

$

Usually ships in 3-6 days

0

52

MTD 714-04077

Cotter Pin

$6.49

$

In Stock, only 1 left!

0

53

MTD 951-11958

Governor Seal

$4.49

$

Usually ships in 3-6 days

0

54

MTD 951-11365

Governor Arm Shaft

$5.99

$

Usually ships in 3-6 days

0

55

MTD 951-11358

Crankshaft Kit

Note: (Incl.50,55,56,65,81)

$233.99

$

Usually ships in 3-6 days

0

56

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

57

MTD 715-04102

Dowel Pin 9×12

$5.99

$

Usually ships in 3-6 days

0

58

MTD 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

59

MTD 951-11959

Camshaft Assy.
(Superseded to 951-11959B)

$68.99

$

Usually ships in 3-6 days

0

60

MTD 951-11376

Crankcase Cover Gasket

$18.99

$

Usually ships in 3-6 days

0

61

MTD 736-04476

Washer 16×24×0.5

$5.99

$

Usually ships in 3-6 days

0

62

MTD 951-11960

O-Ring 16×3

$4.49

$

In Stock, only 1 left!

0

63

MTD 951-11345

Oil Filler Plug Assembly

$10.99

$

Usually ships in 3-6 days

0

64

MTD 951-11340

Crankcase Cover Kit
(Superseded to 951-11340A)

Note: (Incl.50,60,61,64-68)

$75.99

$

Usually ships in 3-6 days

0

65

MTD 951-11375

Oil Seal, 30×46×8
(Superseded to 951-11375A)

$15.99

$

Usually ships in 3-6 days

0

66

MTD 710-04971

Bolt M8×38
(Superseded to 710-06061)

$6.49

$

Usually ships in 3-6 days

0

67

MTD 710-04972

Bolt M8×45
(Superseded to 710-06062)

$5.99

$

Usually ships in 3-6 days

0

68

MTD 710-05052

Bolt M8×35
(Superseded to 710-06063)

$6.49

$

Usually ships in 3-6 days

0

69

MTD 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

70

MTD 951-11320

Dipstick Clamp

$7.99

$

Usually ships in 3-6 days

0

71

MTD 710-04966

Bolt M6×8

$6.49

$

Usually ships in 3-6 days

0

73

MTD 951-11381

Oil Fill Tube O-Ring

$5.49

$

In Stock, only 1 left!

0

74

MTD 951-11972

Oil Fill Tube Assembly
(Superseded to 951-12073)

$11.99

$

Usually ships in 3-6 days

0

75

MTD 951-11904

Dipstick O-Ring

$4.49

$

In Stock, only 1 left!

0

76

MTD 951-11971A

Dipstick Assembly

$31.99

$

Usually ships in 3-6 days

0

77

MTD 951-11359A

Crankcase Kit

Note: (Incl.50,53,77,81)

$396.99

$

Usually ships in 3-6 days

0

78

MTD 951-11350

Oil Drain Pipe Assy.

$9.49

$

Usually ships in 3-6 days

0

79

MTD 736-04440

Washer 10×16×1.5
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

80

MTD 710-04906

Oil Drain Plug

$6.99

$

In Stock, only 3 left!

0

81

MTD 951-11499

Oil Seal 35×52×7
(Superseded to 951-11499A)

$13.99

$

In Stock, only 2 left!

0

144

MTD 951-11969

Bearing, 6207-P6

$32.99

$

Usually ships in 3-6 days

0

145

MTD 951-12095

Balance Shaft Assembly

$120.99

$

Usually ships in 3-6 days

0

146

MTD 951-10641

Oil Drain Assembly

$12.99

$

In Stock, only 2 left!

0

MTD 951-11362

Gasket Kit - Complete

Note: Not shown (Incl.53,60,65,79,81,106,108,125,132-134)

$63.99

$

Usually ships in 3-6 days

0

MTD 951-11360A

Short Block Assembly

Note: Not shown (Incl.41-45,49-61,63-68,77-81,102,105,106,108,111,112,125,132,133,143)

$

$

Not available

MTD 952Z490-SUA

Complete Engine
(Superseded to 952Z690-WUA)

Note: Not shown

$

$

Not available
