490-SU - Troy-Bilt Engine (2010 & After) 490-SU-10 Crankcase Parts Diagram

Engine

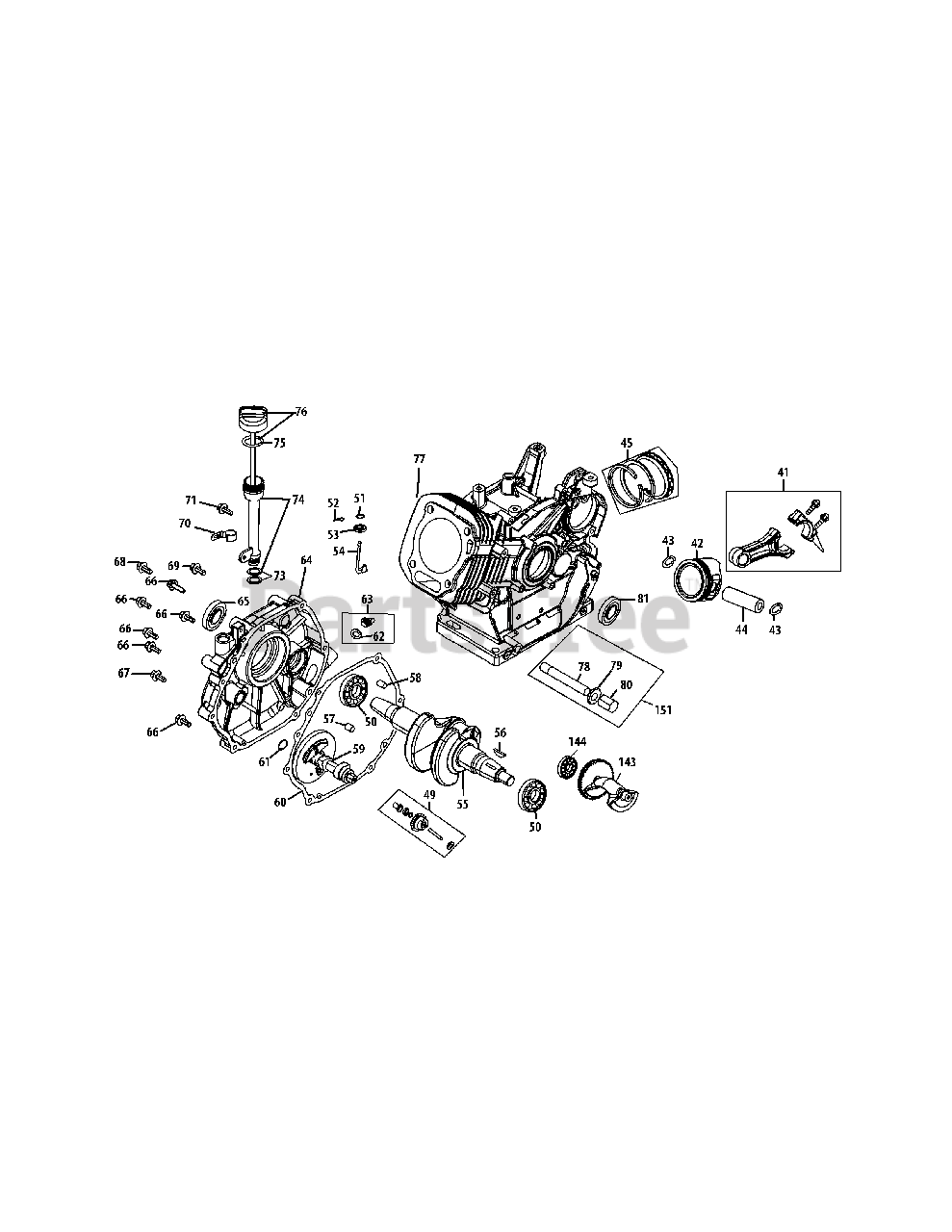

490-SU-10 Crankcase Parts Diagram

  • Title
41

Troy-Bilt 951-11951

Connecting Rod Assembly

$77.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 751-12092

Piston
(Superseded to 951-12092)

$34.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 951-11953

Piston Pin Snap Ring
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 5

0

44

Troy-Bilt 951-11954

Piston Pin
(Superseded to 951-11954A)

$8.49

$

Usually ships in 3-6 days

0

45

Troy-Bilt 751-12093

Piston Ring Set Kit
(Superseded to 951-12093)

$

$

Not available

49

Troy-Bilt 951-11956

Governor Gear/Shaft Assembly

$41.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 951-11957

Radial Ball Bearing, 6202-P6
(Superseded to 951-11373)

$34.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 736-04453

Washer 20Od X 8Id X 0.8

$6.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 714-04077

Cotter Pin

$6.49

$

In Stock, only 1 left!

0

53

Troy-Bilt 951-11958

Governor Seal

$4.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 951-11365

Governor Arm Shaft

$5.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 951-11358

Crankshaft Kit

Note: (Incl. Ref No. 55,56,60,65 & 81)

$233.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 715-04102

Dowel Pin 9×12

$5.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

59

Troy-Bilt 951-11959

Camshaft Assy.
(Superseded to 951-11959B)

$68.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 951-11376

Crankcase Cover Gasket

$18.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 736-04476

Washer 16×24×0.5

$5.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 951-11960

O-Ring 16×3

$4.49

$

In Stock, only 1 left!

0

63

Troy-Bilt 951-11345

Oil Fill Plug Assembly

$10.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 951-11340

Crankcase Cover Kit
(Superseded to 951-11340A)

Note: (Incl. Ref No. 50,60,61,64-68)

$75.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 951-11375

Oil Seal, 30×46×8
(Superseded to 951-11375A)

$15.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 710-04971

Bolt M8×38
(Superseded to 710-06061)

$6.49

$

Usually ships in 3-6 days

0

67

Troy-Bilt 710-04972

Bolt M8×45
(Superseded to 710-06062)

$5.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 710-05052

Bolt M8×35
(Superseded to 710-06063)

$6.49

$

Usually ships in 3-6 days

0

69

Troy-Bilt 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

70

Troy-Bilt 951-11320

Oil Tube Support Bracket

$7.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 710-04966

Bolt M6×8

$6.49

$

Usually ships in 3-6 days

0

73

Troy-Bilt 951-11903

Oil Fill Tube O-Ring
(Superseded to 951-11381)

$5.49

$

In Stock, only 1 left!

0

74

Troy-Bilt 951-11972

Oil Fill Tube Assembly
(Superseded to 951-12073)

$11.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 951-11904

Dipstick O-Ring

$4.49

$

In Stock, only 1 left!

0

76

Troy-Bilt 751-11971

Dipstick Assembly
(Superseded to 951-11971A)

$31.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 951-11359

Crankcase Kit
(Superseded to 951-11359A)

Note: (Incl. Ref No. 50,53,77 & 81)

$396.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 951-11350

Oil Drain Pipe Assy.

$9.49

$

Usually ships in 3-6 days

0

79

Troy-Bilt 736-04440

Washer 10×16×1.5
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

80

Troy-Bilt 710-04906

Oil Drain Plug

$6.99

$

In Stock, only 3 left!

0

81

Troy-Bilt 951-11499

Oil Seal 35×52×7
(Superseded to 951-11499A)

$13.99

$

In Stock, only 2 left!

0

143

Troy-Bilt 751-12095

Balance Gear Assembly
(Superseded to 951-12095)

$120.99

$

Usually ships in 3-6 days

0

144

Troy-Bilt 951-11969

Bearing, 6207-P6

$32.99

$

Usually ships in 3-6 days

0

151

Troy-Bilt 951-10641

Oil Drain Assembly

$12.99

$

In Stock, only 2 left!

0

Troy-Bilt 951-11362

Gasket Kit - Complete

Note: (Incl. Ref No. 53,60,65,79,81,106,108,125,132-134) Not shown

$63.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11363

Gasket Kit - External

Note: (Incl. Ref No. 79,108,125,132-134) Not shown

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11360

Short Block Assembly

Note: (Incl. Ref No. 41-45,49-61,64-68,77-81,102,105,106,108,111,112,125,132 & 133) Not shown

$

$

Not available

Troy-Bilt 952Z490-SU-10

Complete Engine
(Superseded to 952Z490-SUC)

Note: Not shown

$

$

Not available
